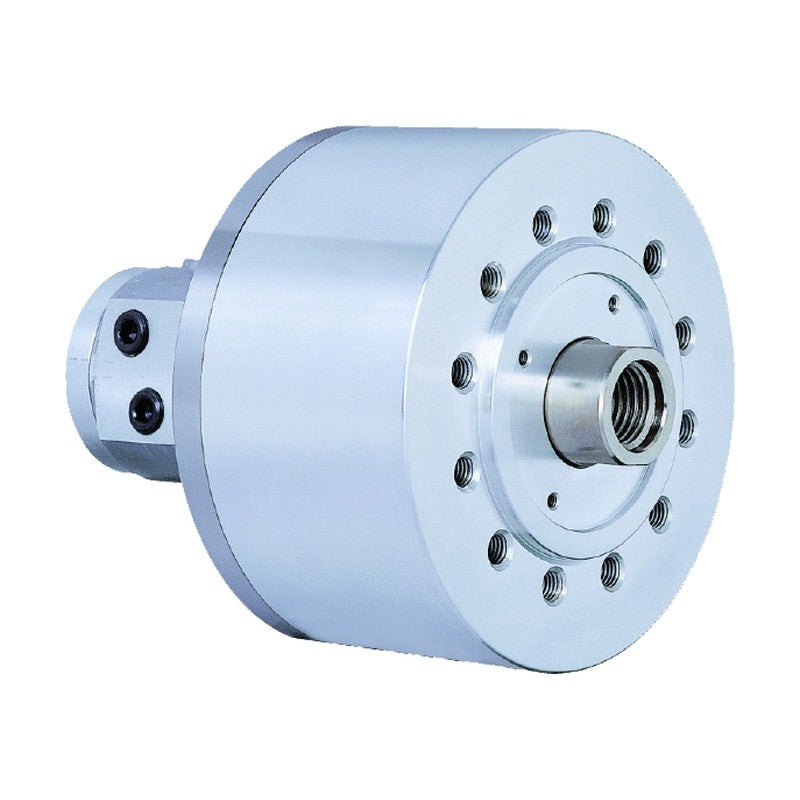

Samchully Standard Closed-Center Hydraulic Cylinder Y-R

Samchully Standard Closed-Center Hydraulic Cylinder Y-R

Closed-center hydraulic cylinder with proximity bracket.

Key features

  • Built-in lock and relief valves prevent damage from excessive pressure
  • Maintains pull force during power loss

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 4.0(40.8)
Total Leakage (ℓ/min) 0.8
Y-0715R Piston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 44 | Piston Surface Area (Pull) (cm²): 37 | Piston Force (Push) (kN (kgf)): 16.6(1693) | Piston Force (Pull) (kN (kgf)): 13.9(1417) | Max. Speed (rpm): 6000 | Weight (kg): 4
Y-1020R Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 86 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 32.0(3264) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.1
Y-1225R Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 122 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 10
Y-1530R Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 176 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 66.0(6732) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 13.5
Y-2035R Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 314 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 22
Rotary CylindersSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Standard Closed-Center Hydraulic Cylinder Y-R

Brand Samchully·Rotary Cylinders

Available part numbers (5)

Y-0715R, Y-1020R, Y-1225R, Y-1530R, Y-2035R

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Y-0715RPiston Stroke (mm): 15 | Piston Surface Area (Push) (cm²): 44 | Piston Surface Area (Pull) (cm²): 37 | Piston Force (Push) (kN (kgf)): 16.6(1693) | Piston Force (Pull) (kN (kgf)): 13.9(1417) | Max. Speed (rpm): 6000 | Weight (kg): 4
Y-1020RPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 86 | Piston Surface Area (Pull) (cm²): 79 | Piston Force (Push) (kN (kgf)): 32.0(3264) | Piston Force (Pull) (kN (kgf)): 29(2957) | Max. Speed (rpm): 6000 | Weight (kg): 7.1
Y-1225RPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 122 | Piston Surface Area (Pull) (cm²): 113 | Piston Force (Push) (kN (kgf)): 45.0(4589) | Piston Force (Pull) (kN (kgf)): 42(4283) | Max. Speed (rpm): 6000 | Weight (kg): 10
Y-1530RPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 176 | Piston Surface Area (Pull) (cm²): 160 | Piston Force (Push) (kN (kgf)): 66.0(6732) | Piston Force (Pull) (kN (kgf)): 60(6118) | Max. Speed (rpm): 5500 | Weight (kg): 13.5
Y-2035RPiston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 314 | Piston Surface Area (Pull) (cm²): 290 | Piston Force (Push) (kN (kgf)): 117.0(11934) | Piston Force (Pull) (kN (kgf)): 108(11013) | Max. Speed (rpm): 5500 | Weight (kg): 22
