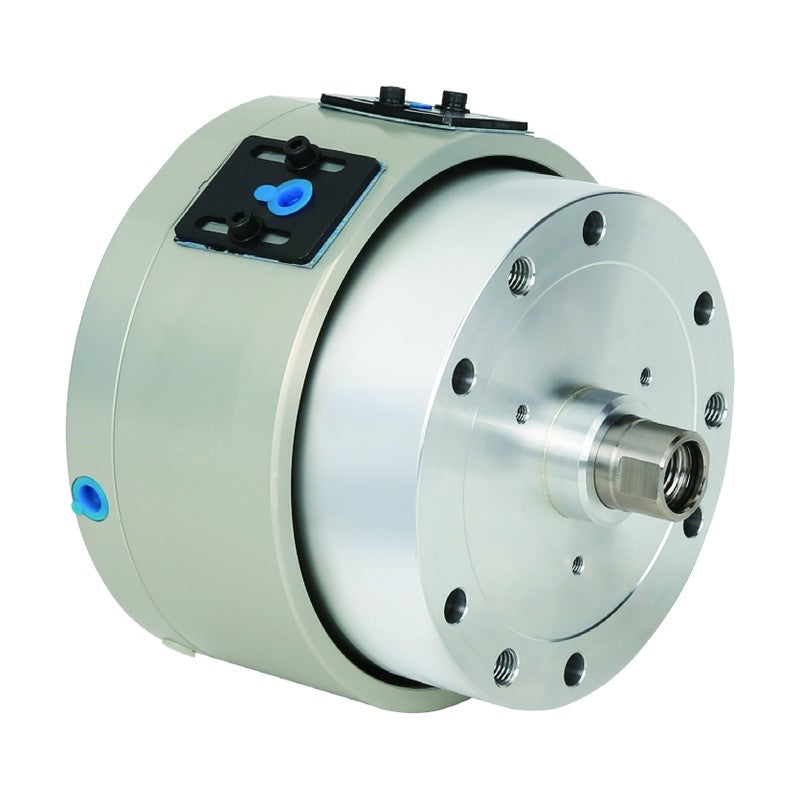

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder with Rotary Joint YS

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder with Rotary Joint YS

Ultra-compact closed-center hydraulic cylinder with proximity bracket and built-in rotary joint.

Key features

  • Built-in rotary joint
  • Built-in lock and relief valves prevent damage from excessive pressure
  • Maintains pull force during power loss

Specifications

Max. Speed (rpm) 6000
Total Leakage (ℓ/min) 1.2
YS-11020RA Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 87.6 | Piston Surface Area (Pull) (cm²): 84 | Piston Force (Push) (kN (kgf)): 28(2855) | Piston Force (Pull) (kN (kgf)): 27(2753) | Max. Operating Pressure (MPa (kgf/cm²)): 3.5(35.7) | Weight (kg): 8.5
YS-12021RA Piston Stroke (mm): 21 | Piston Surface Area (Push) (cm²): 105.7 | Piston Surface Area (Pull) (cm²): 102 | Piston Force (Push) (kN (kgf)): 39(3977) | Piston Force (Pull) (kN (kgf)): 38(3875) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Weight (kg): 10.2
YS-13030RA Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 131.8 | Piston Surface Area (Pull) (cm²): 122.5 | Piston Force (Push) (kN (kgf)): 47(4793) | Piston Force (Pull) (kN (kgf)): 45(4589) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Weight (kg): 10.3
YS-11020RC Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 87.6 | Piston Surface Area (Pull) (cm²): 84 | Piston Force (Push) (kN (kgf)): 28(2855) | Piston Force (Pull) (kN (kgf)): 27(2753) | Max. Operating Pressure (MPa (kgf/cm²)): 3.5(35.7) | Weight (kg): 8.5
Rotary CylindersSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder with Rotary Joint YS

Brand Samchully·Rotary Cylinders

Available part numbers (4)

YS-11020RA, YS-12021RA, YS-13030RA, YS-11020RC

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YS-11020RAPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 87.6 | Piston Surface Area (Pull) (cm²): 84 | Piston Force (Push) (kN (kgf)): 28(2855) | Piston Force (Pull) (kN (kgf)): 27(2753) | Max. Operating Pressure (MPa (kgf/cm²)): 3.5(35.7) | Weight (kg): 8.5
YS-12021RAPiston Stroke (mm): 21 | Piston Surface Area (Push) (cm²): 105.7 | Piston Surface Area (Pull) (cm²): 102 | Piston Force (Push) (kN (kgf)): 39(3977) | Piston Force (Pull) (kN (kgf)): 38(3875) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Weight (kg): 10.2
YS-13030RAPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 131.8 | Piston Surface Area (Pull) (cm²): 122.5 | Piston Force (Push) (kN (kgf)): 47(4793) | Piston Force (Pull) (kN (kgf)): 45(4589) | Max. Operating Pressure (MPa (kgf/cm²)): 4.0(40.8) | Weight (kg): 10.3
YS-11020RCPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 87.6 | Piston Surface Area (Pull) (cm²): 84 | Piston Force (Push) (kN (kgf)): 28(2855) | Piston Force (Pull) (kN (kgf)): 27(2753) | Max. Operating Pressure (MPa (kgf/cm²)): 3.5(35.7) | Weight (kg): 8.5
