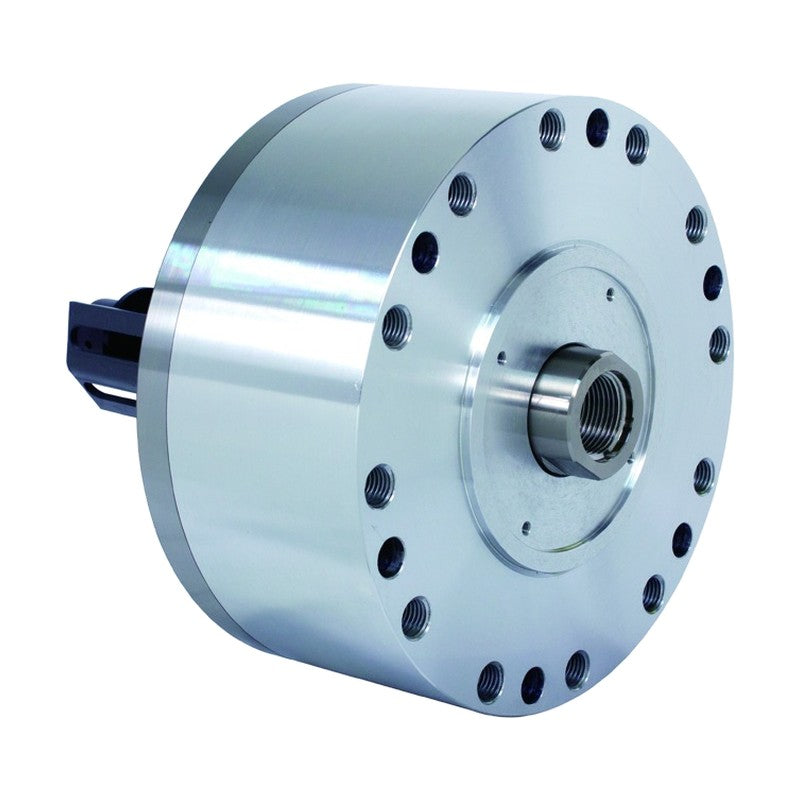

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE-UN

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE-UN

Ultra-compact closed-center hydraulic cylinder with proximity bracket, UN version.

Key features

  • Built-in lock valve maintains thrust on power failure or sudden pressure drop
  • Built-in relief valve prevents overpressure and cylinder damage

Specifications

Max. Operating Pressure (MPa (kgf/cm²)) 4.0 (40.8)
YH-10120RE-UN Piston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29 (2960) | Piston Force (Pull) (kN (kgf)): 27 (2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
YH-12125RE-UN Piston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42 (4326) | Piston Force (Pull) (kN (kgf)): 39 (4022) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
YH-12140RE-UN Piston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42 (4326) | Piston Force (Pull) (kN (kgf)): 39 (4022) | Max. Speed (rpm): 6000 | Weight (kg): 11
YH-15130RE-UN Piston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63 (6375) | Piston Force (Pull) (kN (kgf)): 57 (5843) | Max. Speed (rpm): 5500 | Weight (kg): 14
YH-20135RE-UN Piston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114 (11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
Rotary CylindersSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Ultra-Compact Closed-Center Hydraulic Cylinder YH-RE-UN

Brand Samchully·Rotary Cylinders

Available part numbers (5)

YH-10120RE-UN, YH-12125RE-UN, YH-12140RE-UN, YH-15130RE-UN, YH-20135RE-UN

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YH-10120RE-UNPiston Stroke (mm): 20 | Piston Surface Area (Push) (cm²): 78 | Piston Surface Area (Pull) (cm²): 73 | Piston Force (Push) (kN (kgf)): 29 (2960) | Piston Force (Pull) (kN (kgf)): 27 (2770) | Max. Speed (rpm): 6000 | Weight (kg): 7.6
YH-12125RE-UNPiston Stroke (mm): 25 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42 (4326) | Piston Force (Pull) (kN (kgf)): 39 (4022) | Max. Speed (rpm): 6000 | Weight (kg): 10.5
YH-12140RE-UNPiston Stroke (mm): 40 | Piston Surface Area (Push) (cm²): 114 | Piston Surface Area (Pull) (cm²): 106 | Piston Force (Push) (kN (kgf)): 42 (4326) | Piston Force (Pull) (kN (kgf)): 39 (4022) | Max. Speed (rpm): 6000 | Weight (kg): 11
YH-15130RE-UNPiston Stroke (mm): 30 | Piston Surface Area (Push) (cm²): 168 | Piston Surface Area (Pull) (cm²): 154 | Piston Force (Push) (kN (kgf)): 63 (6375) | Piston Force (Pull) (kN (kgf)): 57 (5843) | Max. Speed (rpm): 5500 | Weight (kg): 14
YH-20135RE-UNPiston Stroke (mm): 35 | Piston Surface Area (Push) (cm²): 305 | Piston Surface Area (Pull) (cm²): 283 | Piston Force (Push) (kN (kgf)): 114 (11573) | Piston Force (Pull) (kN (kgf)): 105(10738) | Max. Speed (rpm): 5500 | Weight (kg): 22.5
