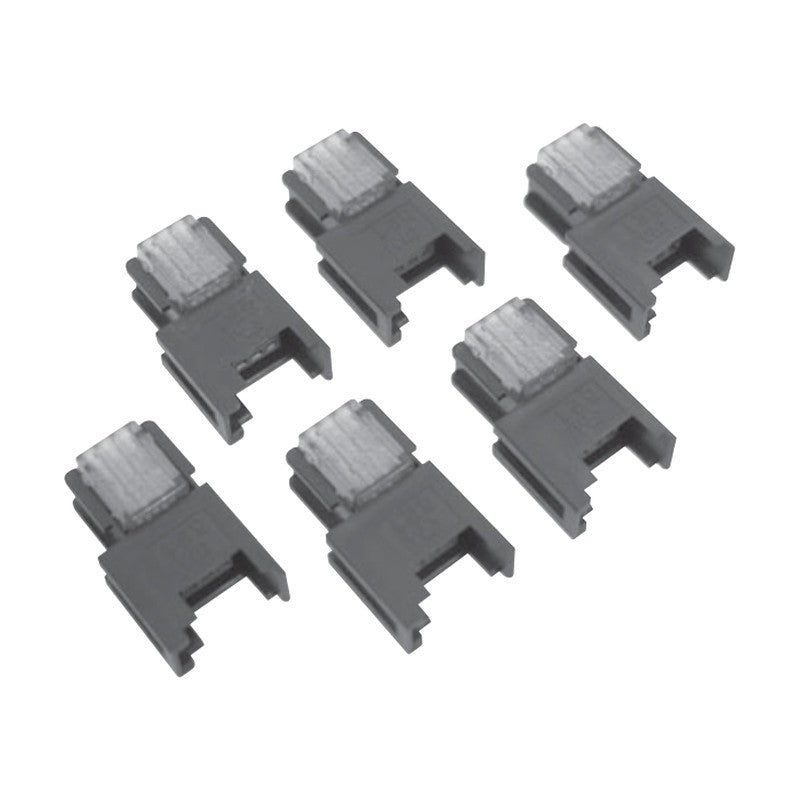

Samwon ACT 37303/37304 Mini-Clamp Wire Mount Sockets for Cable Relay (e-con)

Samwon ACT 37303/37304 Mini-Clamp Wire Mount Sockets for Cable Relay (e-con)

3- and 4-pin mini-clamp wire mount sockets (e-con standard) that mate with 371xx plugs for cable-to-cable relay connection.

Key features

  • Mates with 371xx plugs for cable-to-cable relay connection
  • No special tools or wire preparation; insert wires and press with pliers
  • Female connector relay reduces part count
  • Wide applicable wire range. 2 mm contact pitch; industry-standard e-con connector
  • Transparent cover shows wire insertion

Specifications

Contact Pitch 2 mm
Dimensions 3-pin: A 13.8 x B 11.5 mm; 4-pin: A 15.8 x B 13.5 mm
37303-3101-000FL Pins: 3 | Cover: Red | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 0.8-1.0 mm
37303-3122-000FL Pins: 3 | Cover: Yellow | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.0-1.2 mm
37303-3163-000FL Pins: 3 | Cover: Orange | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.2-1.6 mm
37303-2124-000FL Pins: 3 | Cover: Green | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.0-1.2 mm
37303-2165-000FL Pins: 3 | Cover: Blue | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.2-1.6 mm
37303-2206-000FL Pins: 3 | Cover: Gray | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.6-2.0 mm
37304-3101-000FL Pins: 4 | Cover: Red | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 0.8-1.0 mm
37304-3122-000FL Pins: 4 | Cover: Yellow | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.0-1.2 mm
37304-3163-000FL Pins: 4 | Cover: Orange | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.2-1.6 mm
37304-2124-000FL Pins: 4 | Cover: Green | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.0-1.2 mm
37304-2165-000FL Pins: 4 | Cover: Blue | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.2-1.6 mm
37304-2206-000FL Pins: 4 | Cover: Gray | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.6-2.0 mm
ConnectorsSamwon ACT
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT 37303/37304 Mini-Clamp Wire Mount Sockets for Cable Relay (e-con)

Brand Samwon ACT·Connectors

Available part numbers (12)

37303-3101-000FL, 37303-3122-000FL, 37303-3163-000FL, 37303-2124-000FL, 37303-2165-000FL, 37303-2206-000FL, 37304-3101-000FL, 37304-3122-000FL, 37304-3163-000FL, 37304-2124-000FL + 2 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
37303-3101-000FLPins: 3 | Cover: Red | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 0.8-1.0 mm
37303-3122-000FLPins: 3 | Cover: Yellow | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.0-1.2 mm
37303-3163-000FLPins: 3 | Cover: Orange | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.2-1.6 mm
37303-2124-000FLPins: 3 | Cover: Green | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.0-1.2 mm
37303-2165-000FLPins: 3 | Cover: Blue | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.2-1.6 mm
37303-2206-000FLPins: 3 | Cover: Gray | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.6-2.0 mm
37304-3101-000FLPins: 4 | Cover: Red | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 0.8-1.0 mm
37304-3122-000FLPins: 4 | Cover: Yellow | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.0-1.2 mm
37304-3163-000FLPins: 4 | Cover: Orange | Wire: AWG 24-26, 0.14-under 0.3 mm2 | Finished OD: 1.2-1.6 mm
37304-2124-000FLPins: 4 | Cover: Green | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.0-1.2 mm
37304-2165-000FLPins: 4 | Cover: Blue | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.2-1.6 mm
37304-2206-000FLPins: 4 | Cover: Gray | Wire: AWG 20-22, 0.3-0.5 mm2 | Finished OD: 1.6-2.0 mm
