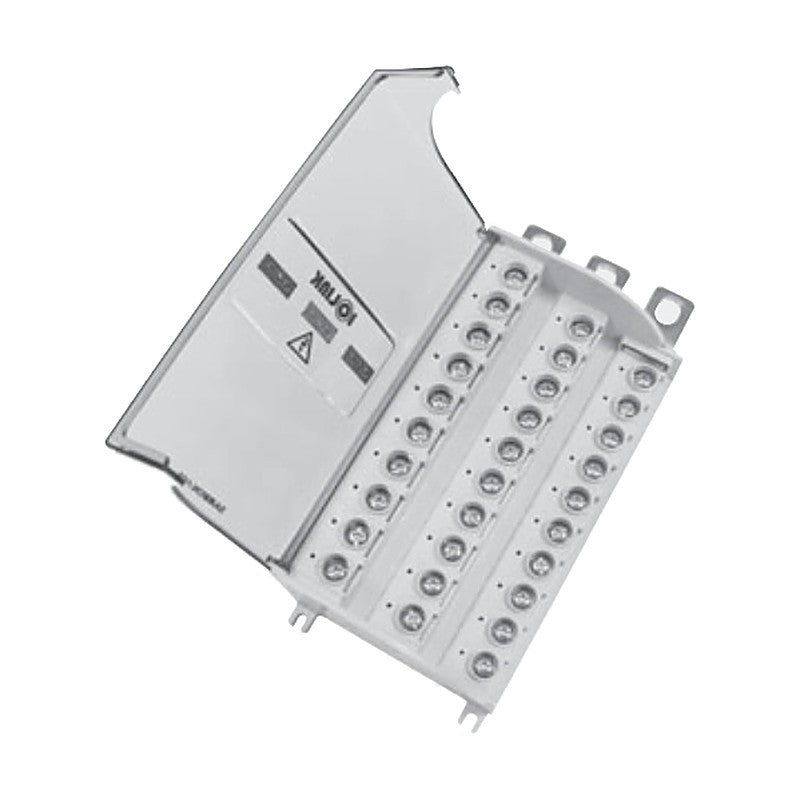

Samwon ACT BPD Series Breaker Direct-Connection Busbar Power Distribution Blocks

Samwon ACT BPD Series Breaker Direct-Connection Busbar Power Distribution Blocks

Case-integrated power distribution blocks for direct connection to 225/250 AF molded case circuit breakers in busbar environments.

Key features

  • Replaces exposed busbars with a case-integrated distribution block
  • Only terminal bolt heads exposed, reducing short-circuit and shock risk
  • Same width as 225/250 AF breakers for direct connection
  • Hinged PC cover, UL94V flame-retardant case and anti-slip V-groove terminals with vibration-resistant wave washers
  • Stepped terminals allow double wiring
  • Built-in color code plates; conforms to JIS C 8201-7-1

Specifications

Rated Voltage 600 V
Rated Current 250 A
Applicable Frame 250 AF (LSIS standard)
Pitch 35 mm (250 A)
Secondary Wire 4-16 mm2 (total 250 A max.)
Branch Terminal Screw M5 x 10L
Screw Torque 2.2 N.m
Mounting Screw M4
Dimensions 105.0 x 195.5 (226.5 incl. busbar) mm (W x D)
Withstand Voltage 2,500 V, 1 min
Temperature Rise Conductor temperature rise 40 C max.
Operating Temperature -25 to +55 C (no condensation)
BPD35-M5R Cable outlet direction: Right
BPD35-M5L Cable outlet direction: Left
Power Distribution BlocksSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT BPD Series Breaker Direct-Connection Busbar Power Distribution Blocks

Brand Samwon ACT·Power Distribution Blocks

Available part numbers (2)

BPD35-M5R, BPD35-M5L

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BPD35-M5RCable outlet direction: Right
BPD35-M5LCable outlet direction: Left
