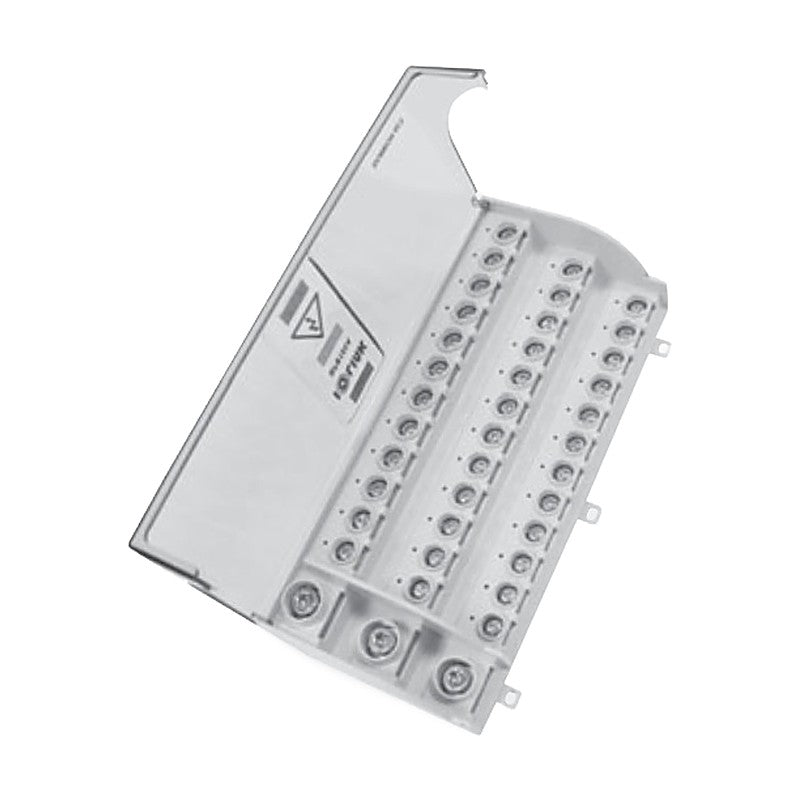

Samwon ACT BPS Series Busbar-Type Wiring Power Distribution Blocks

Samwon ACT BPS Series Busbar-Type Wiring Power Distribution Blocks

Case-integrated busbar-type power distribution blocks that split one 100 A or 150 A input into 4, 8 or 12 M5 branch outputs.

Key features

  • Case-integrated design exposes only the bolt heads, reducing short-circuit and shock risk. 4, 8 and 12 branch versions to suit equipment requirements
  • Mounts on DIN rail or directly on the panel
  • Input terminal can be wired from the front or side (BPS150A)
  • Built-in color code plates (red, black, blue, green, brown, gray); white and yellow sold separately
  • Conforms to JIS C 8201-7-1

Specifications

Rated Voltage 600 V
Secondary Wire 4-16 mm2 (total within primary rating)
Material Case: Modified PPO; Cover: Polycarbonate; Conductor: Brass, nickel plated
Operating Temperature -25 to +55 C (no condensation)
Temperature Rise Conductor temperature rise 45 C max.
Withstand Voltage 2,500 V, 1 min
Terminal Torque M5 2.2 N.m (AWG 12-6); M6 4.0 N.m (AWG 10-4); M8 8.0 N.m (AWG 8-0)
Mounting Screw / DIN rail (channel)
BPS100A-M6/4*M5 Rating: 600 V 100 A | Primary wire: 25 mm2 [100 A] | Primary screw: M6 x 1 | Secondary screw: M5 x 4 | Dimensions (W x D): 116 x 105 mm
BPS100A-M6/8*M5 Rating: 600 V 100 A | Primary wire: 25 mm2 [100 A] | Primary screw: M6 x 1 | Secondary screw: M5 x 8 | Dimensions (W x D): 184 x 105 mm
BPS100A-M6/12*M5 Rating: 600 V 100 A | Primary wire: 25 mm2 [100 A] | Primary screw: M6 x 1 | Secondary screw: M5 x 12 | Dimensions (W x D): 252 x 105 mm
BPS150A-M8/4*M5 Rating: 600 V 150 A | Primary wire: 50 mm2 [150 A] | Primary screw: M8 x 1 | Secondary screw: M5 x 4 | Dimensions (W x D): 116 x 105 mm
BPS150A-M8/8*M5 Rating: 600 V 150 A | Primary wire: 50 mm2 [150 A] | Primary screw: M8 x 1 | Secondary screw: M5 x 8 | Dimensions (W x D): 184 x 105 mm
BPS150A-M8/12*M5 Rating: 600 V 150 A | Primary wire: 50 mm2 [150 A] | Primary screw: M8 x 1 | Secondary screw: M5 x 12 | Dimensions (W x D): 252 x 105 mm
