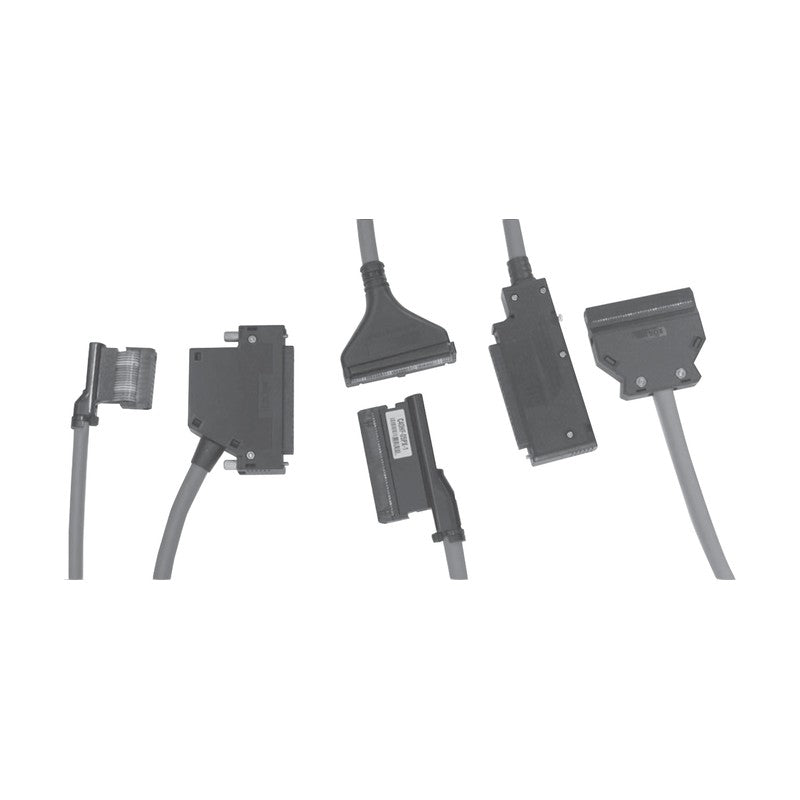

Samwon ACT C20HH-SL-0 General-Purpose 1:1 Cable, OMRON XG4M 20P Both Ends
Samwon ACT C20HH-SL-0 General-Purpose 1:1 Cable, OMRON XG4M 20P Both Ends
General-purpose 1:1 flat connector cable with OMRON XG4M 20-pin connectors on both ends for linking terminal blocks and relay terminals. 1:1 wiring between two 20-pin XG4M connectors.
Key features
- Used as the master/slave jump cable for R16G relay boards
- Standard lengths 0.5 to 10 m; custom lengths in 100 mm steps
Specifications
| Rated Current | 1 A at 20 C |
|---|---|
| Rated Voltage | 30 V DC |
| Cable | UL2969 (or 20276) twisted pair, AWG28 (7/0.127), VW-1 |
| Cable Color | Brown |
| Insulation Resistance | 100 Mohm min. at 500 V DC |
| Withstand Voltage | 500 V AC 1 min |
| Ambient Temperature | -25 to +80 C (operating) |
| Length Tolerance | +50 to +100 mm |
| Connector | OMRON XG4M 20P x 2 |
| C20HH-05SL-0 | Length: 0.5 m | |
| C20HH-10SL-0 | Length: 1 m | |
| C20HH-15SL-0 | Length: 1.5 m | |
| C20HH-20SL-0 | Length: 2 m | |
| C20HH-30SL-0 | Length: 3 m | |
| C20HH-50SL-0 | Length: 5 m | |
| C20HH-100SL-0 | Length: 10 m |
I/O CablesSamwon ACT
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Samwon ACT C20HH-SL-0 General-Purpose 1:1 Cable, OMRON XG4M 20P Both Ends
Available part numbers (7)
C20HH-05SL-0, C20HH-10SL-0, C20HH-15SL-0, C20HH-20SL-0, C20HH-30SL-0, C20HH-50SL-0, C20HH-100SL-0
How to order
Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Samwon ACT
I/O Cables
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| C20HH-05SL-0 | Length: 0.5 m | ||
| C20HH-10SL-0 | Length: 1 m | ||
| C20HH-15SL-0 | Length: 1.5 m | ||
| C20HH-20SL-0 | Length: 2 m | ||
| C20HH-30SL-0 | Length: 3 m | ||
| C20HH-50SL-0 | Length: 5 m | ||
| C20HH-100SL-0 | Length: 10 m |
Need a different model, or a part not listed here? Send us your parts list →
