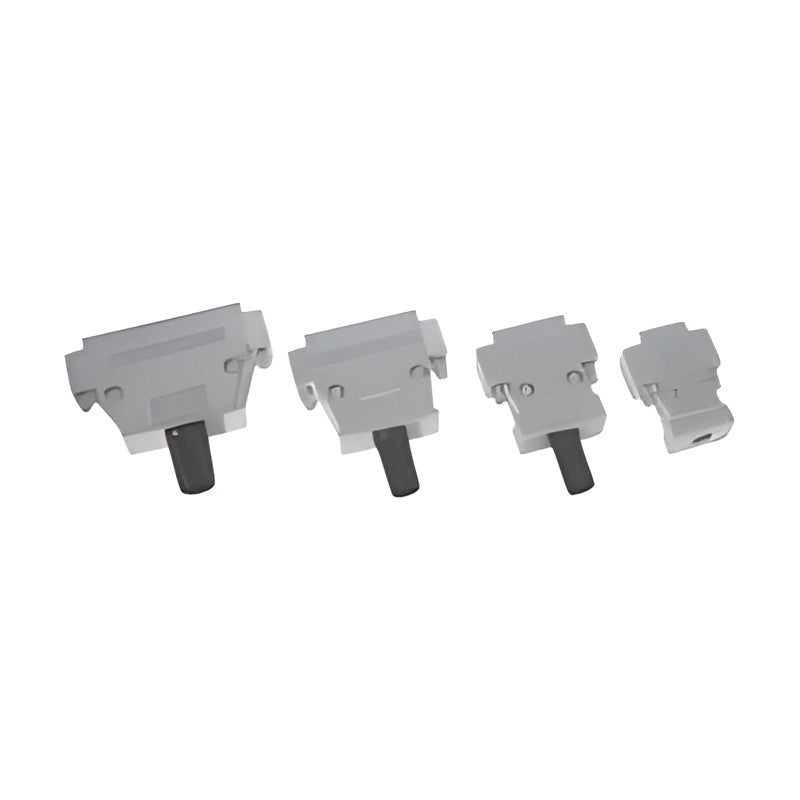

Samwon ACT IDH Series EMI Shielded D-SUB Connector Hood

Samwon ACT IDH Series EMI Shielded D-SUB Connector Hood

Plated EMI-shielding hood for solder-type D-SUB connectors with 9, 15, 25, 37 or 50 contacts (connector sold separately).

Key features

  • Hood for D-SUB connectors used for communication and I/O, with a neat appearance
  • Plated surface suitable for EMI countermeasures
  • For D-SUB 9, 15, 25, 37 and 50 pin, male or female
  • Compatible with domestic and imported solder-type D-SUB connectors
  • Connector sold separately

Specifications

Shielding EMI shielded
Entry Hole Standard type
IDH-09H-1A Contacts: 09 (D-SUB 9 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø6.0 max.
IDH-15H-1A Contacts: 15 (D-SUB 15 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø9.0 max.
IDH-25H-1A Contacts: 25 (D-SUB 25 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø10.0 max.
IDH-37H-1A Contacts: 37 (D-SUB 37 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø11.0 max.
IDH-50H-1A Contacts: 50 (D-SUB 50 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø11.0 max.
IDH-09H-1C Contacts: 09 (D-SUB 9 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø6.0 max.
IDH-15H-1C Contacts: 15 (D-SUB 15 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø9.0 max.
IDH-25H-1C Contacts: 25 (D-SUB 25 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø10.0 max.
IDH-37H-1C Contacts: 37 (D-SUB 37 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø11.0 max.
IDH-50H-1C Contacts: 50 (D-SUB 50 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø11.0 max.
ConnectorsSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT IDH Series EMI Shielded D-SUB Connector Hood

Brand Samwon ACT·Connectors

Available part numbers (10)

IDH-09H-1A, IDH-15H-1A, IDH-25H-1A, IDH-37H-1A, IDH-50H-1A, IDH-09H-1C, IDH-15H-1C, IDH-25H-1C, IDH-37H-1C, IDH-50H-1C

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDH-09H-1AContacts: 09 (D-SUB 9 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø6.0 max.
IDH-15H-1AContacts: 15 (D-SUB 15 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø9.0 max.
IDH-25H-1AContacts: 25 (D-SUB 25 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø10.0 max.
IDH-37H-1AContacts: 37 (D-SUB 37 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø11.0 max.
IDH-50H-1AContacts: 50 (D-SUB 50 pin) | Lock Screw: M2.6 x 0.45 (mm) | Cable OD: Ø11.0 max.
IDH-09H-1CContacts: 09 (D-SUB 9 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø6.0 max.
IDH-15H-1CContacts: 15 (D-SUB 15 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø9.0 max.
IDH-25H-1CContacts: 25 (D-SUB 25 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø10.0 max.
IDH-37H-1CContacts: 37 (D-SUB 37 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø11.0 max.
IDH-50H-1CContacts: 50 (D-SUB 50 pin) | Lock Screw: #4-40UNC (inch) | Cable OD: Ø11.0 max.
