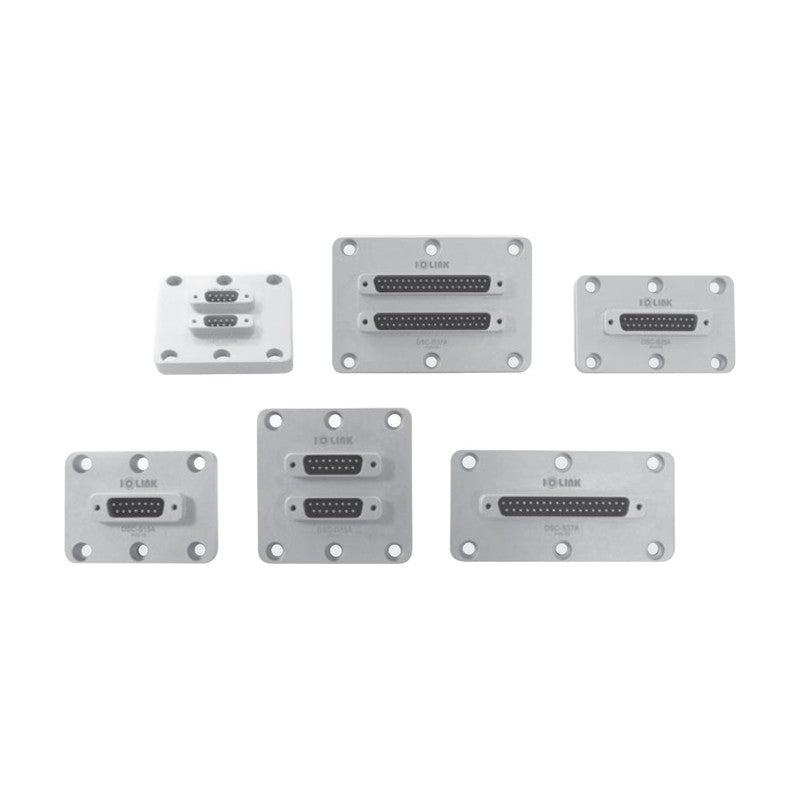

Samwon ACT DSC Series D-SUB Hermetic Connector for Vacuum and Nitrogen Environments

Bolt-mounted hermetic feedthrough with D-SUB connectors (9, 15, 25, 37 pin and 5W5) for vacuum and nitrogen gas equipment, leak-tight to 1 x 10^-7 torr.

Key features

Hermetic connector guaranteed to a leakage level of 10^-7 torr, for vacuum, helium and nitrogen gas equipment such as LCD/OLED systems
Connectors on both sides for easy connection and maintenance
D-SUB 9, 15, 25, 37 pin and 5W5 versions, single or double
Every unit leak-tested with an Adixen ASM 142 helium leak detector

Specifications

Pressure Seal	1 x 10^-7 torr (helium leak rate)
Rated Voltage	300V AC (r.m.s.)
Withstanding Voltage	1,000V AC (r.m.s.) / 1 min
Temperature	-10 to +80 °C
Body	AL alloy 6061, anodized
Contact	Brass, electroless nickel plating
O-Ring	Viton
Rubber Shell	CR (chloroprene rubber)
Mounting	Bolt

DSC-S09A		Connectors: Single \| Pins: 9 \| Outside / Inside: D-SUB 9 pin female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 66.0 x 48.0 mm
DSC-S15A		Connectors: Single \| Pins: 15 \| Outside / Inside: D-SUB 15 pin female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 66.0 x 48.0 mm
DSC-S25A		Connectors: Single \| Pins: 25 \| Outside / Inside: D-SUB 25 pin female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 79.5 x 48.0 mm
DSC-S5W5		Connectors: Single \| Pins: 5 \| Outside / Inside: D-SUB 5W5 female / male \| Rating Class: B \| Rated Current: 30A per contact \| Insulation Resistance: 5,000 MΩ min. at 500V DC \| Size (W x D): 79.5 x 48.0 mm
DSC-S37A		Connectors: Single \| Pins: 37 \| Outside / Inside: D-SUB 37 pin female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 96.0 x 48.0 mm
DSC-D09A		Connectors: Double \| Pins: 9 x 2 \| Outside / Inside: D-SUB 9 pin x 2 female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 66.0 x 66.0 mm
DSC-D15A		Connectors: Double \| Pins: 15 x 2 \| Outside / Inside: D-SUB 15 pin x 2 female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 66.0 x 66.0 mm
DSC-D25A		Connectors: Double \| Pins: 25 x 2 \| Outside / Inside: D-SUB 25 pin x 2 female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 79.5 x 66.0 mm
DSC-D5W5		Connectors: Double \| Pins: 5 x 2 \| Outside / Inside: D-SUB 5W5 x 2 female / male \| Rating Class: B \| Rated Current: 30A per contact \| Insulation Resistance: 5,000 MΩ min. at 500V DC \| Size (W x D): 79.5 x 66.0 mm
DSC-D37A		Connectors: Double \| Pins: 37 x 2 \| Outside / Inside: D-SUB 37 pin x 2 female / male \| Rating Class: A \| Rated Current: 5A per contact \| Insulation Resistance: 1,000 MΩ min. at 500V DC \| Size (W x D): 96.0 x 66.0 mm
