Samwon ACT DV0P0800 I/O Cable and XTB-26H Terminal Block for Panasonic MINAS A6N/A6B

Samwon ACT DV0P0800 I/O Cable and XTB-26H Terminal Block for Panasonic MINAS A6N/A6B

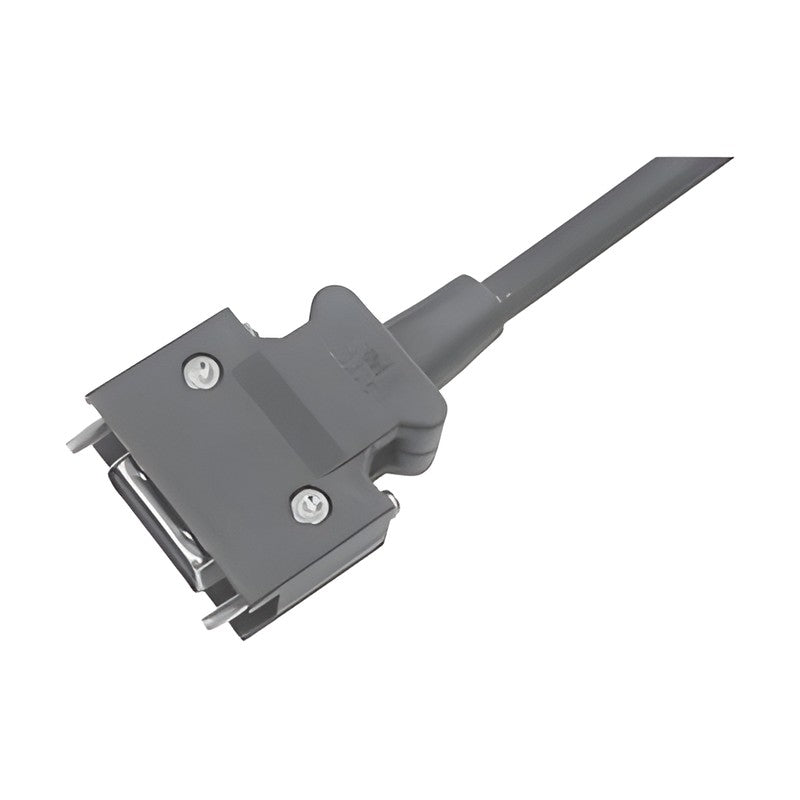

I/O signal cable for the CN1 connector of Panasonic MINAS A6N/A6B servo amplifiers, offered with loose end, as a junction terminal block cable, or as the XTB-26H terminal block.

Key features

  • Cable for the I/O signal connector of Panasonic MINAS A6N/A6B servo amplifiers
  • Use the SAMWON XTB-26H junction terminal block with the junction terminal block cable
  • Cables for the X1, X2 and X3 connectors can also be made on request
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector 3M 10260-6000EL / 10326-52A0-008 or equivalent
Terminal Block Side Connector HIROSE HIF3BA-26D-2.54R or equivalent
Max. Transmission Length 3M
Terminal Block Rating 125V, 1A
Terminal Block Connector HIROSE HIF3BA-26PA-2.54DSA or equivalent
Terminal Block Specifications 109.0 x 40.0 mm (W x D), 7.62 mm pitch screw terminals, 85.0 mm mounting hole pitch (2-Ø4.5)
DV0P0800-0.5M Type: I/O signal cable (amplifier side connector) | Length: 0.5M
DV0P0800-1M Type: I/O signal cable (amplifier side connector) | Length: 1M
DV0P0800-2M Type: I/O signal cable (amplifier side connector) | Length: 2M
DV0P0800-3M Type: I/O signal cable (amplifier side connector) | Length: 3M
DV0P0800S-0.5M Type: I/O junction terminal block cable (for XTB-26H) | Length: 0.5M
DV0P0800S-1M Type: I/O junction terminal block cable (for XTB-26H) | Length: 1M
DV0P0800S-2M Type: I/O junction terminal block cable (for XTB-26H) | Length: 2M
DV0P0800S-3M Type: I/O junction terminal block cable (for XTB-26H) | Length: 3M
I/O CablesSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT DV0P0800 I/O Cable and XTB-26H Terminal Block for Panasonic MINAS A6N/A6B

Brand Samwon ACT·I/O Cables

Available part numbers (8)

DV0P0800-0.5M, DV0P0800-1M, DV0P0800-2M, DV0P0800-3M, DV0P0800S-0.5M, DV0P0800S-1M, DV0P0800S-2M, DV0P0800S-3M

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DV0P0800-0.5MType: I/O signal cable (amplifier side connector) | Length: 0.5M
DV0P0800-1MType: I/O signal cable (amplifier side connector) | Length: 1M
DV0P0800-2MType: I/O signal cable (amplifier side connector) | Length: 2M
DV0P0800-3MType: I/O signal cable (amplifier side connector) | Length: 3M
DV0P0800S-0.5MType: I/O junction terminal block cable (for XTB-26H) | Length: 0.5M
DV0P0800S-1MType: I/O junction terminal block cable (for XTB-26H) | Length: 1M
DV0P0800S-2MType: I/O junction terminal block cable (for XTB-26H) | Length: 2M
DV0P0800S-3MType: I/O junction terminal block cable (for XTB-26H) | Length: 3M
