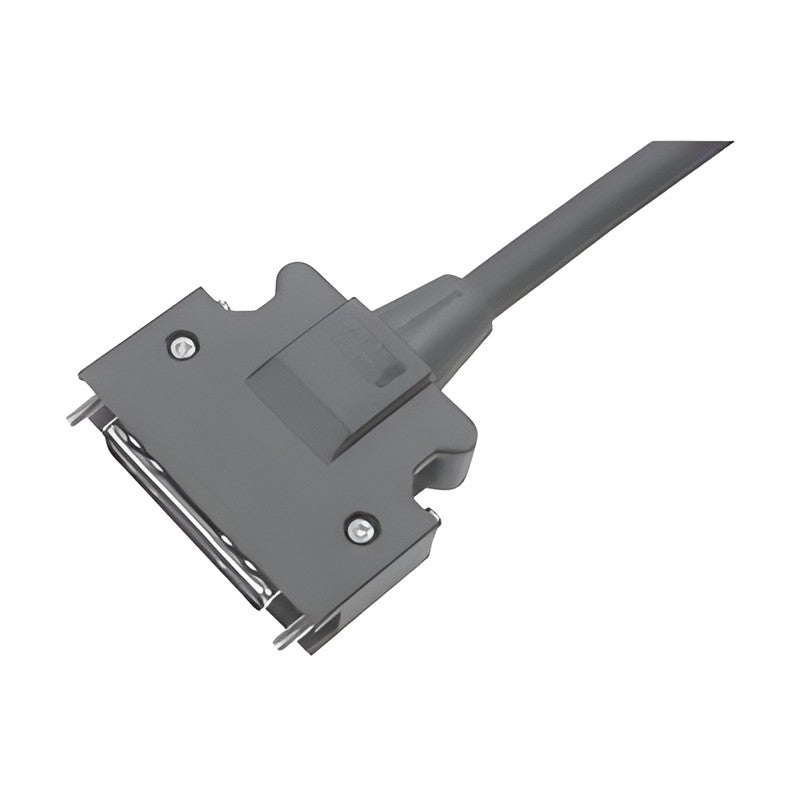

Samwon ACT DVOP4360 I/O Cable and XTB-50H Terminal Block for Panasonic MINAS A6/A5

Samwon ACT DVOP4360 I/O Cable and XTB-50H Terminal Block for Panasonic MINAS A6/A5

I/O signal cable for the CN1 connector of Panasonic MINAS A6/A5 servo amplifiers, offered with loose end, as a junction terminal block cable, or as the XTB-50H terminal block.

Key features

  • Cable for the I/O signal connector of Panasonic MINAS A6/A5 servo amplifiers
  • Use the SAMWON XTB-50H junction terminal block with the junction terminal block cable
  • Cables for the X1, X2 and X3 connectors can also be made on request
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector 3M 10150-6000EL / 10350-52A0-008 or equivalent
Terminal Block Side Connector HIROSE HIF3BA-50D-2.54R or equivalent
Max. Transmission Length 3M
Terminal Block Rating 125V, 1A
Terminal Block Connector HIROSE HIF3BA-50D-2.54DSA or equivalent
Terminal Block Specifications 184.0 x 40.0 mm (W x D), 7.0 mm pitch screw terminals, 163.0 mm mounting hole pitch (2-Ø4.5)
DVOP4360-0.5M Type: I/O signal cable (amplifier side connector) | Length: 0.5M
DVOP4360-1M Type: I/O signal cable (amplifier side connector) | Length: 1M
DVOP4360-2M Type: I/O signal cable (amplifier side connector) | Length: 2M
DVOP4360-3M Type: I/O signal cable (amplifier side connector) | Length: 3M
DVOP4360S-0.5M Type: I/O junction terminal block cable (for XTB-50H) | Length: 0.5M
DVOP4360S-1M Type: I/O junction terminal block cable (for XTB-50H) | Length: 1M
DVOP4360S-2M Type: I/O junction terminal block cable (for XTB-50H) | Length: 2M
DVOP4360S-3M Type: I/O junction terminal block cable (for XTB-50H) | Length: 3M
I/O CablesSamwon ACT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT DVOP4360 I/O Cable and XTB-50H Terminal Block for Panasonic MINAS A6/A5

Brand Samwon ACT·I/O Cables

Available part numbers (8)

DVOP4360-0.5M, DVOP4360-1M, DVOP4360-2M, DVOP4360-3M, DVOP4360S-0.5M, DVOP4360S-1M, DVOP4360S-2M, DVOP4360S-3M

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DVOP4360-0.5MType: I/O signal cable (amplifier side connector) | Length: 0.5M
DVOP4360-1MType: I/O signal cable (amplifier side connector) | Length: 1M
DVOP4360-2MType: I/O signal cable (amplifier side connector) | Length: 2M
DVOP4360-3MType: I/O signal cable (amplifier side connector) | Length: 3M
DVOP4360S-0.5MType: I/O junction terminal block cable (for XTB-50H) | Length: 0.5M
DVOP4360S-1MType: I/O junction terminal block cable (for XTB-50H) | Length: 1M
DVOP4360S-2MType: I/O junction terminal block cable (for XTB-50H) | Length: 2M
DVOP4360S-3MType: I/O junction terminal block cable (for XTB-50H) | Length: 3M
