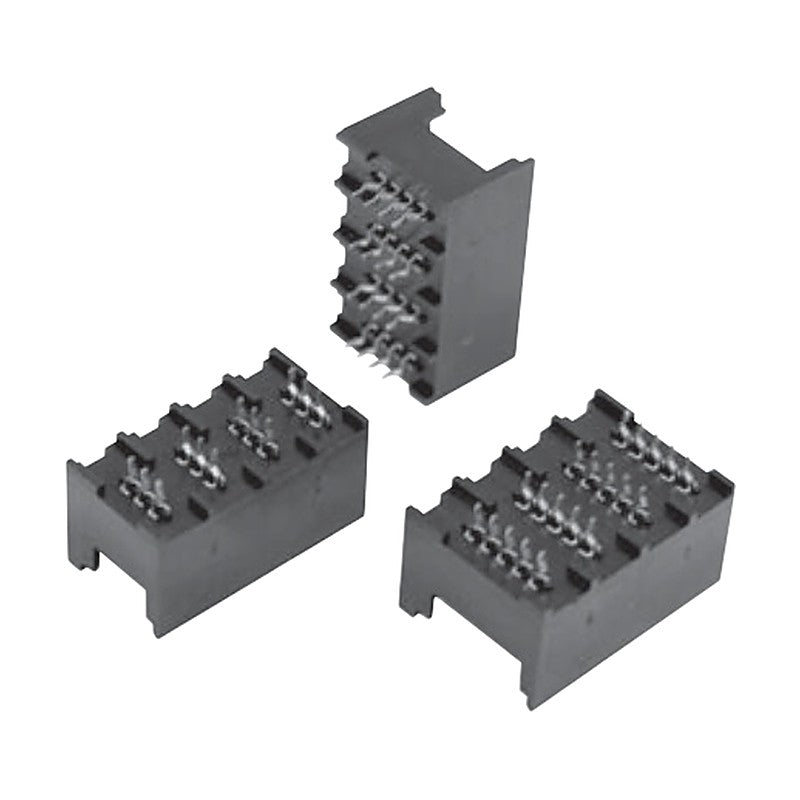

Samwon ACT EC-SP4 Series 3/4/5-Pin e-con Board Mount Sockets

Samwon ACT EC-SP4 Series 3/4/5-Pin e-con Board Mount Sockets

PCB mount sockets for 3-, 4- and 5-pin e-con wire mount plugs, used for developing breakout and terminal boards.

Key features

  • PCB mount sockets for 3p, 4p and 5p wire-mount plug connectors (6.5 mm spacing)
  • Suited to breakout and terminal board development
  • Pins are retained on the board without separate fixing work
  • Contacts housed inside the body for electrical safety. 2 mm pitch e-con compatible

Specifications

Rated Voltage 48 V
Rated Current 3 A
Dielectric Strength 1,000 V AC, 1 min
Insulation Resistance 1,000 MOhm min.
Contact Resistance 50 mOhm max.
Operating Temperature -20 to +85 C (1 A), -20 to +75 C (2 A), -20 to +60 C (3 A)
Lines 4
PCB Thickness 1.0-1.6 mm
PCB Hole Diameter 1.0 mm
Material Body: PA66 UL94V-0 black; Contacts: Copper alloy, gold plated 0.2 um min.
EC-3SP4 Positions: 3 | Mating connector: EC-3P series
EC-4SP4 Positions: 4 | Mating connector: EC-4P series
EC-5SP4 Positions: 5 | Mating connector: EC-5P series
ConnectorsSamwon ACT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT EC-SP4 Series 3/4/5-Pin e-con Board Mount Sockets

Brand Samwon ACT·Connectors

Available part numbers (3)

EC-3SP4, EC-4SP4, EC-5SP4

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EC-3SP4Positions: 3 | Mating connector: EC-3P series
EC-4SP4Positions: 4 | Mating connector: EC-4P series
EC-5SP4Positions: 5 | Mating connector: EC-5P series
