Samwon ACT ES14 / ES23 / ES28 Cable Entry System Frames

Samwon ACT ES14 / ES23 / ES28 Cable Entry System Frames

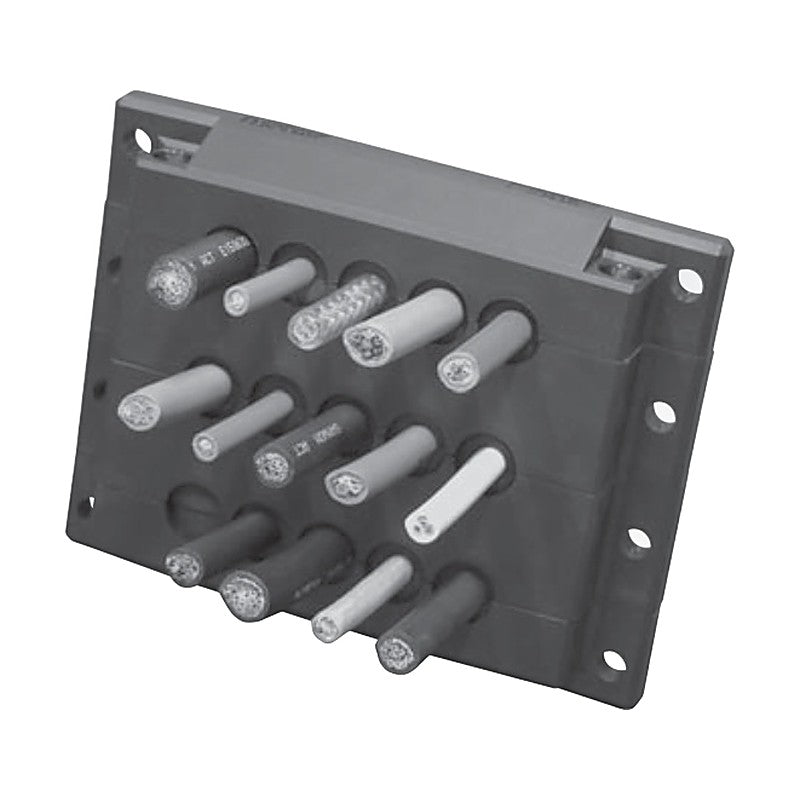

Split-frame cable entry plates for routing multiple pre-terminated cables or flexible conduits out of control panels, sealed with EP packings to IP54.

Key features

  • Split body structure lets cables with connectors or terminals be assembled without field harness work
  • Cables, plate and panel sealed to IP54
  • Simple, compact size routes many cables and flexible conduits in a small area
  • Plate body and packings are sold separately
  • ES14 for cables up to 13.5/18.5 mm, ES23 up to 22.5 mm, ES28 up to 27.5 mm

Specifications

Degree of protection IP54
Plate PA6
Plate pad Rubber
Bolt / nut Steel
Packing Sold separately (EP series)
ES14-05 Cable diameter: 13.5 mm max. | Holes: 5 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx | Color: Black
ES14-05/V Cable diameter: 13.5 mm max. | Holes: 5 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx | Color: Ivory
ES14-10 Cable diameter: 13.5 mm max. | Holes: 10 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx | Color: Black
ES14-10/V Cable diameter: 13.5 mm max. | Holes: 10 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx | Color: Ivory
ES14-15 Cable diameter: 13.5 mm max. | Holes: 15 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx | Color: Black
ES14-15/V Cable diameter: 13.5 mm max. | Holes: 15 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx | Color: Ivory
ES14-05B1 Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 4 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-05B1/V Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 4 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B1 Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 9 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B1/V Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 9 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B1 Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 14 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B1/V Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 14 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-05B2 Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 3 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-05B2/V Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 3 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B2 Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 8 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B2/V Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 8 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B2 Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 13 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B2/V Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 13 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B3 Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 7 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B3/V Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 7 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B3 Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 12 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B3/V Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 12 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES23-04 Cable diameter: 22.5 mm max. | Holes: 4 | Rows: 1 | Size (W x H): 173 x 60 mm | Mounting pitch: 159 x 30 mm | Packing: EP23xx | Color: Black
ES23-04/V Cable diameter: 22.5 mm max. | Holes: 4 | Rows: 1 | Size (W x H): 173 x 60 mm | Mounting pitch: 159 x 30 mm | Packing: EP23xx | Color: Ivory
ES23-08 Cable diameter: 22.5 mm max. | Holes: 8 | Rows: 2 | Size (W x H): 173 x 98 mm | Mounting pitch: 159 x 34 x 68 mm | Packing: EP23xx | Color: Black
ES23-08/V Cable diameter: 22.5 mm max. | Holes: 8 | Rows: 2 | Size (W x H): 173 x 98 mm | Mounting pitch: 159 x 34 x 68 mm | Packing: EP23xx | Color: Ivory
ES28-02 Cable diameter: 27.5 mm max. | Holes: 2 | Rows: 1 | Size (W x H): 118 x 56 mm | Mounting pitch: 104 x 32 mm | Packing: EP28xx | Color: Black
ES28-02/V Cable diameter: 27.5 mm max. | Holes: 2 | Rows: 1 | Size (W x H): 118 x 56 mm | Mounting pitch: 104 x 32 mm | Packing: EP28xx | Color: Ivory
ES28-04 Cable diameter: 27.5 mm max. | Holes: 4 | Rows: 2 | Size (W x H): 118 x 100 mm | Mounting pitch: 104 x 38 x 76 mm | Packing: EP28xx | Color: Black
ES28-04/V Cable diameter: 27.5 mm max. | Holes: 4 | Rows: 2 | Size (W x H): 118 x 100 mm | Mounting pitch: 104 x 38 x 76 mm | Packing: EP28xx | Color: Ivory
ES14-05/OM Type: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 1 | Packing: made to order after consultation
ES14-10/OM Type: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 2 | Packing: made to order after consultation
ES14-15/OM Type: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 3 | Packing: made to order after consultation
Cable AccessoriesSamwon ACT
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT ES14 / ES23 / ES28 Cable Entry System Frames

Brand Samwon ACT·Cable Accessories

Available part numbers (33)

ES14-05, ES14-05/V, ES14-10, ES14-10/V, ES14-15, ES14-15/V, ES14-05B1, ES14-05B1/V, ES14-10B1, ES14-10B1/V + 23 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ES14-05Cable diameter: 13.5 mm max. | Holes: 5 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx | Color: Black
ES14-05/VCable diameter: 13.5 mm max. | Holes: 5 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx | Color: Ivory
ES14-10Cable diameter: 13.5 mm max. | Holes: 10 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx | Color: Black
ES14-10/VCable diameter: 13.5 mm max. | Holes: 10 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx | Color: Ivory
ES14-15Cable diameter: 13.5 mm max. | Holes: 15 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx | Color: Black
ES14-15/VCable diameter: 13.5 mm max. | Holes: 15 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx | Color: Ivory
ES14-05B1Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 4 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-05B1/VCable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 4 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B1Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 9 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B1/VCable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 9 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B1Cable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 14 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B1/VCable diameter: 13.5/18.5 mm max. (one 18.5 mm hole) | Holes: 14 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-05B2Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 3 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-05B2/VCable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 3 | Rows: 1 | Size (W x H): 142 x 50 mm | Mounting pitch: 128 x 30 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B2Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 8 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B2/VCable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 8 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B2Cable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 13 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B2/VCable diameter: 13.5/18.5 mm max. (two 18.5 mm holes) | Holes: 13 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-10B3Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 7 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-10B3/VCable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 7 | Rows: 2 | Size (W x H): 142 x 80 mm | Mounting pitch: 128 x 30 x 60 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES14-15B3Cable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 12 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Black
ES14-15B3/VCable diameter: 13.5/18.5 mm max. (three 18.5 mm holes) | Holes: 12 | Rows: 3 | Size (W x H): 142 x 110 mm | Mounting pitch: 128 x 30 x 60 x 90 mm | Packing: EP14xx / EP19xx | Color: Ivory
ES23-04Cable diameter: 22.5 mm max. | Holes: 4 | Rows: 1 | Size (W x H): 173 x 60 mm | Mounting pitch: 159 x 30 mm | Packing: EP23xx | Color: Black
ES23-04/VCable diameter: 22.5 mm max. | Holes: 4 | Rows: 1 | Size (W x H): 173 x 60 mm | Mounting pitch: 159 x 30 mm | Packing: EP23xx | Color: Ivory
ES23-08Cable diameter: 22.5 mm max. | Holes: 8 | Rows: 2 | Size (W x H): 173 x 98 mm | Mounting pitch: 159 x 34 x 68 mm | Packing: EP23xx | Color: Black
ES23-08/VCable diameter: 22.5 mm max. | Holes: 8 | Rows: 2 | Size (W x H): 173 x 98 mm | Mounting pitch: 159 x 34 x 68 mm | Packing: EP23xx | Color: Ivory
ES28-02Cable diameter: 27.5 mm max. | Holes: 2 | Rows: 1 | Size (W x H): 118 x 56 mm | Mounting pitch: 104 x 32 mm | Packing: EP28xx | Color: Black
ES28-02/VCable diameter: 27.5 mm max. | Holes: 2 | Rows: 1 | Size (W x H): 118 x 56 mm | Mounting pitch: 104 x 32 mm | Packing: EP28xx | Color: Ivory
ES28-04Cable diameter: 27.5 mm max. | Holes: 4 | Rows: 2 | Size (W x H): 118 x 100 mm | Mounting pitch: 104 x 38 x 76 mm | Packing: EP28xx | Color: Black
ES28-04/VCable diameter: 27.5 mm max. | Holes: 4 | Rows: 2 | Size (W x H): 118 x 100 mm | Mounting pitch: 104 x 38 x 76 mm | Packing: EP28xx | Color: Ivory
ES14-05/OMType: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 1 | Packing: made to order after consultation
ES14-10/OMType: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 2 | Packing: made to order after consultation
ES14-15/OMType: Made-to-order ES14 frame without hole partitions, for flat cables or multiple small cables | Rows: 3 | Packing: made to order after consultation

Need a different model, or a part not listed here? Send us your parts list →
