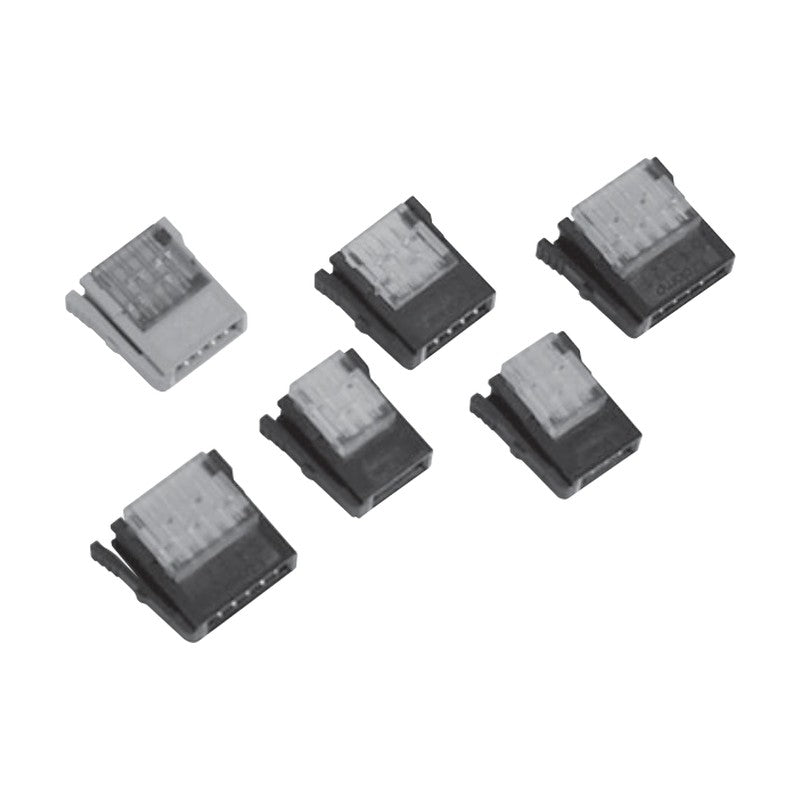

Samwon ACT EZ-Clamp EC-P Series 3/4/5-Pin IDC Plug Connectors

Samwon ACT EZ-Clamp EC-P Series 3/4/5-Pin IDC Plug Connectors

2 mm pitch e-con compatible 3-, 4- and 5-pin IDC plug connectors for sensor and I/O signal cable relay and breakout board connection.

Key features

  • Wires are inserted without stripping and crimped with pliers (insulation displacement)
  • Accepts a wide wire range (AWG 20-28) for sensors and I/O signals. 2 mm pitch e-con compatible connector
  • Cover color indicates applicable wire size; transparent cover shows wire insertion

Specifications

Rated Voltage 48 V
Rated Current 3 A
Dielectric Strength 1,000 V AC, 1 min
Insulation Resistance 1,000 MOhm min.
Contact Resistance 50 mOhm max.
Operating Temperature -20 to +85 C (1 A), -20 to +75 C (2 A), -20 to +60 C (3 A)
Pitch 2 mm (e-con compatible)
Connection IDC (insulation displacement)
Samwon ACT EZ-Clamp EC-P Series 3/4/5-Pin IDC Plug Connectors - reference 2
EC-3P68VT Pins: 3 | Body: Gray | Cover: Violet | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4P68VT Pins: 4 | Body: Gray | Cover: Violet | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3P68RD Pins: 3 | Body: Gray | Cover: Red | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4P68RD Pins: 4 | Body: Gray | Cover: Red | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3P06TR Pins: 3 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-4P06TR Pins: 4 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-3P46VT Pins: 3 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4P46VT Pins: 4 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3P46RD Pins: 3 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4P46RD Pins: 4 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-5P46RD Pins: 5 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3P46YE Pins: 3 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4P46YE Pins: 4 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-5P46YE Pins: 5 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3P46OG Pins: 3 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4P46OG Pins: 4 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3P02GN Pins: 3 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4P02GN Pins: 4 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3P02BU Pins: 3 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4P02BU Pins: 4 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-5P02BU Pins: 5 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3P02GY Pins: 3 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
EC-4P02GY Pins: 4 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
ConnectorsSamwon ACT
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT EZ-Clamp EC-P Series 3/4/5-Pin IDC Plug Connectors

Brand Samwon ACT·Connectors

Available part numbers (23)

EC-3P68VT, EC-4P68VT, EC-3P68RD, EC-4P68RD, EC-3P06TR, EC-4P06TR, EC-3P46VT, EC-4P46VT, EC-3P46RD, EC-4P46RD + 13 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Samwon ACT EZ-Clamp EC-P Series 3/4/5-Pin IDC Plug Connectors - reference 2
0 selected
RFQ List (0)
Product codeSpec
EC-3P68VTPins: 3 | Body: Gray | Cover: Violet | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4P68VTPins: 4 | Body: Gray | Cover: Violet | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3P68RDPins: 3 | Body: Gray | Cover: Red | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4P68RDPins: 4 | Body: Gray | Cover: Red | Wire: AWG 26-28, 0.08-0.13 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3P06TRPins: 3 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-4P06TRPins: 4 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-3P46VTPins: 3 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4P46VTPins: 4 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3P46RDPins: 3 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4P46RDPins: 4 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-5P46RDPins: 5 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3P46YEPins: 3 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4P46YEPins: 4 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-5P46YEPins: 5 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3P46OGPins: 3 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4P46OGPins: 4 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3P02GNPins: 3 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4P02GNPins: 4 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3P02BUPins: 3 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4P02BUPins: 4 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-5P02BUPins: 5 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3P02GYPins: 3 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
EC-4P02GYPins: 4 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
