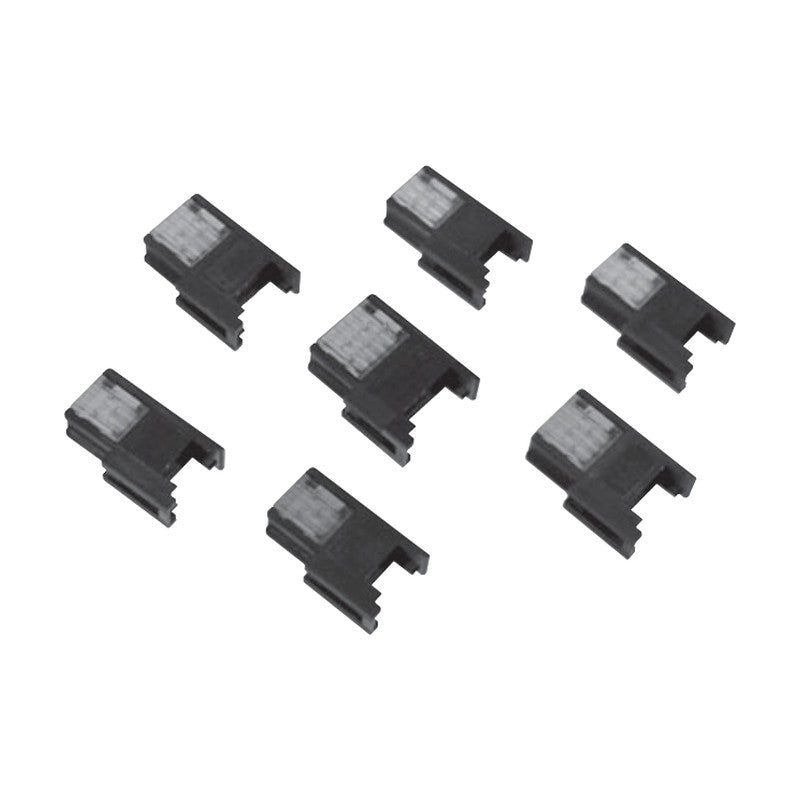

Samwon ACT EZ-Clamp EC-S Series 3/4/5-Pin IDC Socket Connectors

Samwon ACT EZ-Clamp EC-S Series 3/4/5-Pin IDC Socket Connectors

2 mm pitch e-con compatible 3-, 4- and 5-pin IDC socket connectors for cable-to-cable relay and breakout board connection of sensor and I/O signals.

Key features

  • Wires are inserted without stripping and crimped with pliers (insulation displacement)
  • Accepts AWG 20-26 wires for sensors and I/O signals. 2 mm pitch e-con compatible connector
  • Cover color indicates applicable wire size; transparent cover shows wire insertion

Specifications

Rated Voltage 48 V
Rated Current 3 A
Dielectric Strength 1,000 V AC, 1 min
Insulation Resistance 1,000 MOhm min.
Contact Resistance 50 mOhm max.
Operating Temperature -20 to +85 C (1 A), -20 to +75 C (2 A), -20 to +60 C (3 A)
Pitch 2 mm (e-con compatible)
Connection IDC (insulation displacement)
EC-3S06TR Pins: 3 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-4S06TR Pins: 4 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-3S46VT Pins: 3 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4S46VT Pins: 4 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3S46RD Pins: 3 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4S46RD Pins: 4 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-5S46RD Pins: 5 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3S46YE Pins: 3 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4S46YE Pins: 4 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-5S46YE Pins: 5 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3S46OG Pins: 3 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4S46OG Pins: 4 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3S02GN Pins: 3 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4S02GN Pins: 4 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3S02BU Pins: 3 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4S02BU Pins: 4 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-5S02BU Pins: 5 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3S02GY Pins: 3 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
EC-4S02GY Pins: 4 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
ConnectorsSamwon ACT
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT EZ-Clamp EC-S Series 3/4/5-Pin IDC Socket Connectors

Brand Samwon ACT·Connectors

Available part numbers (19)

EC-3S06TR, EC-4S06TR, EC-3S46VT, EC-4S46VT, EC-3S46RD, EC-4S46RD, EC-5S46RD, EC-3S46YE, EC-4S46YE, EC-5S46YE + 9 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EC-3S06TRPins: 3 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-4S06TRPins: 4 | Body: Gray | Cover: Transparent | Wire: AWG 20-26, 0.12-0.5 mm2 | Finished OD: 1.0-1.6 mm | Certification: CE
EC-3S46VTPins: 3 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-4S46VTPins: 4 | Body: Black | Cover: Violet | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.6-0.8 mm | Certification: UL, CE
EC-3S46RDPins: 3 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-4S46RDPins: 4 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-5S46RDPins: 5 | Body: Black | Cover: Red | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 0.8-1.0 mm | Certification: UL, CE
EC-3S46YEPins: 3 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4S46YEPins: 4 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-5S46YEPins: 5 | Body: Black | Cover: Yellow | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3S46OGPins: 3 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4S46OGPins: 4 | Body: Black | Cover: Orange | Wire: AWG 24-26, 0.13-0.21 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3S02GNPins: 3 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-4S02GNPins: 4 | Body: Black | Cover: Green | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.0-1.2 mm | Certification: UL, CE
EC-3S02BUPins: 3 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-4S02BUPins: 4 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-5S02BUPins: 5 | Body: Black | Cover: Blue | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.2-1.6 mm | Certification: UL, CE
EC-3S02GYPins: 3 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE
EC-4S02GYPins: 4 | Body: Black | Cover: Gray | Wire: AWG 20-22, 0.32-0.5 mm2 | Finished OD: 1.6-2.0 mm | Certification: UL, CE

Need a different model, or a part not listed here? Send us your parts list →
