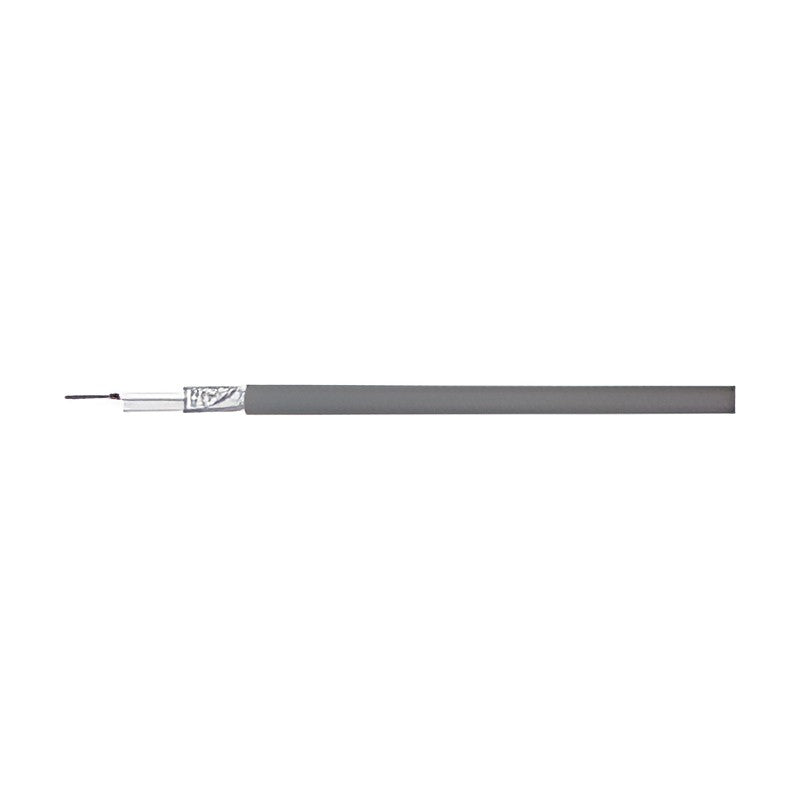

Samwon ACT FANC-110SBH / FANC-110SBZ-5 CC-Link Ver.1.10 Bulk Cables

Samwon ACT FANC-110SBH / FANC-110SBZ-5 CC-Link Ver.1.10 Bulk Cables

CC-Link Ver.1.10 compliant 3-core shielded bulk cables (KURAMO) for fixed and moving installations.

Key features

  • FA network cable compatible with CC-Link Ver.1.10
  • Double shielding for stable transmission quality
  • Supports 10 Mbps transmission / RS-485
  • Moving-type FANC-110SBZ-5 supports 50% of the standard transmission distance

Specifications

Maker KURAMO (JAPAN)
Conductor size 0.5 mm2 x 3C
Characteristic impedance 110 Ohm (1 MHz)
Insulation resistance 10,000 MOhm-km min.
Sheath color Brown
Operating temperature 0 to +75 C
FANC-110SBH Type: Fixed cable, 3 x 0.5 | Strands: 7/0.32 mm | Conductor resistance: 34.5 Ohm/km max. | Capacitance: 50 nF/km max. | Dielectric strength: AC 1,500 V 1 min | Outer diameter: approx. 7.6 mm | Standard: UL 758 (AWM Style 2464), CSA C22.2 No.210 | Sales unit: 200 m
FANC-110SBZ-5 Type: Moving cable, 3 x 0.5 | Strands: 3 x 33/0.08 mm | Conductor resistance: 43.4 Ohm/km max. | Capacitance: 60 nF/km max. | Dielectric strength: DC 500 V 1 min | Outer diameter: approx. 8.0 mm | Sales unit: 100 m
Fieldbus CablesSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT FANC-110SBH / FANC-110SBZ-5 CC-Link Ver.1.10 Bulk Cables

Brand Samwon ACT·Fieldbus Cables

Available part numbers (2)

FANC-110SBH, FANC-110SBZ-5
