• Samwon ACT IETSN CC-Link IE TSN Field Network Cables (Cat.5e RJ45)
1 1

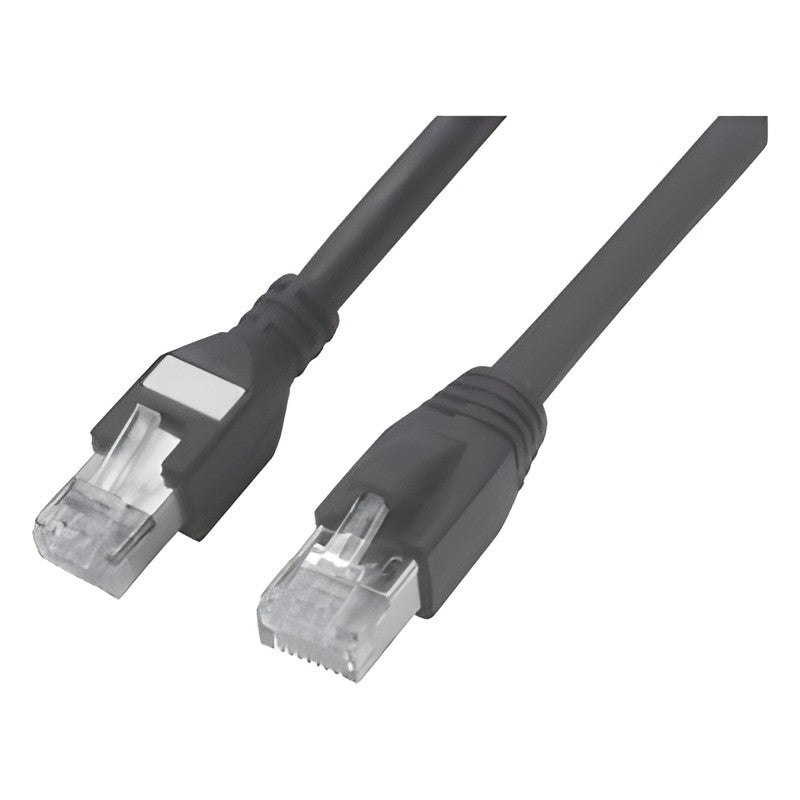

Samwon ACT IETSN CC-Link IE TSN Field Network Cables (Cat.5e RJ45)

Samwon ACT IETSN CC-Link IE TSN Field Network Cables (Cat.5e RJ45)

Cat.5e RJ45 patch cables for MITSUBISHI J5 CC-Link IE TSN field networks connecting controllers, servos, inverters and I/O modules.

Key features

  • For MITSUBISHI J5 CC-Link IE TSN networks linking servos, inverters and I/O modules to one controller (motion field network)
  • Meets ANSI/TIA 568-2.D (1000BASE-T) / ISO Patch Cord Cat.5e certified
  • Fixed, moving and custom cables can be produced
  • Molded type (IETSN series) and dedicated RJ45 hood type (RJ45 series)
  • Tested with FLUKE DSX-5000 Cable Analyzer

Specifications

Connector GAON CAT6A RJ45 modular plug (molded) / modular plug set (hood type) or equivalent
Fixed cable GAON LAN-SFTP-CAT-5E/FA/P(F)
Moving cable GAON LAN-SFTP-CAT-5E/FA/P(M)
Max. transmission length 100 m
Length tolerance +50 to +100 mm
IETSN-SSA-03M-L Type: Molded RJ45 (IETSN-SSA) | Length: 3 m | Cable: Fixed
IETSN-SSA-03M-H Type: Molded RJ45 (IETSN-SSA) | Length: 3 m | Cable: Moving
IETSN-SSA-05M-L Type: Molded RJ45 (IETSN-SSA) | Length: 5 m | Cable: Fixed
IETSN-SSA-05M-H Type: Molded RJ45 (IETSN-SSA) | Length: 5 m | Cable: Moving
IETSN-SSA-10M-L Type: Molded RJ45 (IETSN-SSA) | Length: 10 m | Cable: Fixed
IETSN-SSA-10M-H Type: Molded RJ45 (IETSN-SSA) | Length: 10 m | Cable: Moving
IETSN-SSA-20M-L Type: Molded RJ45 (IETSN-SSA) | Length: 20 m | Cable: Fixed
IETSN-SSA-20M-H Type: Molded RJ45 (IETSN-SSA) | Length: 20 m | Cable: Moving
IETSN-SSA-50M-L Type: Molded RJ45 (IETSN-SSA) | Length: 50 m | Cable: Fixed
IETSN-SSA-50M-H Type: Molded RJ45 (IETSN-SSA) | Length: 50 m | Cable: Moving
IETSN-SSA-100M-L Type: Molded RJ45 (IETSN-SSA) | Length: 100 m | Cable: Fixed
IETSN-SSA-100M-H Type: Molded RJ45 (IETSN-SSA) | Length: 100 m | Cable: Moving
RJ45-IETSN-V030 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 3 m | Cable: Fixed
RJ45-IETSN-H030 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 3 m | Cable: Moving
RJ45-IETSN-V050 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 5 m | Cable: Fixed
RJ45-IETSN-H050 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 5 m | Cable: Moving
RJ45-IETSN-V0100 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 10 m | Cable: Fixed
RJ45-IETSN-H100 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 10 m | Cable: Moving
RJ45-IETSN-V0200 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 20 m | Cable: Fixed
RJ45-IETSN-H200 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 20 m | Cable: Moving
RJ45-IETSN-V0500 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 50 m | Cable: Fixed
RJ45-IETSN-H500 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 50 m | Cable: Moving
RJ45-IETSN-V1000 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 100 m | Cable: Fixed
RJ45-IETSN-H1000 Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 100 m | Cable: Moving
I/O CablesSamwon ACT
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT IETSN CC-Link IE TSN Field Network Cables (Cat.5e RJ45)

Brand Samwon ACT·I/O Cables

Available part numbers (24)

IETSN-SSA-03M-L, IETSN-SSA-03M-H, IETSN-SSA-05M-L, IETSN-SSA-05M-H, IETSN-SSA-10M-L, IETSN-SSA-10M-H, IETSN-SSA-20M-L, IETSN-SSA-20M-H, IETSN-SSA-50M-L, IETSN-SSA-50M-H + 14 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IETSN-SSA-03M-LType: Molded RJ45 (IETSN-SSA) | Length: 3 m | Cable: Fixed
IETSN-SSA-03M-HType: Molded RJ45 (IETSN-SSA) | Length: 3 m | Cable: Moving
IETSN-SSA-05M-LType: Molded RJ45 (IETSN-SSA) | Length: 5 m | Cable: Fixed
IETSN-SSA-05M-HType: Molded RJ45 (IETSN-SSA) | Length: 5 m | Cable: Moving
IETSN-SSA-10M-LType: Molded RJ45 (IETSN-SSA) | Length: 10 m | Cable: Fixed
IETSN-SSA-10M-HType: Molded RJ45 (IETSN-SSA) | Length: 10 m | Cable: Moving
IETSN-SSA-20M-LType: Molded RJ45 (IETSN-SSA) | Length: 20 m | Cable: Fixed
IETSN-SSA-20M-HType: Molded RJ45 (IETSN-SSA) | Length: 20 m | Cable: Moving
IETSN-SSA-50M-LType: Molded RJ45 (IETSN-SSA) | Length: 50 m | Cable: Fixed
IETSN-SSA-50M-HType: Molded RJ45 (IETSN-SSA) | Length: 50 m | Cable: Moving
IETSN-SSA-100M-LType: Molded RJ45 (IETSN-SSA) | Length: 100 m | Cable: Fixed
IETSN-SSA-100M-HType: Molded RJ45 (IETSN-SSA) | Length: 100 m | Cable: Moving
RJ45-IETSN-V030Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 3 m | Cable: Fixed
RJ45-IETSN-H030Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 3 m | Cable: Moving
RJ45-IETSN-V050Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 5 m | Cable: Fixed
RJ45-IETSN-H050Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 5 m | Cable: Moving
RJ45-IETSN-V0100Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 10 m | Cable: Fixed
RJ45-IETSN-H100Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 10 m | Cable: Moving
RJ45-IETSN-V0200Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 20 m | Cable: Fixed
RJ45-IETSN-H200Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 20 m | Cable: Moving
RJ45-IETSN-V0500Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 50 m | Cable: Fixed
RJ45-IETSN-H500Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 50 m | Cable: Moving
RJ45-IETSN-V1000Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 100 m | Cable: Fixed
RJ45-IETSN-H1000Type: Dedicated RJ45 hood (RJ45-IETSN) | Length: 100 m | Cable: Moving
