Samwon ACT J4 HG-JR 11-22 kW Encoder Cables

Samwon ACT J4 HG-JR 11-22 kW Encoder Cables

Encoder cables for MITSUBISHI J4 HG-JR11K1M / 15K1M / 22K1M (11-22 kW) servo motors.

Key features

  • Encoder cable for J4 HG-JR 11-22 kW motors
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent

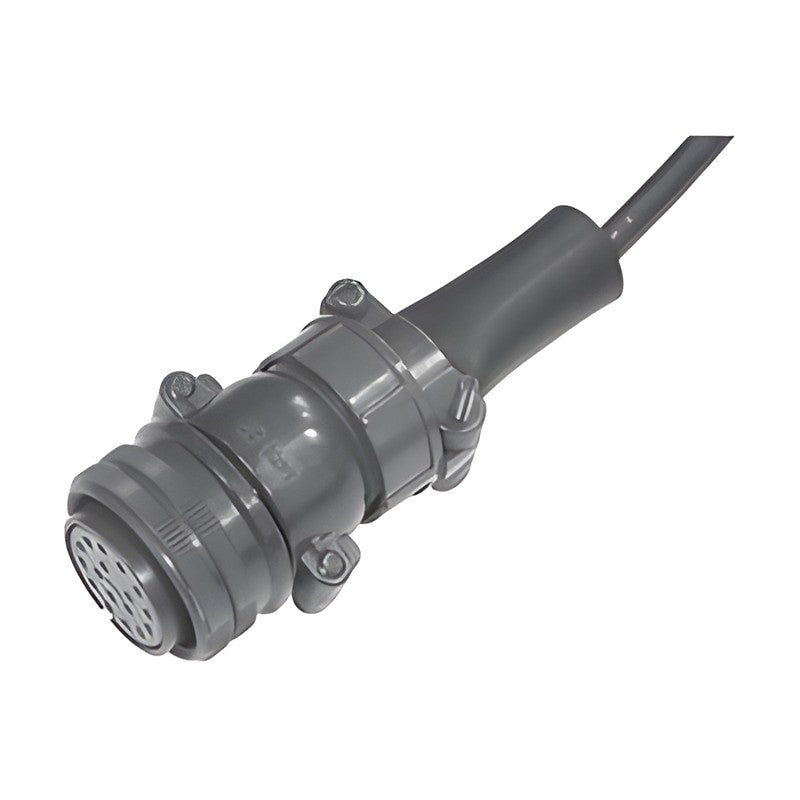

Encoder connector MS3106B 20-29S or equivalent
Fixed cable UL2464 twisted pair shielded, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464 twisted pair shielded, ETFE insulation
Max. transmission length 50 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-ENECBL2M-L-MTH Cable: Fixed | Length: 2 m
SWM-ENECBL3M-L-MTH Cable: Fixed | Length: 3 m
SWM-ENECBL5M-L-MTH Cable: Fixed | Length: 5 m
SWM-ENECBL10M-L-MTH Cable: Fixed | Length: 10 m
SWM-ENECBL20M-L-MTH Cable: Fixed | Length: 20 m
SWM-ENECBL30M-L-MTH Cable: Fixed | Length: 30 m
SWM-ENECBL40M-L-MTH Cable: Fixed | Length: 40 m
SWM-ENECBL50M-L-MTH Cable: Fixed | Length: 50 m
SWM-ENECBL2M-H-MTH Cable: Moving | Length: 2 m | MITSUBISHI equivalent: MR-ENECBL2M-H-MTH
SWM-ENECBL3M-H-MTH Cable: Moving | Length: 3 m
SWM-ENECBL5M-H-MTH Cable: Moving | Length: 5 m | MITSUBISHI equivalent: MR-ENECBL5M-H-MTH
SWM-ENECBL10M-H-MTH Cable: Moving | Length: 10 m | MITSUBISHI equivalent: MR-ENECBL10M-H-MTH
SWM-ENECBL20M-H-MTH Cable: Moving | Length: 20 m | MITSUBISHI equivalent: MR-ENECBL20M-H-MTH
SWM-ENECBL30M-H-MTH Cable: Moving | Length: 30 m | MITSUBISHI equivalent: MR-ENECBL30M-H-MTH
SWM-ENECBL40M-H-MTH Cable: Moving | Length: 40 m | MITSUBISHI equivalent: MR-ENECBL40M-H-MTH
SWM-ENECBL50M-H-MTH Cable: Moving | Length: 50 m | MITSUBISHI equivalent: MR-ENECBL50M-H-MTH
Encoder CablesSamwon ACT
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J4 HG-JR 11-22 kW Encoder Cables

Brand Samwon ACT·Encoder Cables

Available part numbers (16)

SWM-ENECBL2M-L-MTH, SWM-ENECBL3M-L-MTH, SWM-ENECBL5M-L-MTH, SWM-ENECBL10M-L-MTH, SWM-ENECBL20M-L-MTH, SWM-ENECBL30M-L-MTH, SWM-ENECBL40M-L-MTH, SWM-ENECBL50M-L-MTH, SWM-ENECBL2M-H-MTH, SWM-ENECBL3M-H-MTH + 6 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-ENECBL2M-L-MTHCable: Fixed | Length: 2 m
SWM-ENECBL3M-L-MTHCable: Fixed | Length: 3 m
SWM-ENECBL5M-L-MTHCable: Fixed | Length: 5 m
SWM-ENECBL10M-L-MTHCable: Fixed | Length: 10 m
SWM-ENECBL20M-L-MTHCable: Fixed | Length: 20 m
SWM-ENECBL30M-L-MTHCable: Fixed | Length: 30 m
SWM-ENECBL40M-L-MTHCable: Fixed | Length: 40 m
SWM-ENECBL50M-L-MTHCable: Fixed | Length: 50 m
SWM-ENECBL2M-H-MTHCable: Moving | Length: 2 m | MITSUBISHI equivalent: MR-ENECBL2M-H-MTH
SWM-ENECBL3M-H-MTHCable: Moving | Length: 3 m
SWM-ENECBL5M-H-MTHCable: Moving | Length: 5 m | MITSUBISHI equivalent: MR-ENECBL5M-H-MTH
SWM-ENECBL10M-H-MTHCable: Moving | Length: 10 m | MITSUBISHI equivalent: MR-ENECBL10M-H-MTH
SWM-ENECBL20M-H-MTHCable: Moving | Length: 20 m | MITSUBISHI equivalent: MR-ENECBL20M-H-MTH
SWM-ENECBL30M-H-MTHCable: Moving | Length: 30 m | MITSUBISHI equivalent: MR-ENECBL30M-H-MTH
SWM-ENECBL40M-H-MTHCable: Moving | Length: 40 m | MITSUBISHI equivalent: MR-ENECBL40M-H-MTH
SWM-ENECBL50M-H-MTHCable: Moving | Length: 50 m | MITSUBISHI equivalent: MR-ENECBL50M-H-MTH
