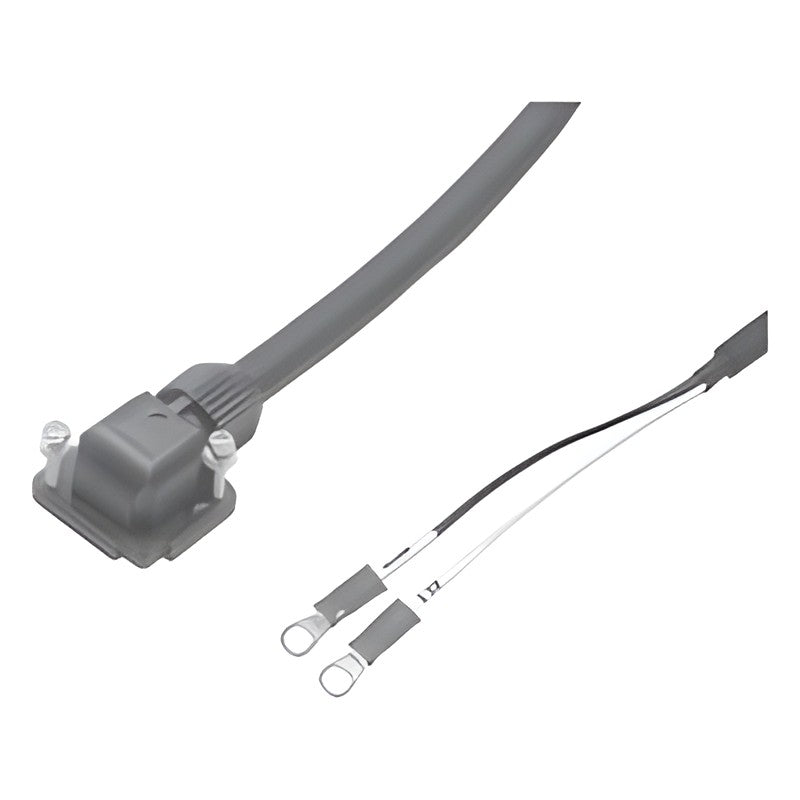

Samwon ACT J4 HG-KR/MR Direct Brake Cables

Samwon ACT J4 HG-KR/MR Direct Brake Cables

Direct-connection brake cables (up to 30 m) for MITSUBISHI J4 HG-KR / HG-MR servo motors with brake.

Key features

  • Direct brake cable for J4 HG-KR/MR motors, up to 30 m
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector JAE JN4FT02SJ1 or equivalent
Fixed cable UL2464, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464, ETFE insulation
Max. transmission length 30 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-BKS1CBL2M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A1-L
SWM-BKS1CBL3M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 3 m
SWM-BKS1CBL5M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A1-L
SWM-BKS1CBL10M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A1-L
SWM-BKS1CBL20M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 20 m
SWM-BKS1CBL30M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 30 m
SWM-BKS1CBL2M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A2-L
SWM-BKS1CBL3M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-BKS1CBL5M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A2-L
SWM-BKS1CBL10M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A2-L
SWM-BKS1CBL20M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 20 m
SWM-BKS1CBL30M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 30 m
SWM-BKS1CBL2M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A1-H
SWM-BKS1CBL3M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 3 m
SWM-BKS1CBL5M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A1-H
SWM-BKS1CBL10M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A1-H
SWM-BKS1CBL20M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 20 m
SWM-BKS1CBL30M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 30 m
SWM-BKS1CBL2M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A2-H
SWM-BKS1CBL3M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-BKS1CBL5M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A2-H
SWM-BKS1CBL10M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A2-H
SWM-BKS1CBL20M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 20 m
SWM-BKS1CBL30M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 30 m
Servo CablesSamwon ACT
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J4 HG-KR/MR Direct Brake Cables

Brand Samwon ACT·Servo Cables

Available part numbers (24)

SWM-BKS1CBL2M-A1-L, SWM-BKS1CBL3M-A1-L, SWM-BKS1CBL5M-A1-L, SWM-BKS1CBL10M-A1-L, SWM-BKS1CBL20M-A1-L, SWM-BKS1CBL30M-A1-L, SWM-BKS1CBL2M-A2-L, SWM-BKS1CBL3M-A2-L, SWM-BKS1CBL5M-A2-L, SWM-BKS1CBL10M-A2-L + 14 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-BKS1CBL2M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A1-L
SWM-BKS1CBL3M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 3 m
SWM-BKS1CBL5M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A1-L
SWM-BKS1CBL10M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A1-L
SWM-BKS1CBL20M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 20 m
SWM-BKS1CBL30M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 30 m
SWM-BKS1CBL2M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A2-L
SWM-BKS1CBL3M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-BKS1CBL5M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A2-L
SWM-BKS1CBL10M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A2-L
SWM-BKS1CBL20M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 20 m
SWM-BKS1CBL30M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 30 m
SWM-BKS1CBL2M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A1-H
SWM-BKS1CBL3M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 3 m
SWM-BKS1CBL5M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A1-H
SWM-BKS1CBL10M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A1-H
SWM-BKS1CBL20M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 20 m
SWM-BKS1CBL30M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 30 m
SWM-BKS1CBL2M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-BKS1CBL2M-A2-H
SWM-BKS1CBL3M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-BKS1CBL5M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-BKS1CBL5M-A2-H
SWM-BKS1CBL10M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-BKS1CBL10M-A2-H
SWM-BKS1CBL20M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 20 m
SWM-BKS1CBL30M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 30 m
