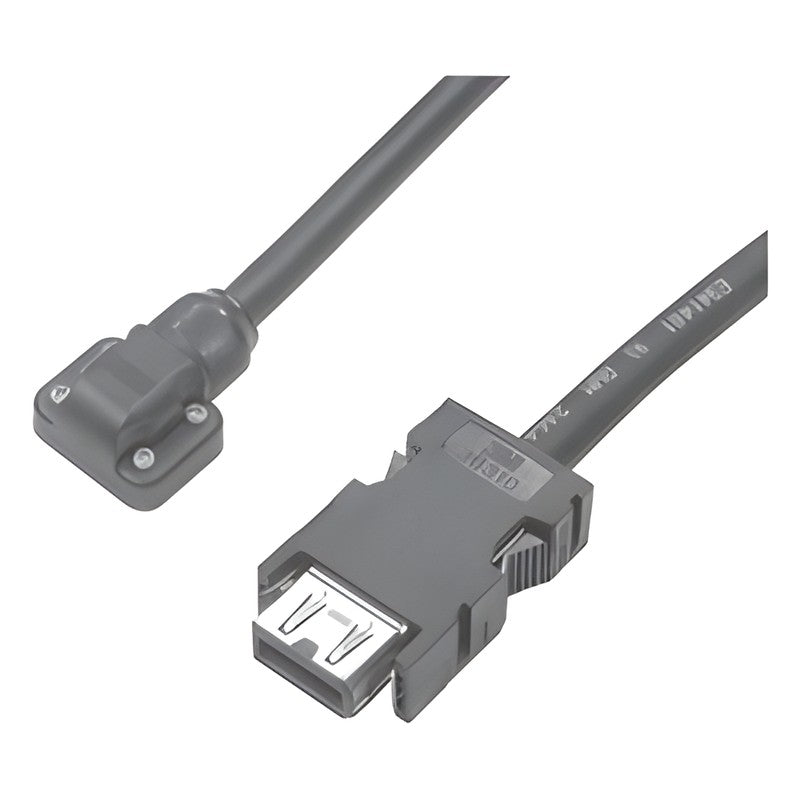

Samwon ACT J4 HG-KR/MR Direct Encoder Cables

Samwon ACT J4 HG-KR/MR Direct Encoder Cables

Direct-connection encoder cables (up to 10 m) for MITSUBISHI J4 HG-KR / HG-MR servo motors.

Key features

  • Direct encoder cable for J4 HG-KR/MR motors, up to 10 m
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent
Encoder connector Tyco Electronics 2174053-1 or equivalent
Fixed cable UL2464 twisted pair shielded, PVC insulation
Moving cable PROTERIAL (formerly HITACHI METALS) RT-FLEX UL2464 twisted pair shielded, ETFE insulation
Max. transmission length 10 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-J3ENCBL2M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A1-L
SWM-J3ENCBL3M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 3 m
SWM-J3ENCBL5M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A1-L
SWM-J3ENCBL10M-A1-L Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A1-L
SWM-J3ENCBL2M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A2-L
SWM-J3ENCBL3M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-J3ENCBL5M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A2-L
SWM-J3ENCBL10M-A2-L Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A2-L
SWM-J3ENCBL2M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A1-H
SWM-J3ENCBL3M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 3 m
SWM-J3ENCBL5M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A1-H
SWM-J3ENCBL10M-A1-H Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A1-H
SWM-J3ENCBL2M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A2-H
SWM-J3ENCBL3M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-J3ENCBL5M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A2-H
SWM-J3ENCBL10M-A2-H Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A2-H
Encoder CablesSamwon ACT
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J4 HG-KR/MR Direct Encoder Cables

Brand Samwon ACT·Encoder Cables

Available part numbers (16)

SWM-J3ENCBL2M-A1-L, SWM-J3ENCBL3M-A1-L, SWM-J3ENCBL5M-A1-L, SWM-J3ENCBL10M-A1-L, SWM-J3ENCBL2M-A2-L, SWM-J3ENCBL3M-A2-L, SWM-J3ENCBL5M-A2-L, SWM-J3ENCBL10M-A2-L, SWM-J3ENCBL2M-A1-H, SWM-J3ENCBL3M-A1-H + 6 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-J3ENCBL2M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A1-L
SWM-J3ENCBL3M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 3 m
SWM-J3ENCBL5M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A1-L
SWM-J3ENCBL10M-A1-LCable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A1-L
SWM-J3ENCBL2M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A2-L
SWM-J3ENCBL3M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-J3ENCBL5M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A2-L
SWM-J3ENCBL10M-A2-LCable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A2-L
SWM-J3ENCBL2M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A1-H
SWM-J3ENCBL3M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 3 m
SWM-J3ENCBL5M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A1-H
SWM-J3ENCBL10M-A1-HCable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A1-H
SWM-J3ENCBL2M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-J3ENCBL2M-A2-H
SWM-J3ENCBL3M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 3 m
SWM-J3ENCBL5M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-J3ENCBL5M-A2-H
SWM-J3ENCBL10M-A2-HCable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-J3ENCBL10M-A2-H
