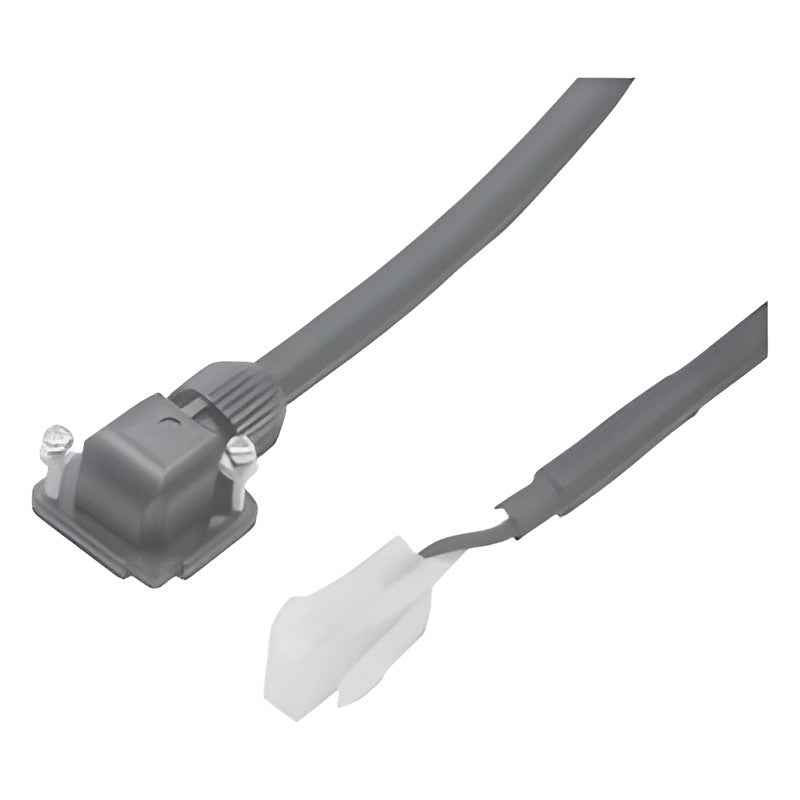

Samwon ACT J4 HG-KR/MR Extension Brake Cables

Samwon ACT J4 HG-KR/MR Extension Brake Cables

Relay-type brake cable set for MITSUBISHI J4 HG-KR / HG-MR motors beyond 10 m: 0.3 m motor-side relay cable plus amplifier-side extension cable.

Key features

  • For runs over 10 m: motor-side relay cable and amplifier-side extension cable used as a set
  • Motor-side relay cable made in 0.3 m fixed type only
  • Clean-room high-flex and medium-flex cables also available (IPA certified)
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector JAE JN4FT02SJ1 or equivalent
Junction connector MOLEX 5557-02 (motor side) / 5559-02 (amplifier side) or equivalent
Motor-side fixed cable UL2464, PVC insulation
Amplifier-side fixed cable VCT, PVC insulation
Amplifier-side moving cable KURAMO VCTF23NXX UL2517 2-core, heat-resistant insulation
Max. transmission length 50 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-BKS2CBL03M-A1-L Type: Motor-side relay cable | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-BKS2CBL03M-A1-L
SWM-BKS2CBL03M-A2-L Type: Motor-side relay cable | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-BKS2CBL03M-A2-L
BKCNK-20L Type: Amplifier-side extension cable | Cable: Fixed | Length: 20 m
BKCNK-30L Type: Amplifier-side extension cable | Cable: Fixed | Length: 30 m
BKCNK-40L Type: Amplifier-side extension cable | Cable: Fixed | Length: 40 m
BKCNK-50L Type: Amplifier-side extension cable | Cable: Fixed | Length: 50 m
BKCNK-20H Type: Amplifier-side extension cable | Cable: Moving | Length: 20 m
BKCNK-30H Type: Amplifier-side extension cable | Cable: Moving | Length: 30 m
BKCNK-40H Type: Amplifier-side extension cable | Cable: Moving | Length: 40 m
BKCNK-50H Type: Amplifier-side extension cable | Cable: Moving | Length: 50 m
