• Samwon ACT J4 HG-KR/MR Extension Encoder Cables
1 1

Samwon ACT J4 HG-KR/MR Extension Encoder Cables

Samwon ACT J4 HG-KR/MR Extension Encoder Cables

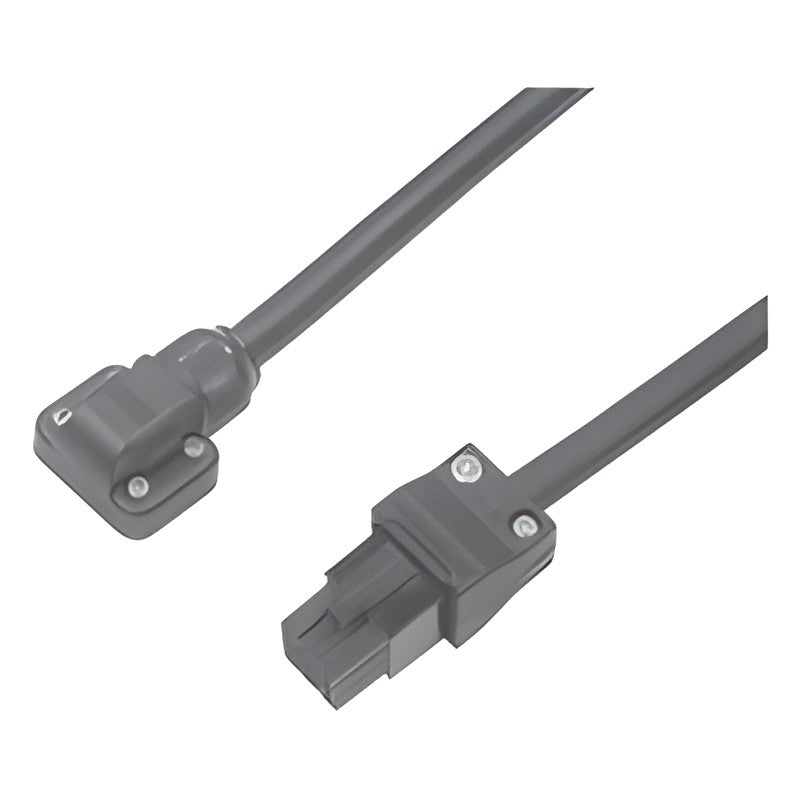

Relay-type encoder cable set for MITSUBISHI J4 HG-KR / HG-MR motors beyond 10 m: 0.3 m encoder-side relay cable plus amplifier-side extension cable.

Key features

  • For runs over 10 m: encoder-side relay cable and amplifier-side extension cable used as a set
  • Encoder-side relay cable made in 0.3 m fixed type only
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent
Junction connector AMP 1-172169-9 (motor side) / 1-172161-9 (amplifier side) with housing or equivalent
Encoder connector Tyco Electronics 2174053-1 or equivalent
Fixed cable UL2464 twisted pair shielded, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464 twisted pair shielded, ETFE insulation
Max. transmission length 50 m (longer on request)
Cable color Black
Length tolerance +50 to +100 mm
SWM-J3JCBL03M-A1-L Type: Encoder-side relay cable | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-J3JCBL03M-A1-L
SWM-J3JCBL03M-A2-L Type: Encoder-side relay cable | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-J3JCBL03M-A2-L
SWM-EKCBL20M-L Type: Amplifier-side extension cable | Cable: Fixed | Length: 20 m | MITSUBISHI equivalent: MR-EKCBL20M-L
SWM-EKCBL30M-L Type: Amplifier-side extension cable | Cable: Fixed | Length: 30 m | MITSUBISHI equivalent: MR-EKCBL30M-L
SWM-EKCBL40M-L Type: Amplifier-side extension cable | Cable: Fixed | Length: 40 m
SWM-EKCBL50M-L Type: Amplifier-side extension cable | Cable: Fixed | Length: 50 m
SWM-EKCBL20M-H Type: Amplifier-side extension cable | Cable: Moving | Length: 20 m | MITSUBISHI equivalent: MR-EKCBL20M-H
SWM-EKCBL30M-H Type: Amplifier-side extension cable | Cable: Moving | Length: 30 m | MITSUBISHI equivalent: MR-EKCBL30M-H
SWM-EKCBL40M-H Type: Amplifier-side extension cable | Cable: Moving | Length: 40 m | MITSUBISHI equivalent: MR-EKCBL40M-H
SWM-EKCBL50M-H Type: Amplifier-side extension cable | Cable: Moving | Length: 50 m | MITSUBISHI equivalent: MR-EKCBL50M-H
