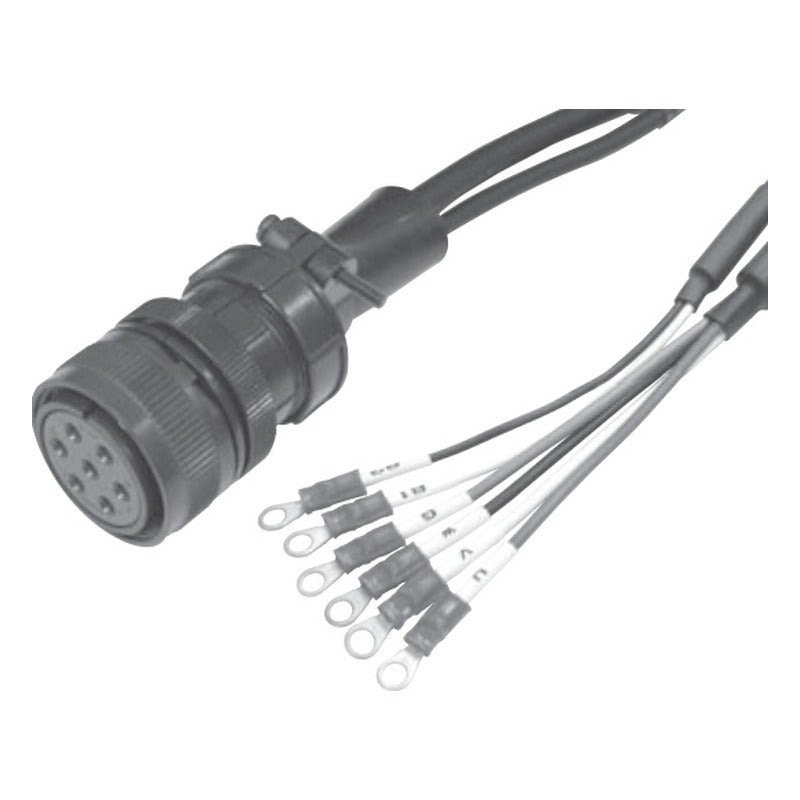

Samwon ACT J4 HG-RR / HG-UR Motor Power Cables (PWCNS1/PWCNS2)

Samwon ACT J4 HG-RR / HG-UR Motor Power Cables (PWCNS1/PWCNS2)

Motor power cables and brake-integrated power cables with straight or space-saving elbow MS connector for MITSUBISHI J4 HG-RR and HG-UR servo motors.

Key features

  • Power cable for J4 HG-RR and HG-UR motors
  • Brake-integrated power cable versions for HG-RR[]B motors
  • HG-UR202B/352B/502B have a separate brake connector: order the BKCN brake cable together
  • Standard straight or space-saving elbow motor connector selectable
  • Clean-room high-flex and medium-flex cables also available (IPA certified)
  • Cable length can be specified freely (made to order in 100 mm steps)

Specifications

Motor connector PWCNS1: MS3106B 22-23S (straight) / MS3108B 22-23S (elbow); PWCNS2: MS3106B 24-10S / MS3108B 24-10S, or equivalent
Fixed cable Up to 1.5 kW: UL2464, PVC insulation; 2.0-5.0 kW: VCT, PVC insulation
Moving cable Up to 1.5 kW: KURAMO VCTF23NXX UL2517 300 V 4-core; 2.0-5.0 kW: KURAMO VCT531XX UL2501 600 V 4-core
Max. transmission length 50 m
Cable color Black
Length tolerance +50 to +100 mm
PWCNS1-2LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50LS-20J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50LS-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2HS-20J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2HS-35J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3HS-20J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3HS-35J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5HS-20J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5HS-35J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10HS-20J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10HS-35J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20HS-20J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20HS-35J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30HS-20J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30HS-35J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40HS-20J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40HS-35J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50HS-20J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50HS-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50HS-35J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS2-2LS-55 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3LS-55 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5LS-55 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10LS-55 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20LS-55 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30LS-55 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40LS-55 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50LS-55 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50LS-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2HS-55 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3HS-55 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5HS-55 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10HS-55 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20HS-55 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30HS-55 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40HS-55 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50HS-55 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50HS-55/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS1-2LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50LB-20J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50LB-20J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50LB-35J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50LB-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2HB-20J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2HB-35J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3HB-20J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3HB-35J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5HB-20J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5HB-35J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10HB-20J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10HB-35J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20HB-20J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20HB-35J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30HB-20J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30HB-35J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40HB-20J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40HB-35J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50HB-20J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50HB-20J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50HB-35J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50HB-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS2-2LB-55 Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3LB-55 Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5LB-55 Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10LB-55 Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20LB-55 Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30LB-55 Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40LB-55 Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50LB-55 Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50LB-55/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2HB-55 Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3HB-55 Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5HB-55 Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10HB-55 Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20HB-55 Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30HB-55 Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40HB-55 Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50HB-55 Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50HB-55/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS1-2LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-2LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-3LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-3LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-5LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-5LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-10LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-10LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-20LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-20LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-30LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-30LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-40LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-40LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-50LS-125J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-50LS-125J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-2HS-125J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-2HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-3HS-125J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-3HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-5HS-125J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-5HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-10HS-125J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-10HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-20HS-125J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-20HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-30HS-125J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-30HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-40HS-125J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-40HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-50HS-125J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-50HS-125J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Motors: J4 HG-UR72
PWCNS2-2LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50LS-35J3 Connector: Standard straight | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50LS-35J3/L Connector: Space-saving elbow | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2HS-35J3 Connector: Standard straight | Cable: Moving | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3HS-35J3 Connector: Standard straight | Cable: Moving | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5HS-35J3 Connector: Standard straight | Cable: Moving | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10HS-35J3 Connector: Standard straight | Cable: Moving | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20HS-35J3 Connector: Standard straight | Cable: Moving | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30HS-35J3 Connector: Standard straight | Cable: Moving | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40HS-35J3 Connector: Standard straight | Cable: Moving | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50HS-35J3 Connector: Standard straight | Cable: Moving | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50HS-35J3/L Connector: Space-saving elbow | Cable: Moving | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
Servo CablesSamwon ACT
256 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J4 HG-RR / HG-UR Motor Power Cables (PWCNS1/PWCNS2)

Brand Samwon ACT·Servo Cables

Available part numbers (256)

PWCNS1-2LS-20J3, PWCNS1-2LS-20J3/L, PWCNS1-2LS-35J3, PWCNS1-2LS-35J3/L, PWCNS1-3LS-20J3, PWCNS1-3LS-20J3/L, PWCNS1-3LS-35J3, PWCNS1-3LS-35J3/L, PWCNS1-5LS-20J3, PWCNS1-5LS-20J3/L + 246 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PWCNS1-2LS-20J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2LS-35J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3LS-20J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3LS-35J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5LS-20J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5LS-35J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10LS-20J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10LS-35J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20LS-20J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20LS-35J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30LS-20J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30LS-35J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40LS-20J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40LS-35J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50LS-20J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50LS-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50LS-35J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2HS-20J3Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-2HS-35J3Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-2HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3HS-20J3Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-3HS-35J3Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-3HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5HS-20J3Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-5HS-35J3Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-5HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10HS-20J3Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-10HS-35J3Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-10HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20HS-20J3Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-20HS-35J3Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-20HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30HS-20J3Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-30HS-35J3Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-30HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40HS-20J3Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-40HS-35J3Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-40HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50HS-20J3Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50HS-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR103, HG-RR153, HG-UR152
PWCNS1-50HS-35J3Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS1-50HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR203
PWCNS2-2LS-55Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3LS-55Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5LS-55Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10LS-55Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20LS-55Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30LS-55Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40LS-55Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50LS-55Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50LS-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2HS-55Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-2HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3HS-55Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-3HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5HS-55Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-5HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10HS-55Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-10HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20HS-55Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-20HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30HS-55Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-30HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40HS-55Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-40HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50HS-55Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS2-50HS-55/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power | Motors: J4 HG-RR353, HG-RR503, HG-UR352, HG-UR352B, HG-UR502, HG-UR502B
PWCNS1-2LB-20J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2LB-35J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3LB-20J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3LB-35J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5LB-20J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5LB-35J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10LB-20J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10LB-35J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20LB-20J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20LB-35J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30LB-20J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30LB-35J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40LB-20J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40LB-35J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50LB-20J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50LB-20J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50LB-35J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50LB-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2HB-20J3Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-2HB-35J3Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-2HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3HB-20J3Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-3HB-35J3Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-3HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5HB-20J3Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-5HB-35J3Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-5HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10HB-20J3Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-10HB-35J3Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-10HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20HB-20J3Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-20HB-35J3Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-20HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30HB-20J3Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-30HB-35J3Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-30HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40HB-20J3Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-40HB-35J3Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-40HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50HB-20J3Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50HB-20J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR103B, HG-RR153B
PWCNS1-50HB-35J3Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS1-50HB-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR203B
PWCNS2-2LB-55Connector: Standard straight | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3LB-55Connector: Standard straight | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5LB-55Connector: Standard straight | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10LB-55Connector: Standard straight | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20LB-55Connector: Standard straight | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30LB-55Connector: Standard straight | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40LB-55Connector: Standard straight | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50LB-55Connector: Standard straight | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50LB-55/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2HB-55Connector: Standard straight | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-2HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3HB-55Connector: Standard straight | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-3HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5HB-55Connector: Standard straight | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-5HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10HB-55Connector: Standard straight | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-10HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20HB-55Connector: Standard straight | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-20HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30HB-55Connector: Standard straight | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-30HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40HB-55Connector: Standard straight | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-40HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50HB-55Connector: Standard straight | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS2-50HB-55/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Construction: Power + Brake integrated | Motors: J4 HG-RR353B, HG-RR503B
PWCNS1-2LS-125J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-2LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-3LS-125J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-3LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-5LS-125J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-5LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-10LS-125J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-10LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-20LS-125J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-20LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-30LS-125J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-30LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-40LS-125J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-40LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-50LS-125J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-50LS-125J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-2HS-125J3Connector: Standard straight | Cable: Moving | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-2HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Motors: J4 HG-UR72
PWCNS1-3HS-125J3Connector: Standard straight | Cable: Moving | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-3HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Motors: J4 HG-UR72
PWCNS1-5HS-125J3Connector: Standard straight | Cable: Moving | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-5HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Motors: J4 HG-UR72
PWCNS1-10HS-125J3Connector: Standard straight | Cable: Moving | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-10HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Motors: J4 HG-UR72
PWCNS1-20HS-125J3Connector: Standard straight | Cable: Moving | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-20HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Motors: J4 HG-UR72
PWCNS1-30HS-125J3Connector: Standard straight | Cable: Moving | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-30HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Motors: J4 HG-UR72
PWCNS1-40HS-125J3Connector: Standard straight | Cable: Moving | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-40HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Motors: J4 HG-UR72
PWCNS1-50HS-125J3Connector: Standard straight | Cable: Moving | Length: 50 m | Motors: J4 HG-UR72
PWCNS1-50HS-125J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Motors: J4 HG-UR72
PWCNS2-2LS-35J3Connector: Standard straight | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3LS-35J3Connector: Standard straight | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5LS-35J3Connector: Standard straight | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10LS-35J3Connector: Standard straight | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20LS-35J3Connector: Standard straight | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30LS-35J3Connector: Standard straight | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40LS-35J3Connector: Standard straight | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50LS-35J3Connector: Standard straight | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50LS-35J3/LConnector: Space-saving elbow | Cable: Fixed | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2HS-35J3Connector: Standard straight | Cable: Moving | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-2HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 2 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3HS-35J3Connector: Standard straight | Cable: Moving | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-3HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 3 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5HS-35J3Connector: Standard straight | Cable: Moving | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-5HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 5 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10HS-35J3Connector: Standard straight | Cable: Moving | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-10HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 10 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20HS-35J3Connector: Standard straight | Cable: Moving | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-20HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 20 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30HS-35J3Connector: Standard straight | Cable: Moving | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-30HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 30 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40HS-35J3Connector: Standard straight | Cable: Moving | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-40HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 40 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50HS-35J3Connector: Standard straight | Cable: Moving | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B
PWCNS2-50HS-35J3/LConnector: Space-saving elbow | Cable: Moving | Length: 50 m | Motors: J4 HG-UR202, HG-UR202B

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Electrical & Lighting →
