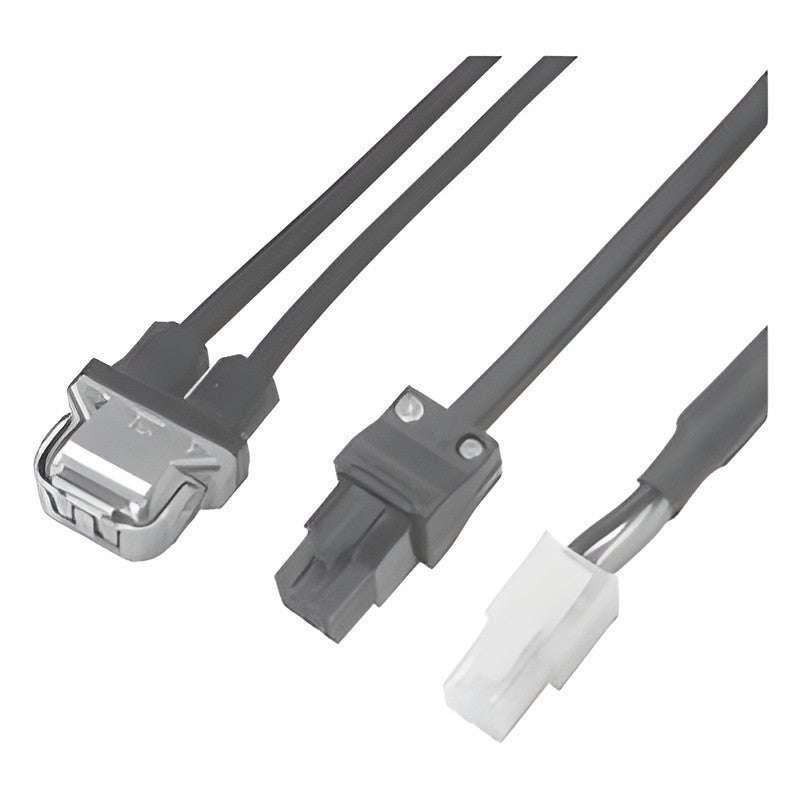

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) 2-Branch Relay / Extension Servo Cables

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) 2-Branch Relay / Extension Servo Cables

Relay and extension servo cable sets (encoder, power, brake) for MITSUBISHI J5 HK-KT/MT/RT (1.0-2.0 kW) motors at distances beyond 10 m, up to 50 m.

Key features

  • Motor-side 0.3 m relay cable (IP65 motor side / IP20 relay side) combined with amplifier-side extension cables
  • Encoder, power and power + brake extension cables up to 50 m
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector Hirose MT50W-8D/2D4ES-CVLD(7.5) or equivalent
Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent
Encoder junction connector TE 1-172169-9 (motor side) / 1-172161-9 (amplifier side) or equivalent
Power junction connector MOLEX 5557-06 / 5559-06 (with brake), 5557-04 / 5559-04 (without brake) or equivalent
Fixed cable UL, PVC insulation, PVC sheath
Moving cable UL, ETFE insulation, PVC sheath
Max. transmission length 50 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-AEP2J10CBL03M-A1-L Type: Motor-side relay cable, Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEP2J10CBL03M-A1-L
SWM-AEPB2J10CBL03M-A1-L Type: Motor-side relay cable, Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEPB2J10CBL03M-A1-L
SWM-AEP2J10CBL03M-A2-L Type: Motor-side relay cable, Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEP2J10CBL03M-A2-L
SWM-AEPB2J10CBL03M-A2-L Type: Motor-side relay cable, Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEPB2J10CBL03M-A2-L
PWCNK2-20LB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 20 m
PWCNK2-30LB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 30 m
PWCNK2-40LB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 40 m
PWCNK2-50LB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 50 m
PWCNK2-20HB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 20 m
PWCNK2-30HB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 30 m
PWCNK2-40HB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 40 m
PWCNK2-50HB-J5 Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 50 m
SWM-AEKCBL20M-L Type: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 20 m | MITSUBISHI equivalent: MR-AEKCBL20M-L
SWM-AEKCBL30M-L Type: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 30 m | MITSUBISHI equivalent: MR-AEKCBL30M-L
SWM-AEKCBL40M-L Type: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 40 m
SWM-AEKCBL50M-L Type: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 50 m
SWM-AEKCBL20M-H Type: Encoder extension cable (amplifier side) | Cable: Moving | Length: 20 m | MITSUBISHI equivalent: MR-AEKCBL20M-H
SWM-AEKCBL30M-H Type: Encoder extension cable (amplifier side) | Cable: Moving | Length: 30 m | MITSUBISHI equivalent: MR-AEKCBL30M-H
SWM-AEKCBL40M-H Type: Encoder extension cable (amplifier side) | Cable: Moving | Length: 40 m | MITSUBISHI equivalent: MR-AEKCBL40M-H
SWM-AEKCBL50M-H Type: Encoder extension cable (amplifier side) | Cable: Moving | Length: 50 m | MITSUBISHI equivalent: MR-AEKCBL50M-H
Servo CablesSamwon ACT
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) 2-Branch Relay / Extension Servo Cables

Brand Samwon ACT·Servo Cables

Available part numbers (20)

SWM-AEP2J10CBL03M-A1-L, SWM-AEPB2J10CBL03M-A1-L, SWM-AEP2J10CBL03M-A2-L, SWM-AEPB2J10CBL03M-A2-L, PWCNK2-20LB-J5, PWCNK2-30LB-J5, PWCNK2-40LB-J5, PWCNK2-50LB-J5, PWCNK2-20HB-J5, PWCNK2-30HB-J5 + 10 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-AEP2J10CBL03M-A1-LType: Motor-side relay cable, Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEP2J10CBL03M-A1-L
SWM-AEPB2J10CBL03M-A1-LType: Motor-side relay cable, Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEPB2J10CBL03M-A1-L
SWM-AEP2J10CBL03M-A2-LType: Motor-side relay cable, Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEP2J10CBL03M-A2-L
SWM-AEPB2J10CBL03M-A2-LType: Motor-side relay cable, Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 0.3 m | MITSUBISHI equivalent: MR-AEPB2J10CBL03M-A2-L
PWCNK2-20LB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 20 m
PWCNK2-30LB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 30 m
PWCNK2-40LB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 40 m
PWCNK2-50LB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Fixed | Length: 50 m
PWCNK2-20HB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 20 m
PWCNK2-30HB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 30 m
PWCNK2-40HB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 40 m
PWCNK2-50HB-J5Type: Power + Brake extension cable (amplifier side) | Cable: Moving | Length: 50 m
SWM-AEKCBL20M-LType: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 20 m | MITSUBISHI equivalent: MR-AEKCBL20M-L
SWM-AEKCBL30M-LType: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 30 m | MITSUBISHI equivalent: MR-AEKCBL30M-L
SWM-AEKCBL40M-LType: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 40 m
SWM-AEKCBL50M-LType: Encoder extension cable (amplifier side) | Cable: Fixed | Length: 50 m
SWM-AEKCBL20M-HType: Encoder extension cable (amplifier side) | Cable: Moving | Length: 20 m | MITSUBISHI equivalent: MR-AEKCBL20M-H
SWM-AEKCBL30M-HType: Encoder extension cable (amplifier side) | Cable: Moving | Length: 30 m | MITSUBISHI equivalent: MR-AEKCBL30M-H
SWM-AEKCBL40M-HType: Encoder extension cable (amplifier side) | Cable: Moving | Length: 40 m | MITSUBISHI equivalent: MR-AEKCBL40M-H
SWM-AEKCBL50M-HType: Encoder extension cable (amplifier side) | Cable: Moving | Length: 50 m | MITSUBISHI equivalent: MR-AEKCBL50M-H
