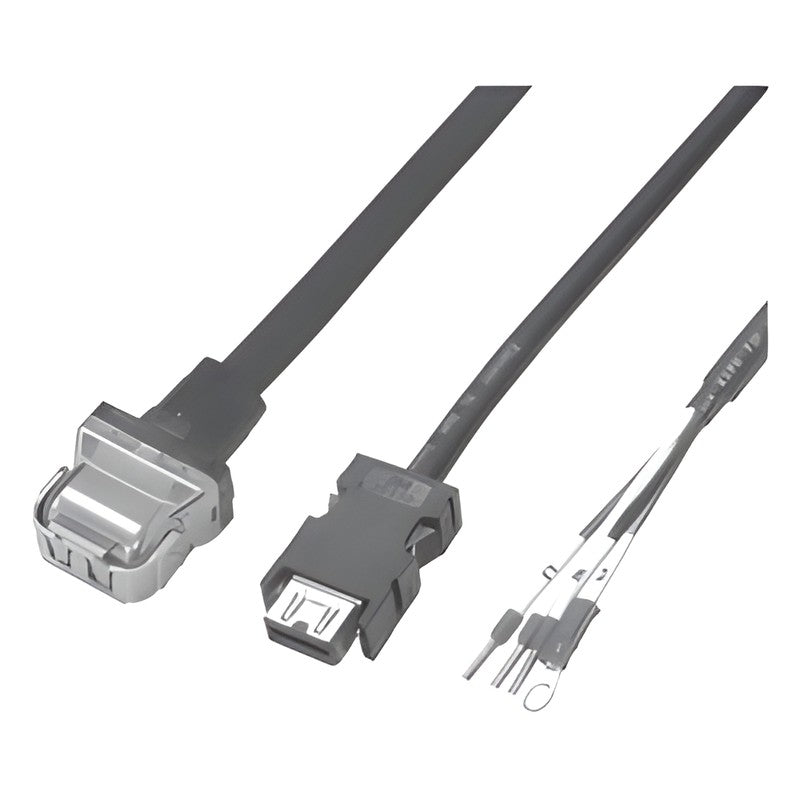

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) Integrated Direct Servo Motor Cables

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) Integrated Direct Servo Motor Cables

Direct-connection integrated servo cables carrying encoder, power and brake lines in one cable for MITSUBISHI J5 HK-KT/MT/RT (1.0-2.0 kW) motors.

Key features

  • Integrated encoder + power (+ brake) single cable for direct connection to the servo amplifier (motor side IP65)
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector Hirose MT50W-8D/2D4ES-CVL(11.9) or equivalent
Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent
Fixed cable UL, PVC insulation, PVC sheath
Moving cable UL, ETFE insulation, PVC sheath
Max. transmission length 10 m
Cable color Black
Amplifier 200 V AC class
Length tolerance +50 to +100 mm
SWM-AEP1CBL2M-A1-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A1-L
SWM-AEP1CBL5M-A1-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A1-L
SWM-AEP1CBL10M-A1-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A1-L
SWM-AEP1CBL2M-A2-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A2-L
SWM-AEP1CBL5M-A2-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A2-L
SWM-AEP1CBL10M-A2-L Construction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A2-L
SWM-AEP1CBL2M-A1-H Construction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A1-H
SWM-AEP1CBL5M-A1-H Construction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A1-H
SWM-AEP1CBL10M-A1-H Construction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A1-H
SWM-AEP1CBL2M-A2-H Construction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A2-H
SWM-AEP1CBL5M-A2-H Construction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A2-H
SWM-AEP1CBL10M-A2-H Construction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A2-H
SWM-AEPB1CBL2M-A1-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A1-L
SWM-AEPB1CBL5M-A1-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A1-L
SWM-AEPB1CBL10M-A1-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A1-L
SWM-AEPB1CBL2M-A2-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A2-L
SWM-AEPB1CBL5M-A2-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A2-L
SWM-AEPB1CBL10M-A2-L Construction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A2-L
SWM-AEPB1CBL2M-A1-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A1-H
SWM-AEPB1CBL5M-A1-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A1-H
SWM-AEPB1CBL10M-A1-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A1-H
SWM-AEPB1CBL2M-A2-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A2-H
SWM-AEPB1CBL5M-A2-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A2-H
SWM-AEPB1CBL10M-A2-H Construction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A2-H
Servo CablesSamwon ACT
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J5 HK-KT/MT/RT (1.0-2.0 kW) Integrated Direct Servo Motor Cables

Brand Samwon ACT·Servo Cables

Available part numbers (24)

SWM-AEP1CBL2M-A1-L, SWM-AEP1CBL5M-A1-L, SWM-AEP1CBL10M-A1-L, SWM-AEP1CBL2M-A2-L, SWM-AEP1CBL5M-A2-L, SWM-AEP1CBL10M-A2-L, SWM-AEP1CBL2M-A1-H, SWM-AEP1CBL5M-A1-H, SWM-AEP1CBL10M-A1-H, SWM-AEP1CBL2M-A2-H + 14 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-AEP1CBL2M-A1-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A1-L
SWM-AEP1CBL5M-A1-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A1-L
SWM-AEP1CBL10M-A1-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A1-L
SWM-AEP1CBL2M-A2-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A2-L
SWM-AEP1CBL5M-A2-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A2-L
SWM-AEP1CBL10M-A2-LConstruction: Encoder + Power | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A2-L
SWM-AEP1CBL2M-A1-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A1-H
SWM-AEP1CBL5M-A1-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A1-H
SWM-AEP1CBL10M-A1-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A1-H
SWM-AEP1CBL2M-A2-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEP1CBL2M-A2-H
SWM-AEP1CBL5M-A2-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEP1CBL5M-A2-H
SWM-AEP1CBL10M-A2-HConstruction: Encoder + Power | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEP1CBL10M-A2-H
SWM-AEPB1CBL2M-A1-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A1-L
SWM-AEPB1CBL5M-A1-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A1-L
SWM-AEPB1CBL10M-A1-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A1-L
SWM-AEPB1CBL2M-A2-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A2-L
SWM-AEPB1CBL5M-A2-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A2-L
SWM-AEPB1CBL10M-A2-LConstruction: Encoder + Power + Brake | Cable: Fixed | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A2-L
SWM-AEPB1CBL2M-A1-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A1-H
SWM-AEPB1CBL5M-A1-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A1-H
SWM-AEPB1CBL10M-A1-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A1 (load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A1-H
SWM-AEPB1CBL2M-A2-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 2 m | MITSUBISHI equivalent: MR-AEPB1CBL2M-A2-H
SWM-AEPB1CBL5M-A2-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 5 m | MITSUBISHI equivalent: MR-AEPB1CBL5M-A2-H
SWM-AEPB1CBL10M-A2-HConstruction: Encoder + Power + Brake | Cable: Moving | Lead-out: A2 (anti-load side) | Length: 10 m | MITSUBISHI equivalent: MR-AEPB1CBL10M-A2-H
