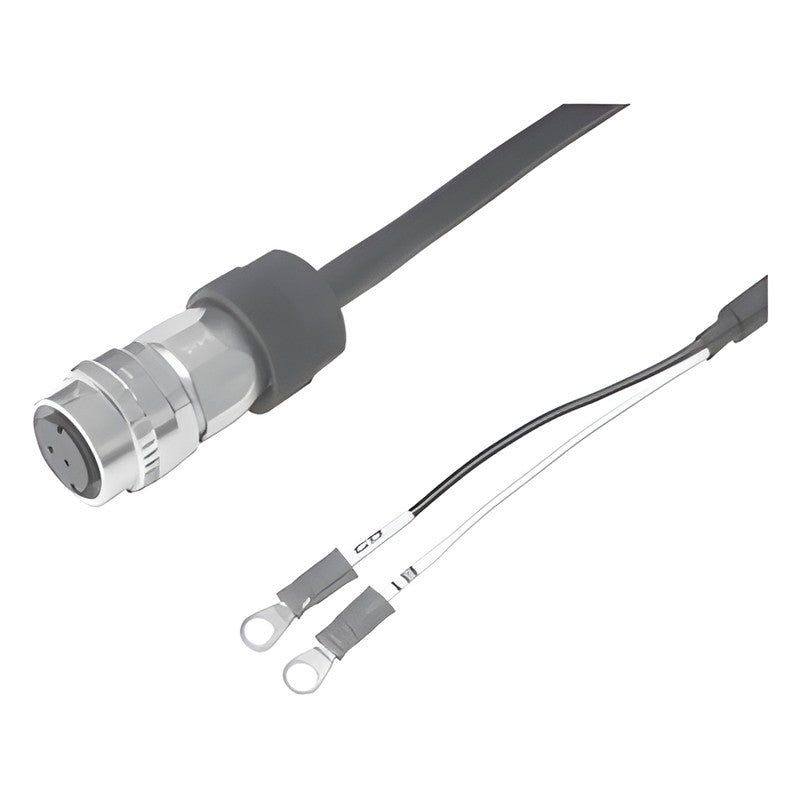

Samwon ACT J5 HK-ST, J4 HG-SR/JR Brake Cables (BKCNS1)

Samwon ACT J5 HK-ST, J4 HG-SR/JR Brake Cables (BKCNS1)

Brake cables with straight or space-saving elbow connector for MITSUBISHI J5 HK-ST and J4 HG-SR/JR servo motors with brake.

Key features

  • Brake cable for J5 HK-ST and J4 HG-SR[]B/JR motors
  • Standard straight or space-saving elbow motor connector
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Motor connector DDK CM10-SP2S-L or equivalent
Fixed cable UL2464, PVC insulation
Moving cable KURAMO VCTF23NXX UL2517 300 V 2-core, heat-resistant insulation
Max. transmission length 50 m
Cable color Black
Applicable motors J5 HK-ST; J4 HG-SR51B-702B, HG-JR53B-903B
Length tolerance +50 to +100 mm
BKCNS1-2L Connector: Standard straight | Cable: Fixed | Length: 2 m
BKCNS1-2L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 2 m
BKCNS1-3L Connector: Standard straight | Cable: Fixed | Length: 3 m
BKCNS1-3L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 3 m
BKCNS1-5L Connector: Standard straight | Cable: Fixed | Length: 5 m
BKCNS1-5L(L) Connector: Space-saving elbow | Length: 5 m
BKCNS1-10L Connector: Standard straight | Cable: Fixed | Length: 10 m
BKCNS1-10L(L) Connector: Space-saving elbow | Length: 10 m
BKCNS1-20L Connector: Standard straight | Cable: Fixed | Length: 20 m
BKCNS1-20L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 20 m
BKCNS1-30L Connector: Standard straight | Cable: Fixed | Length: 30 m
BKCNS1-30L(L) Connector: Space-saving elbow | Length: 30 m
BKCNS1-40L Connector: Standard straight | Cable: Fixed | Length: 40 m
BKCNS1-40L(L) Connector: Space-saving elbow | Length: 40 m
BKCNS1-50L Connector: Standard straight | Cable: Fixed | Length: 50 m
BKCNS1-50L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 50 m
BKCNS1-2H Connector: Standard straight | Cable: Moving | Length: 2 m
BKCNS1-2H(L) Connector: Space-saving elbow | Length: 2 m
BKCNS1-3H Connector: Standard straight | Cable: Moving | Length: 3 m
BKCNS1-3H(L) Connector: Space-saving elbow | Cable: Moving | Length: 3 m
BKCNS1-5H Connector: Standard straight | Cable: Moving | Length: 5 m
BKCNS1-5H(L) Connector: Space-saving elbow | Length: 5 m
BKCNS1-10H Connector: Standard straight | Cable: Moving | Length: 10 m
BKCNS1-10H(L) Connector: Space-saving elbow | Length: 10 m
BKCNS1-20H Connector: Standard straight | Cable: Moving | Length: 20 m
BKCNS1-20H(L) Connector: Space-saving elbow | Cable: Moving | Length: 20 m
BKCNS1-30H Connector: Standard straight | Cable: Moving | Length: 30 m
BKCNS1-30H(L) Connector: Space-saving elbow | Length: 30 m
BKCNS1-40H Connector: Standard straight | Cable: Moving | Length: 40 m
BKCNS1-40H(L) Connector: Space-saving elbow | Length: 40 m
BKCNS1-50H Connector: Standard straight | Cable: Moving | Length: 50 m
BKCNS1-50H(L) Connector: Space-saving elbow | Cable: Moving | Length: 50 m
Servo CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J5 HK-ST, J4 HG-SR/JR Brake Cables (BKCNS1)

Brand Samwon ACT·Servo Cables

Available part numbers (32)

BKCNS1-2L, BKCNS1-2L(L), BKCNS1-3L, BKCNS1-3L(L), BKCNS1-5L, BKCNS1-5L(L), BKCNS1-10L, BKCNS1-10L(L), BKCNS1-20L, BKCNS1-20L(L) + 22 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BKCNS1-2LConnector: Standard straight | Cable: Fixed | Length: 2 m
BKCNS1-2L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 2 m
BKCNS1-3LConnector: Standard straight | Cable: Fixed | Length: 3 m
BKCNS1-3L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 3 m
BKCNS1-5LConnector: Standard straight | Cable: Fixed | Length: 5 m
BKCNS1-5L(L)Connector: Space-saving elbow | Length: 5 m
BKCNS1-10LConnector: Standard straight | Cable: Fixed | Length: 10 m
BKCNS1-10L(L)Connector: Space-saving elbow | Length: 10 m
BKCNS1-20LConnector: Standard straight | Cable: Fixed | Length: 20 m
BKCNS1-20L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 20 m
BKCNS1-30LConnector: Standard straight | Cable: Fixed | Length: 30 m
BKCNS1-30L(L)Connector: Space-saving elbow | Length: 30 m
BKCNS1-40LConnector: Standard straight | Cable: Fixed | Length: 40 m
BKCNS1-40L(L)Connector: Space-saving elbow | Length: 40 m
BKCNS1-50LConnector: Standard straight | Cable: Fixed | Length: 50 m
BKCNS1-50L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 50 m
BKCNS1-2HConnector: Standard straight | Cable: Moving | Length: 2 m
BKCNS1-2H(L)Connector: Space-saving elbow | Length: 2 m
BKCNS1-3HConnector: Standard straight | Cable: Moving | Length: 3 m
BKCNS1-3H(L)Connector: Space-saving elbow | Cable: Moving | Length: 3 m
BKCNS1-5HConnector: Standard straight | Cable: Moving | Length: 5 m
BKCNS1-5H(L)Connector: Space-saving elbow | Length: 5 m
BKCNS1-10HConnector: Standard straight | Cable: Moving | Length: 10 m
BKCNS1-10H(L)Connector: Space-saving elbow | Length: 10 m
BKCNS1-20HConnector: Standard straight | Cable: Moving | Length: 20 m
BKCNS1-20H(L)Connector: Space-saving elbow | Cable: Moving | Length: 20 m
BKCNS1-30HConnector: Standard straight | Cable: Moving | Length: 30 m
BKCNS1-30H(L)Connector: Space-saving elbow | Length: 30 m
BKCNS1-40HConnector: Standard straight | Cable: Moving | Length: 40 m
BKCNS1-40H(L)Connector: Space-saving elbow | Length: 40 m
BKCNS1-50HConnector: Standard straight | Cable: Moving | Length: 50 m
BKCNS1-50H(L)Connector: Space-saving elbow | Cable: Moving | Length: 50 m
