Samwon ACT J5 HK-ST / J4 HG-SR/RR/UR/JR (0.5-9 kW) Encoder Cables

Samwon ACT J5 HK-ST / J4 HG-SR/RR/UR/JR (0.5-9 kW) Encoder Cables

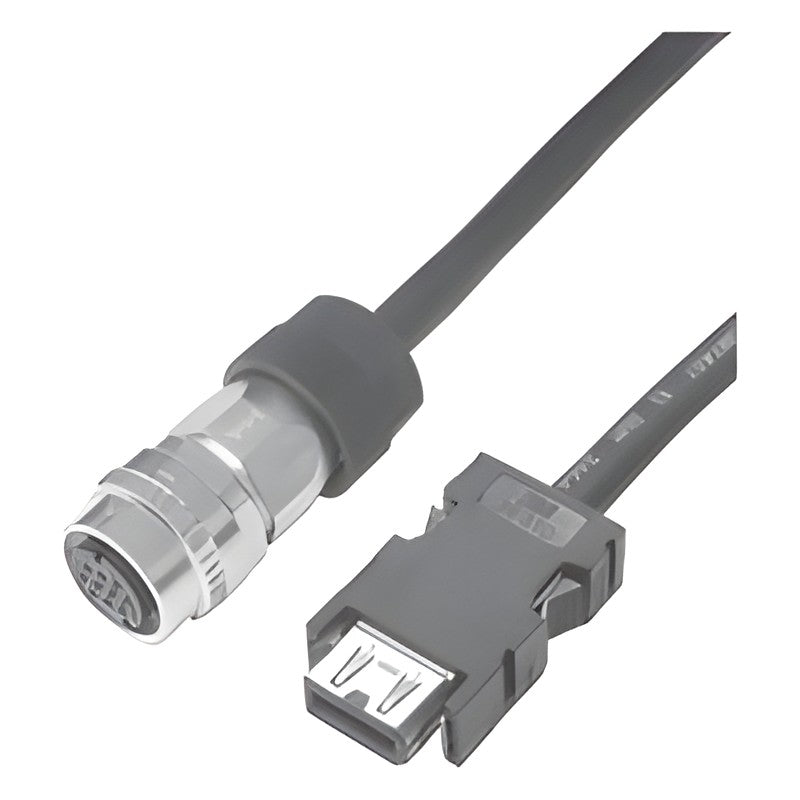

Encoder cables with straight or space-saving elbow encoder connector for MITSUBISHI J5 HK-ST and J4 HG-SR/RR/UR/JR (0.5-9 kW) servo motors.

Key features

  • Encoder cable for J5 HK-ST and J4 HG-SR/JR (0.5-9 kW), HG-RR and HG-UR motors
  • Standard straight or space-saving elbow encoder connector
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Fixed, moving and custom cables can be produced
  • Cable length can be specified freely (made to order in 100 mm steps)
  • Small-quantity orders (from 1 pc) with short lead time

Specifications

Amplifier connector 3M 36210-0100PL, 36310-3210-006 or MOLEX 54599-1019 or equivalent
Encoder connector Straight: DDK CM10-SP10S-M-D; elbow: DDK CM10-AP10S-M-D or equivalent
Fixed cable UL2464 twisted pair shielded, PVC insulation
Moving cable PROTERIAL RT-FLEX UL2464 twisted pair shielded, ETFE insulation
Max. transmission length 50 m (longer on request)
Cable color Black
Length tolerance +50 to +100 mm
MR-J3ENSCBL2M-L Connector: Standard straight | Cable: Fixed | Length: 2 m
MR-J3ENSCBL2M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 2 m
MR-J3ENSCBL3M-L Connector: Standard straight | Cable: Fixed | Length: 3 m
MR-J3ENSCBL3M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 3 m
MR-J3ENSCBL5M-L Connector: Standard straight | Cable: Fixed | Length: 5 m
MR-J3ENSCBL5M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 5 m
MR-J3ENSCBL10M-L Connector: Standard straight | Cable: Fixed | Length: 10 m
MR-J3ENSCBL10M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 10 m
MR-J3ENSCBL20M-L Connector: Standard straight | Cable: Fixed | Length: 20 m
MR-J3ENSCBL20M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 20 m
MR-J3ENSCBL30M-L Connector: Standard straight | Cable: Fixed | Length: 30 m
MR-J3ENSCBL30M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 30 m
MR-J3ENSCBL40M-L Connector: Standard straight | Cable: Fixed | Length: 40 m
MR-J3ENSCBL40M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 40 m
MR-J3ENSCBL50M-L Connector: Standard straight | Cable: Fixed | Length: 50 m
MR-J3ENSCBL50M-L(L) Connector: Space-saving elbow | Cable: Fixed | Length: 50 m
MR-J3ENSCBL2M-H Connector: Standard straight | Cable: Moving | Length: 2 m
MR-J3ENSCBL2M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 2 m
MR-J3ENSCBL3M-H Connector: Standard straight | Cable: Moving | Length: 3 m
MR-J3ENSCBL3M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 3 m
MR-J3ENSCBL5M-H Connector: Standard straight | Cable: Moving | Length: 5 m
MR-J3ENSCBL5M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 5 m
MR-J3ENSCBL10M-H Connector: Standard straight | Cable: Moving | Length: 10 m
MR-J3ENSCBL10M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 10 m
MR-J3ENSCBL20M-H Connector: Standard straight | Cable: Moving | Length: 20 m
MR-J3ENSCBL20M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 20 m
MR-J3ENSCBL30M-H Connector: Standard straight | Cable: Moving | Length: 30 m
MR-J3ENSCBL30M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 30 m
MR-J3ENSCBL40M-H Connector: Standard straight | Cable: Moving | Length: 40 m
MR-J3ENSCBL40M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 40 m
MR-J3ENSCBL50M-H Connector: Standard straight | Cable: Moving | Length: 50 m
MR-J3ENSCBL50M-H(L) Connector: Space-saving elbow | Cable: Moving | Length: 50 m
Encoder CablesSamwon ACT
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT J5 HK-ST / J4 HG-SR/RR/UR/JR (0.5-9 kW) Encoder Cables

Brand Samwon ACT·Encoder Cables

Available part numbers (32)

MR-J3ENSCBL2M-L, MR-J3ENSCBL2M-L(L), MR-J3ENSCBL3M-L, MR-J3ENSCBL3M-L(L), MR-J3ENSCBL5M-L, MR-J3ENSCBL5M-L(L), MR-J3ENSCBL10M-L, MR-J3ENSCBL10M-L(L), MR-J3ENSCBL20M-L, MR-J3ENSCBL20M-L(L) + 22 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MR-J3ENSCBL2M-LConnector: Standard straight | Cable: Fixed | Length: 2 m
MR-J3ENSCBL2M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 2 m
MR-J3ENSCBL3M-LConnector: Standard straight | Cable: Fixed | Length: 3 m
MR-J3ENSCBL3M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 3 m
MR-J3ENSCBL5M-LConnector: Standard straight | Cable: Fixed | Length: 5 m
MR-J3ENSCBL5M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 5 m
MR-J3ENSCBL10M-LConnector: Standard straight | Cable: Fixed | Length: 10 m
MR-J3ENSCBL10M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 10 m
MR-J3ENSCBL20M-LConnector: Standard straight | Cable: Fixed | Length: 20 m
MR-J3ENSCBL20M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 20 m
MR-J3ENSCBL30M-LConnector: Standard straight | Cable: Fixed | Length: 30 m
MR-J3ENSCBL30M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 30 m
MR-J3ENSCBL40M-LConnector: Standard straight | Cable: Fixed | Length: 40 m
MR-J3ENSCBL40M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 40 m
MR-J3ENSCBL50M-LConnector: Standard straight | Cable: Fixed | Length: 50 m
MR-J3ENSCBL50M-L(L)Connector: Space-saving elbow | Cable: Fixed | Length: 50 m
MR-J3ENSCBL2M-HConnector: Standard straight | Cable: Moving | Length: 2 m
MR-J3ENSCBL2M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 2 m
MR-J3ENSCBL3M-HConnector: Standard straight | Cable: Moving | Length: 3 m
MR-J3ENSCBL3M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 3 m
MR-J3ENSCBL5M-HConnector: Standard straight | Cable: Moving | Length: 5 m
MR-J3ENSCBL5M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 5 m
MR-J3ENSCBL10M-HConnector: Standard straight | Cable: Moving | Length: 10 m
MR-J3ENSCBL10M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 10 m
MR-J3ENSCBL20M-HConnector: Standard straight | Cable: Moving | Length: 20 m
MR-J3ENSCBL20M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 20 m
MR-J3ENSCBL30M-HConnector: Standard straight | Cable: Moving | Length: 30 m
MR-J3ENSCBL30M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 30 m
MR-J3ENSCBL40M-HConnector: Standard straight | Cable: Moving | Length: 40 m
MR-J3ENSCBL40M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 40 m
MR-J3ENSCBL50M-HConnector: Standard straight | Cable: Moving | Length: 50 m
MR-J3ENSCBL50M-H(L)Connector: Space-saving elbow | Cable: Moving | Length: 50 m
