Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|

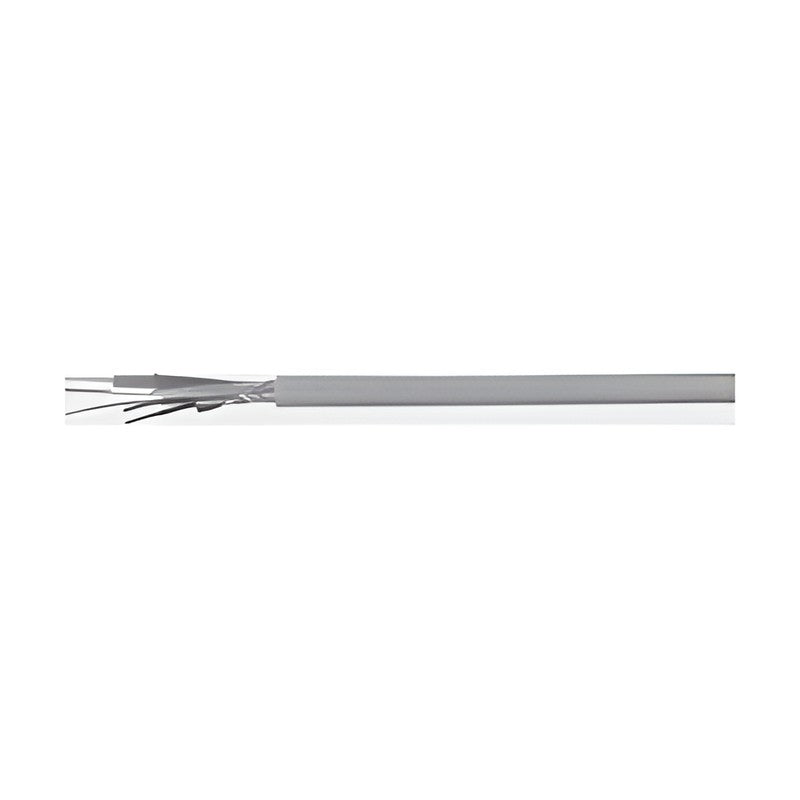

| KND-SB(THICK) | Type: DeviceNet Thick Cable, fixed | Conductors: data 18AWG x 1P, power 15AWG x 1P | Outer diameter: approx. 11.5 mm | Mass: 185 kg/km | Standard: UL13 (PLTC), CSA C22.2 No.210 | Temperature: -20 to +75 C | ||
| KND-SB(THIN) | Type: DeviceNet Thin Cable, fixed | Conductors: data 24AWG x 1P, power 22AWG x 1P | Outer diameter: approx. 7.0 mm | Mass: 65 kg/km | Standard: UL13 (CL2), CSA C22.2 No.210 | Temperature: -20 to +75 C | ||
| KND-SBZ(THICK) | Type: DeviceNet Thick Cable, moving | Conductors: data 18AWG x 1P, power 15AWG x 1P | Outer diameter: approx. 11.5 mm | Mass: 170 kg/km | Standard: UL 758 (AWG 2464), CSA C22.2 No.210 | Temperature: -20 to +80 C | ||
| KND-SBZ(THIN) | Type: DeviceNet Thin Cable, moving | Conductors: data 24AWG x 1P, power 22AWG x 1P | Outer diameter: approx. 7.5 mm | Mass: 75 kg/km | Standard: UL 758 (AWG 2464), CSA C22.2 No.210 | Temperature: -20 to +80 C |
Need a different model, or a part not listed here? Send us your parts list →
