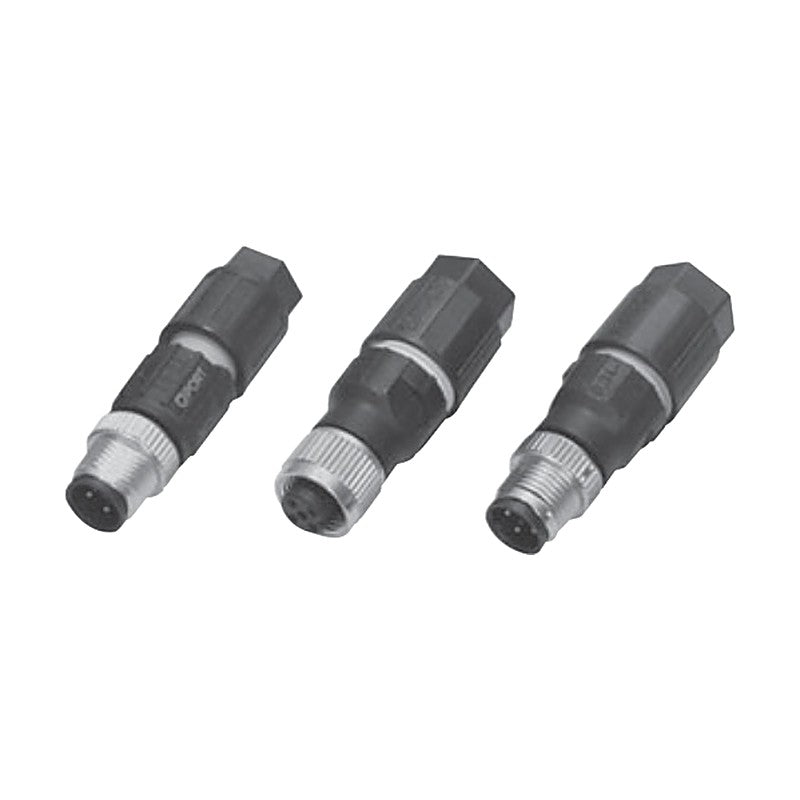

Samwon ACT M12A-I IDC Field-Wireable M12 Connectors

Samwon ACT M12A-I IDC Field-Wireable M12 Connectors

Field-assembled straight M12 A-coded 4-pole connectors with insulation displacement (IDC) termination.

Key features

  • IDC (insulation displacement connection) for easy field work and maintenance
  • IP65/67-rated, suitable for field wiring
  • Accepts a wide cable diameter range of 3.5-8 mm

Specifications

Coding A-coded
Poles 4
Termination IDC
Cable exit Straight
Rated current 4 A
Insulation resistance 100 MOhm
Insertion durability 100 cycles
Degree of protection IP65/67 (when mated)
Insulation material PVC / PE / PP / rubber
Operating temperature -25 to +80 C
Contact Bronze (CuSn), nickel/gold-plated
Coupling Zinc die-cast, nickel-plated
M12A-I4M-S46 Gender: Male | Rated voltage: 125 V | Cable diameter: 3.5-6.0 mm | Conductor: AWG26-22 (0.14-0.34 mm2)
M12A-I4F-S46 Gender: Female | Rated voltage: 125 V | Cable diameter: 3.5-6.0 mm | Conductor: AWG26-22 (0.14-0.34 mm2)
M12A-I4M-S48 Gender: Male | Rated voltage: 300 V | Cable diameter: 4.0-8.0 mm | Conductor: AWG22-18 (0.34-0.75 mm2)
M12A-I4F-S48 Gender: Female | Rated voltage: 300 V | Cable diameter: 4.0-8.0 mm | Conductor: AWG22-18 (0.34-0.75 mm2)
ConnectorsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT M12A-I IDC Field-Wireable M12 Connectors

Brand Samwon ACT·Connectors

Available part numbers (4)

M12A-I4M-S46, M12A-I4F-S46, M12A-I4M-S48, M12A-I4F-S48

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M12A-I4M-S46Gender: Male | Rated voltage: 125 V | Cable diameter: 3.5-6.0 mm | Conductor: AWG26-22 (0.14-0.34 mm2)
M12A-I4F-S46Gender: Female | Rated voltage: 125 V | Cable diameter: 3.5-6.0 mm | Conductor: AWG26-22 (0.14-0.34 mm2)
M12A-I4M-S48Gender: Male | Rated voltage: 300 V | Cable diameter: 4.0-8.0 mm | Conductor: AWG22-18 (0.34-0.75 mm2)
M12A-I4F-S48Gender: Female | Rated voltage: 300 V | Cable diameter: 4.0-8.0 mm | Conductor: AWG22-18 (0.34-0.75 mm2)
