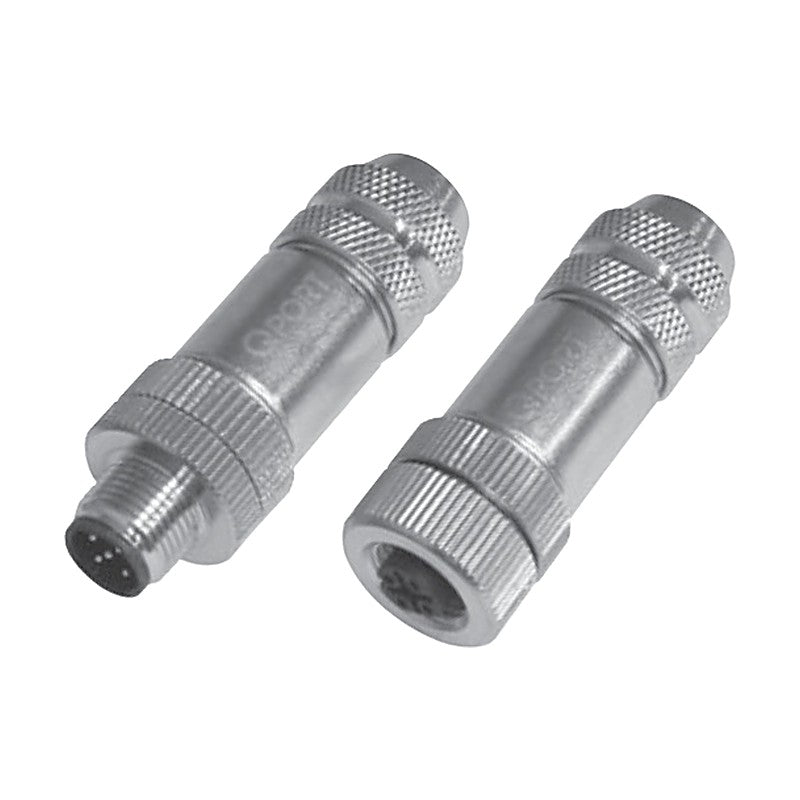

Samwon ACT M12B / M12D EMI-Shielded Screw-Termination M12 Connectors

Samwon ACT M12B / M12D EMI-Shielded Screw-Termination M12 Connectors

Field-wireable shielded M12 connectors with screw terminals, B-coded for PROFIBUS DP and D-coded for PROFINET, EtherCAT and Ethernet.

Key features

  • Screw-terminal connector assembled with a screwdriver for easy field work and maintenance
  • Suitable for BUS line connection of SIEMENS, TURCK, BRAD HARRISON (MOLEX) communication I/O modules
  • Plated surface provides EMI countermeasure
  • Standard M12 B-coded / D-coded connector suitable for IP67

Specifications

Termination Screw, shielded
Cable exit Straight
Suitable cable diameter 6-8 mm
Conductor size 0.25-0.75 mm2
Rated current 4 A
Insertion durability 100 cycles
Degree of protection IP67 (M12 mated)
Contact resistance 3 mOhm max.
Operating temperature -25 to +90 C
Contact Brass, gold-plated
Coupling / cover Brass, nickel-plated
M12B-P5M-S68 Coding: B-coded | Poles: 5 | Gender: Male | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M12B-P5F-S68 Coding: B-coded | Poles: 5 | Gender: Female | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M12D-P4M-S68 Coding: D-coded | Poles: 4 | Gender: Male | Rated voltage: 250 V | Rated impulse voltage: 2,500 V
M12D-P4F-S68 Coding: D-coded | Poles: 4 | Gender: Female | Rated voltage: 250 V | Rated impulse voltage: 2,500 V
ConnectorsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT M12B / M12D EMI-Shielded Screw-Termination M12 Connectors

Brand Samwon ACT·Connectors

Available part numbers (4)

M12B-P5M-S68, M12B-P5F-S68, M12D-P4M-S68, M12D-P4F-S68

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M12B-P5M-S68Coding: B-coded | Poles: 5 | Gender: Male | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M12B-P5F-S68Coding: B-coded | Poles: 5 | Gender: Female | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M12D-P4M-S68Coding: D-coded | Poles: 4 | Gender: Male | Rated voltage: 250 V | Rated impulse voltage: 2,500 V
M12D-P4F-S68Coding: D-coded | Poles: 4 | Gender: Female | Rated voltage: 250 V | Rated impulse voltage: 2,500 V
