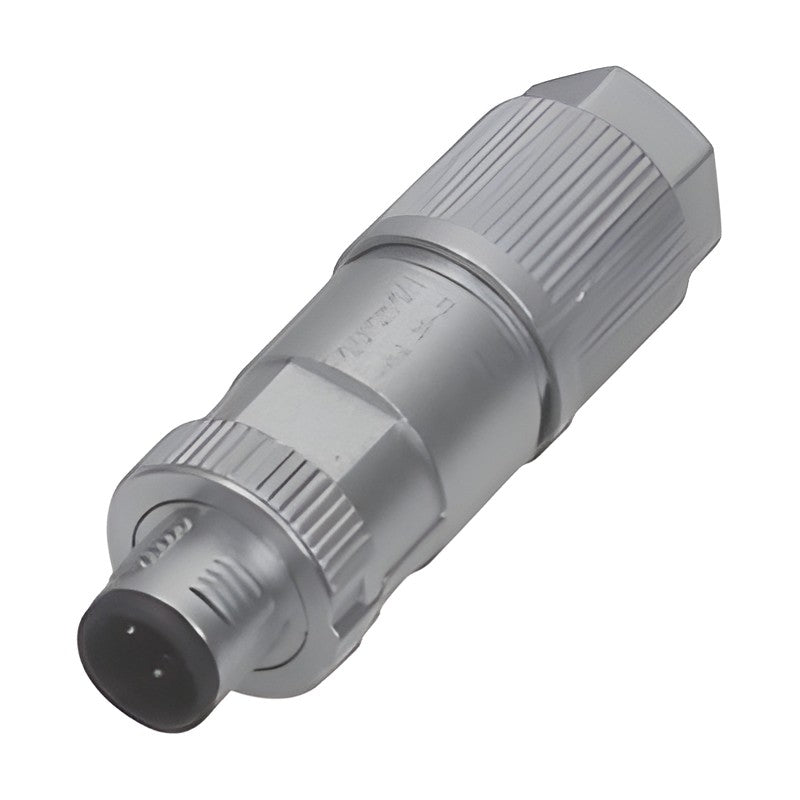

Samwon ACT M12D-Q4M-S59 EMI-Shielded IDC M12 D-coded Connector

Field-wireable shielded M12 D-coded 4-pole male connector with insulation displacement (IDC) termination for PROFINET and EtherCAT bus lines.

Key features

Suitable for PROFINET and EtherCAT communication I/O module BUS line connection
IDC (insulation displacement connection) for easy field assembly and maintenance
Plated surface provides EMI countermeasure
Standard M12 D-coded connector suitable for IP67
Accepts a wide cable diameter range of 5-9.7 mm

Specifications

Rated voltage	250 V AC/DC
Rated current	4 A
Insulation resistance	100 MOhm
Insertion durability	100 cycles
Degree of protection	IP65/67 (when mated)
Conductor	AWG24-20 (0.25-0.5 mm2)
Insulation diameter	0.75-2 mm
Insulation material	PVC/PE/PP/rubber
Operating temperature	-40 to +80 C
Contact	Bronze (CuSn), nickel/gold-plated
Housing	Zinc die-cast, nickel-plated

M12D-Q4M-S59

Poles: 4 | Gender: Male | Cable exit: Straight | Cable diameter: 5.0-9.7 mm
