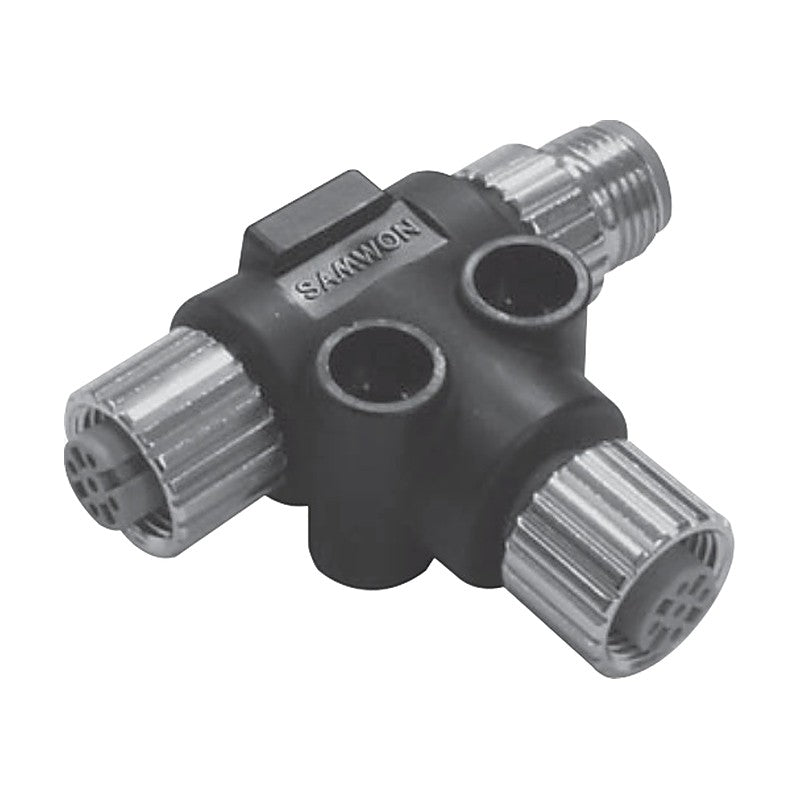

Samwon ACT M12T-5DN DeviceNet M12 T-Splitter Connector

M12 A-coded 5-pole T-type branch connector for DeviceNet thin-cable bus branching.

Key features

T-type connector with M12 connectors for DeviceNet thin cable BUS branching
IP67 protection suitable for field wiring
Mounting holes for easy installation

Specifications

Rated voltage	30 V
Rated current	3 A
Insulation resistance	1,000 MOhm min. (500 V DC)
Dielectric strength	1,500 V AC for 1 min
Degree of protection	IP67 (when mated)
Insertion durability	200 cycles min.
Operating temperature	-25 to +70 C
Cover / contact block	TPU / PA66
Contact	Brass, gold-plated

M12T-5DN

Poles: 5 | Branch: DeviceNet

ConnectorsSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT M12T-5DN DeviceNet M12 T-Splitter Connector

Brand Samwon ACT·Connectors

Available part numbers (1)

M12T-5DN
