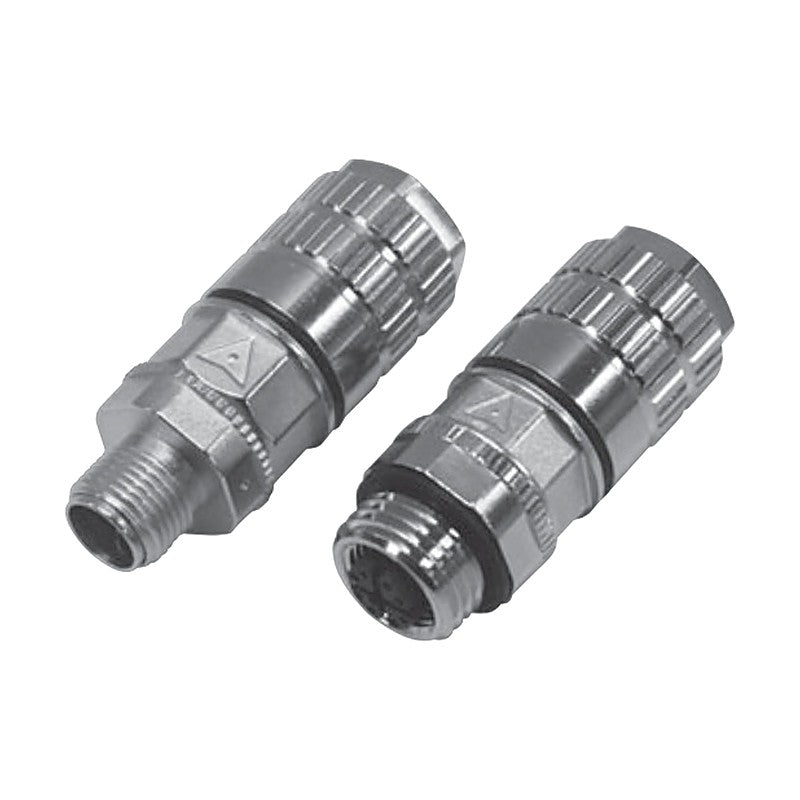

Samwon ACT M12X EMI-Shielded IDC M12 X-coded Cat.6A Connectors

Field-wireable die-cast M12 X-coded 8-pole connectors with IDC termination for Ethernet Cat.6A networks.

Key features

Network connector for vision cameras, BCR and image sensors
IDC M12 X-coded connector suitable for Ethernet Cat.6A
Plated surface provides EMI countermeasure
IP67 rated
Accepts a wide cable diameter range of 6.0-9.0 mm

Specifications

Category	Cat.6A
Termination	IDC, straight
Rated voltage	48 V AC/DC
Rated current	0.5 A
Degree of protection	IP67
Cable diameter	6.0-9.0 mm
Insulation diameter	0.95-1.55 mm
Operating temperature	-40 to +85 C
Housing	Die-cast
IDC contact	Brass, gold over nickel plated

M12X6AM-B1D		Gender: Male
M12X6AF-B1D		Gender: Female
