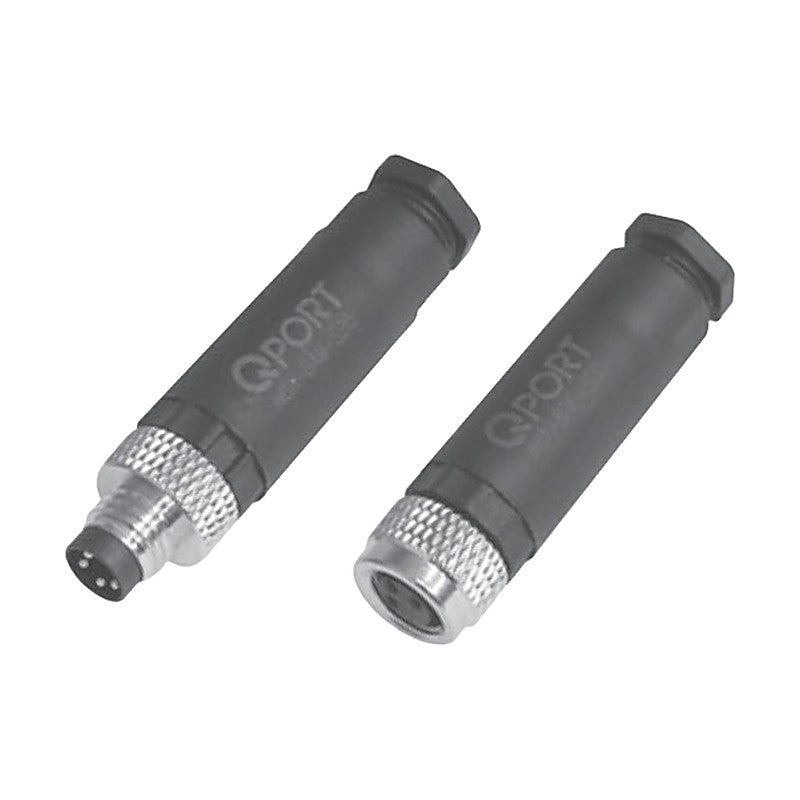

Samwon ACT M8A-B Screw-Termination Field-Wireable M8 Connectors

Samwon ACT M8A-B Screw-Termination Field-Wireable M8 Connectors

Field-assembled straight M8 3/4-pole connectors with screw terminals (hex wrench included).

Key features

  • Screw-terminal connector assembled with the included hex wrench for easy field work and maintenance
  • IP67-rated, suitable for field wiring; converting wiring to connectors simplifies maintenance
  • Accepts cable diameters of 3.5-5 mm

Specifications

Termination Screw
Cable exit Straight
Cable diameter 3.5-5 mm
Conductor size 0.14-0.5 mm2
Rated current 4 A
Insertion durability 100 cycles
Degree of protection IP67 (when mated)
Contact resistance 3 mOhm max.
Operating temperature -25 to +85 C
Contact Brass, gold-plated
Accessory Hex wrench (1 pc)
M8A-B3M-S35 Poles: 3 | Gender: Male | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M8A-B3F-S35 Poles: 3 | Gender: Female | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M8A-B4M-S35 Poles: 4 | Gender: Male | Rated voltage: 30 V | Rated impulse voltage: 800 V
M8A-B4F-S35 Poles: 4 | Gender: Female | Rated voltage: 30 V | Rated impulse voltage: 800 V
ConnectorsSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT M8A-B Screw-Termination Field-Wireable M8 Connectors

Brand Samwon ACT·Connectors

Available part numbers (4)

M8A-B3M-S35, M8A-B3F-S35, M8A-B4M-S35, M8A-B4F-S35

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M8A-B3M-S35Poles: 3 | Gender: Male | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M8A-B3F-S35Poles: 3 | Gender: Female | Rated voltage: 60 V | Rated impulse voltage: 1,500 V
M8A-B4M-S35Poles: 4 | Gender: Male | Rated voltage: 30 V | Rated impulse voltage: 800 V
M8A-B4F-S35Poles: 4 | Gender: Female | Rated voltage: 30 V | Rated impulse voltage: 800 V
