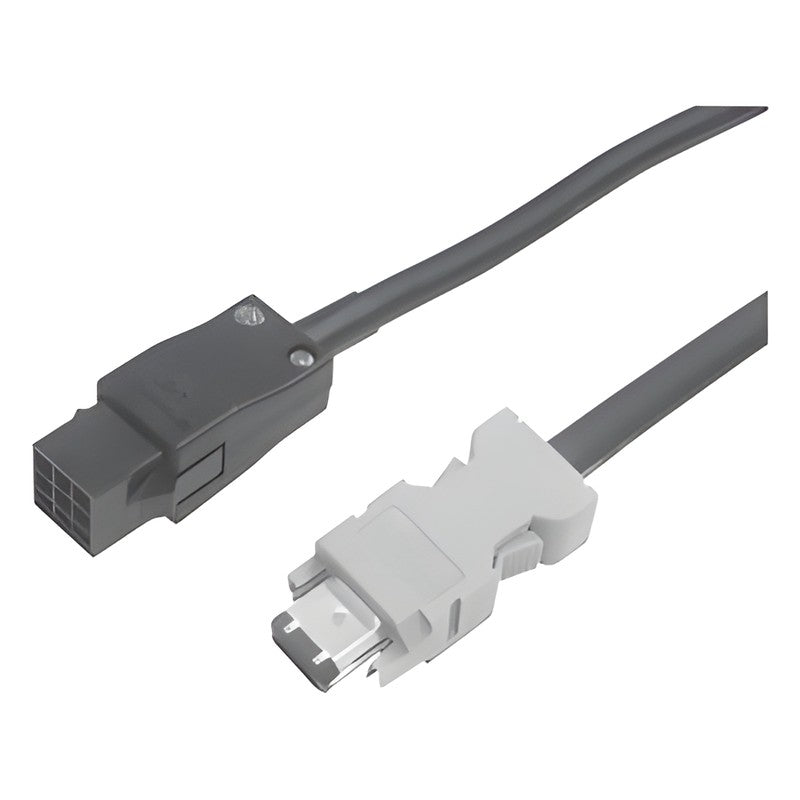

Samwon ACT MFECA-EAD Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF Leadwire

Samwon ACT MFECA-EAD Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF Leadwire

Incremental Encoder Cable for Panasonic MINAS A6 MSMF, MHMF 50W~1.0kW and MQMF 100~400W leadwire-type servo motors.

Key features

  • Incremental Encoder Cables for Panasonic MINAS A6 MSMF, MHMF 50W~1.0kW and MQMF 100~400W leadwire-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector Tyco Electronics 172161-9 or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
MFECA0030EAD-L Cable: Fixed | Length: 3M | Panasonic Model: MFECA0030EAD
MFECA0050EAD-L Cable: Fixed | Length: 5M | Panasonic Model: MFECA0050EAD
MFECA0100EAD-L Cable: Fixed | Length: 10M | Panasonic Model: MFECA0100EAD
MFECA0150EAD-L Cable: Fixed | Length: 15M
MFECA0200EAD-L Cable: Fixed | Length: 20M | Panasonic Model: MFECA0200EAD
MFECA0030EAD-H Cable: Moving | Length: 3M
MFECA0050EAD-H Cable: Moving | Length: 5M
MFECA0100EAD-H Cable: Moving | Length: 10M
MFECA0150EAD-H Cable: Moving | Length: 15M
MFECA0200EAD-H Cable: Moving | Length: 20M
Encoder CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFECA-EAD Incremental Encoder Cable for Panasonic A6 MSMF/MHMF/MQMF Leadwire

Brand Samwon ACT·Encoder Cables

Available part numbers (10)

MFECA0030EAD-L, MFECA0050EAD-L, MFECA0100EAD-L, MFECA0150EAD-L, MFECA0200EAD-L, MFECA0030EAD-H, MFECA0050EAD-H, MFECA0100EAD-H, MFECA0150EAD-H, MFECA0200EAD-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
