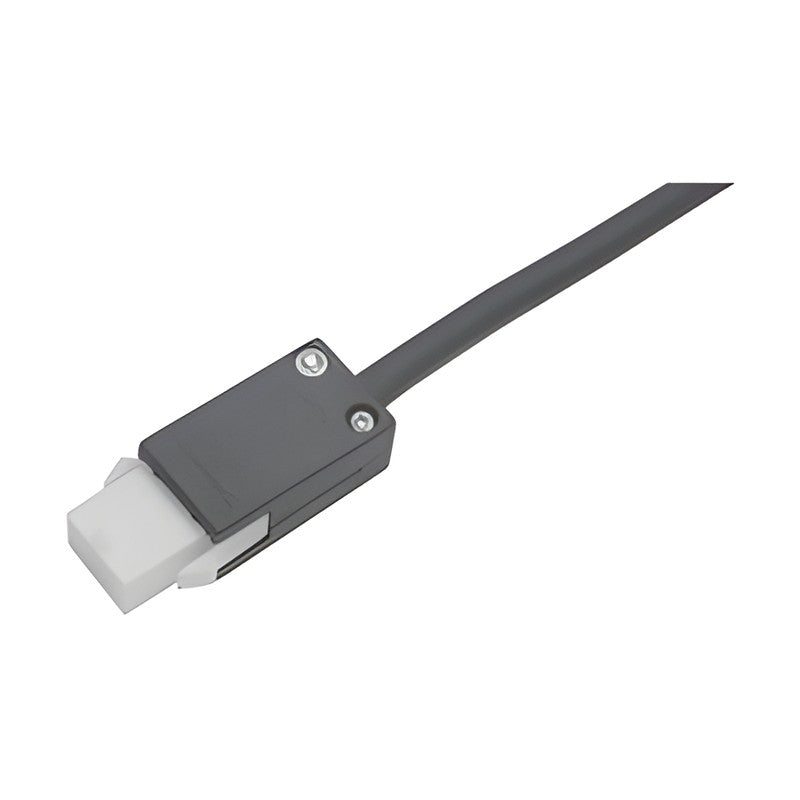

Samwon ACT MFECA-EAM 20-bit Incremental Encoder Cable for Panasonic A5 MSMD/MHMD Leadwire

Samwon ACT MFECA-EAM 20-bit Incremental Encoder Cable for Panasonic A5 MSMD/MHMD Leadwire

20-bit Incremental Encoder Cable for Panasonic MINAS A5 MSMD 50~750W and MHMD 200~750W leadwire-type servo motors. 20-bit Incremental Encoder Cables for Panasonic MINAS A5 MSMD 50~750W and MHMD 200~750W leadwire-type servo motors.

Key features

  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector Tyco Electronics 172160-1 or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
MFECA0030EAM-L Cable: Fixed | Length: 3M | Panasonic Model: MFECA0030EAM
MFECA0050EAM-L Cable: Fixed | Length: 5M | Panasonic Model: MFECA0050EAM
MFECA0100EAM-L Cable: Fixed | Length: 10M | Panasonic Model: MFECA0100EAM
MFECA0150EAM-L Cable: Fixed | Length: 15M
MFECA0200EAM-L Cable: Fixed | Length: 20M | Panasonic Model: MFECA0200EAM
MFECA0030EAM-H Cable: Moving | Length: 3M
MFECA0050EAM-H Cable: Moving | Length: 5M
MFECA0100EAM-H Cable: Moving | Length: 10M
MFECA0150EAM-H Cable: Moving | Length: 15M
MFECA0200EAM-H Cable: Moving | Length: 20M
Encoder CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFECA-EAM 20-bit Incremental Encoder Cable for Panasonic A5 MSMD/MHMD Leadwire

Brand Samwon ACT·Encoder Cables

Available part numbers (10)

MFECA0030EAM-L, MFECA0050EAM-L, MFECA0100EAM-L, MFECA0150EAM-L, MFECA0200EAM-L, MFECA0030EAM-H, MFECA0050EAM-H, MFECA0100EAM-H, MFECA0150EAM-H, MFECA0200EAM-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFECA0030EAM-LCable: Fixed | Length: 3M | Panasonic Model: MFECA0030EAM
MFECA0050EAM-LCable: Fixed | Length: 5M | Panasonic Model: MFECA0050EAM
MFECA0100EAM-LCable: Fixed | Length: 10M | Panasonic Model: MFECA0100EAM
MFECA0150EAM-LCable: Fixed | Length: 15M
MFECA0200EAM-LCable: Fixed | Length: 20M | Panasonic Model: MFECA0200EAM
MFECA0030EAM-HCable: Moving | Length: 3M
MFECA0050EAM-HCable: Moving | Length: 5M
MFECA0100EAM-HCable: Moving | Length: 10M
MFECA0150EAM-HCable: Moving | Length: 15M
MFECA0200EAM-HCable: Moving | Length: 20M
