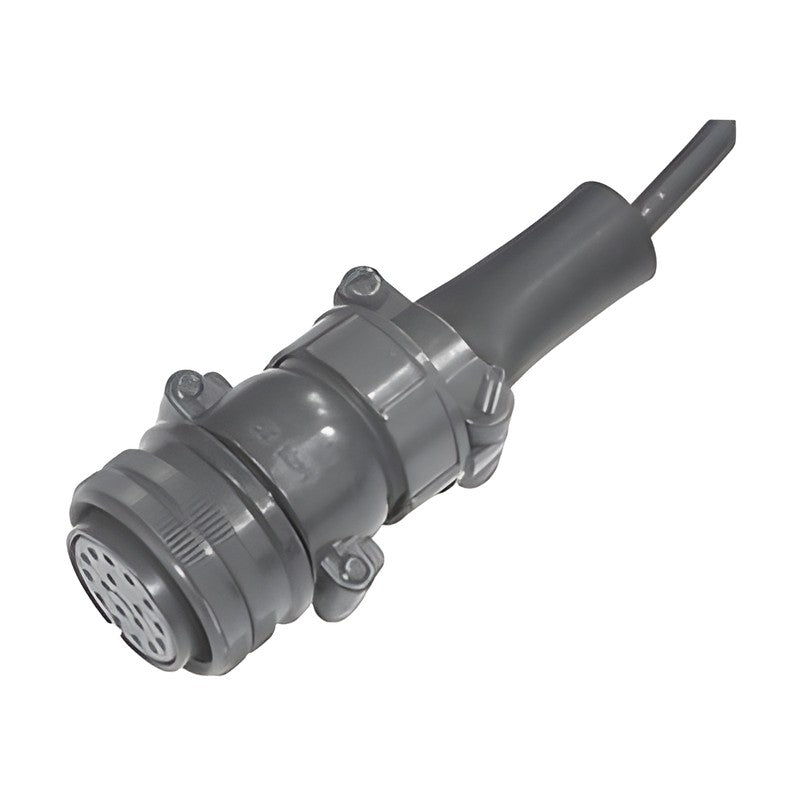

Samwon ACT MFECA-ESD Incremental Encoder Cable for Panasonic MINAS A6/A5 JL10 Type

Samwon ACT MFECA-ESD Incremental Encoder Cable for Panasonic MINAS A6/A5 JL10 Type

Incremental Encoder Cable for Panasonic MINAS A6 MSMF, MDMF, MHMF, MGMF and A5 MSME, MDME, MGME, MHME 0.9~5.0kW JL10-type servo motors.

Key features

  • Incremental Encoder Cables for Panasonic MINAS A6 MSMF, MDMF, MHMF, MGMF and A5 MSME, MDME, MGME, MHME 0.9~5.0kW JL10-type servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Amplifier Connector MOLEX 55100-0670 or equivalent
Encoder Connector MS3106B 20-29S or equivalent
Fixed Cable UL2464 twist pair shielded, PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464 twist pair shielded, ETFE insulation cable
Max. Transmission Length 20M
Length Tolerance +50 to +100 mm
MFECA0030ESD-L Cable: Fixed | Length: 3M | Panasonic Model: MFECA0030ESD
MFECA0050ESD-L Cable: Fixed | Length: 5M | Panasonic Model: MFECA0050ESD
MFECA0100ESD-L Cable: Fixed | Length: 10M | Panasonic Model: MFECA0100ESD
MFECA0150ESD-L Cable: Fixed | Length: 15M
MFECA0200ESD-L Cable: Fixed | Length: 20M | Panasonic Model: MFECA0200ESD
MFECA0030ESD-H Cable: Moving | Length: 3M
MFECA0050ESD-H Cable: Moving | Length: 5M
MFECA0100ESD-H Cable: Moving | Length: 10M
MFECA0150ESD-H Cable: Moving | Length: 15M
MFECA0200ESD-H Cable: Moving | Length: 20M
Encoder CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFECA-ESD Incremental Encoder Cable for Panasonic MINAS A6/A5 JL10 Type

Brand Samwon ACT·Encoder Cables

Available part numbers (10)

MFECA0030ESD-L, MFECA0050ESD-L, MFECA0100ESD-L, MFECA0150ESD-L, MFECA0200ESD-L, MFECA0030ESD-H, MFECA0050ESD-H, MFECA0100ESD-H, MFECA0150ESD-H, MFECA0200ESD-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFECA0030ESD-LCable: Fixed | Length: 3M | Panasonic Model: MFECA0030ESD
MFECA0050ESD-LCable: Fixed | Length: 5M | Panasonic Model: MFECA0050ESD
MFECA0100ESD-LCable: Fixed | Length: 10M | Panasonic Model: MFECA0100ESD
MFECA0150ESD-LCable: Fixed | Length: 15M
MFECA0200ESD-LCable: Fixed | Length: 20M | Panasonic Model: MFECA0200ESD
MFECA0030ESD-HCable: Moving | Length: 3M
MFECA0050ESD-HCable: Moving | Length: 5M
MFECA0100ESD-HCable: Moving | Length: 10M
MFECA0150ESD-HCable: Moving | Length: 15M
MFECA0200ESD-HCable: Moving | Length: 20M
