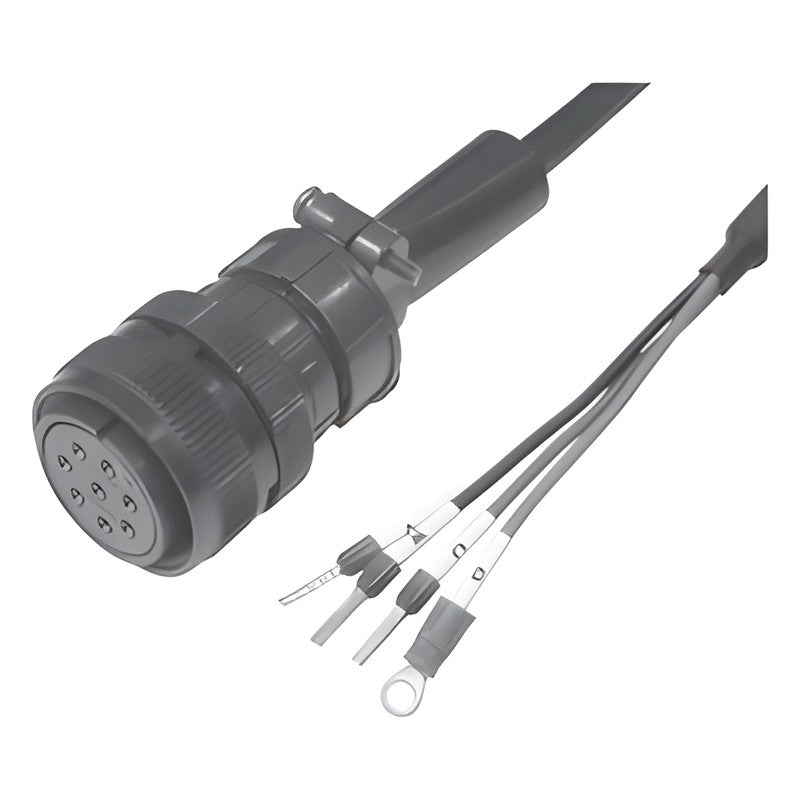

Samwon ACT MFMCA-ECD Power Cable for Panasonic MINAS A5 MFME 1.5kW

Samwon ACT MFMCA-ECD Power Cable for Panasonic MINAS A5 MFME 1.5kW

Power Cable for Panasonic MINAS MINAS A5 MFME 1.5kW servo motors.

Key features

  • Power Cables for Panasonic MINAS MINAS A5 MFME 1.5kW servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector MS3106B 20-18S or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
MFMCA0032ECD-L Cable: Fixed | Length: 3M | Panasonic Model: MFMCA0032ECD
MFMCA0052ECD-L Cable: Fixed | Length: 5M | Panasonic Model: MFMCA0052ECD
MFMCA0102ECD-L Cable: Fixed | Length: 10M | Panasonic Model: MFMCA0102ECD
MFMCA0152ECD-L Cable: Fixed | Length: 15M
MFMCA0202ECD-L Cable: Fixed | Length: 20M | Panasonic Model: MFMCA0202ECD
MFMCA0032ECD-H Cable: Moving | Length: 3M
MFMCA0052ECD-H Cable: Moving | Length: 5M
MFMCA0102ECD-H Cable: Moving | Length: 10M
MFMCA0152ECD-H Cable: Moving | Length: 15M
MFMCA0202ECD-H Cable: Moving | Length: 20M
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFMCA-ECD Power Cable for Panasonic MINAS A5 MFME 1.5kW

Brand Samwon ACT·Servo Cables

Available part numbers (10)

MFMCA0032ECD-L, MFMCA0052ECD-L, MFMCA0102ECD-L, MFMCA0152ECD-L, MFMCA0202ECD-L, MFMCA0032ECD-H, MFMCA0052ECD-H, MFMCA0102ECD-H, MFMCA0152ECD-H, MFMCA0202ECD-H
