• Samwon ACT MFMCA-FCD Power + Brake Cable for Panasonic A6 MSMF/MDMF/MHMF/MGMF 0.85~2.0kW
1 1

Samwon ACT MFMCA-FCD Power + Brake Cable for Panasonic A6 MSMF/MDMF/MHMF/MGMF 0.85~2.0kW

Samwon ACT MFMCA-FCD Power + Brake Cable for Panasonic A6 MSMF/MDMF/MHMF/MGMF 0.85~2.0kW

Power + Brake Cable for Panasonic MINAS A6 MSMF, MDMF 1.0~2.0kW, MHMF 1.0~1.5kW, MGMF 0.85~1.8kW and A5 MSME, MDME 1.0~2.0kW, MFME 1.5kW, MGME 0.9kW, MHME 1.0~1.5kW servo motors.

Key features

  • Power + Brake Cables for Panasonic MINAS A6 MSMF, MDMF 1.0~2.0kW, MHMF 1.0~1.5kW, MGMF 0.85~1.8kW and A5 MSME, MDME 1.0~2.0kW, MFME 1.5kW, MGME 0.9kW, MHME 1.0~1.5kW servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

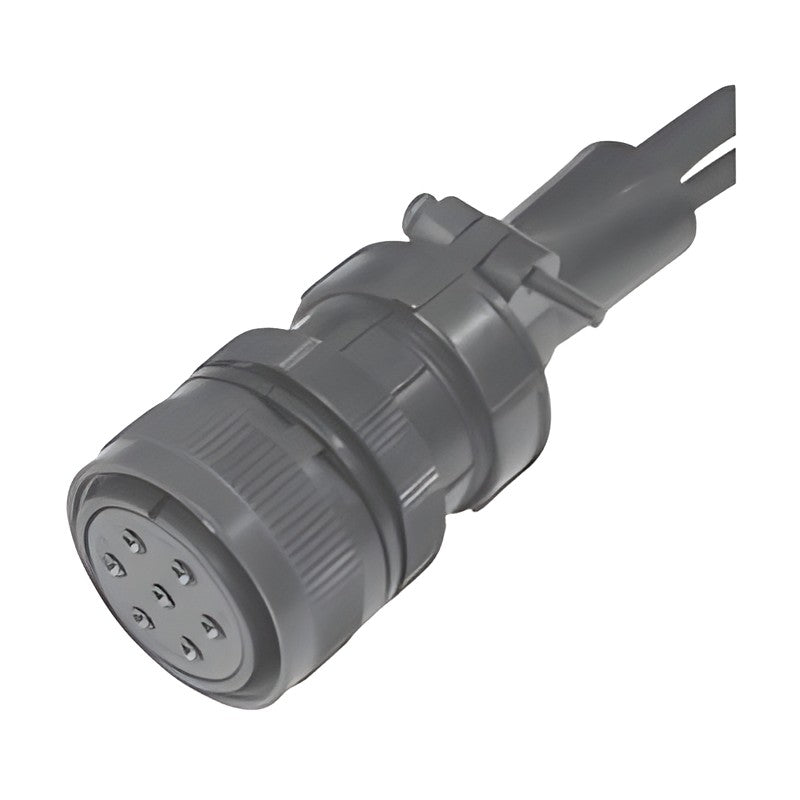

Motor Connector MS3106B 20-18S or equivalent
Fixed Cable UL2464 PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
MFMCA0032FCD-L Cable: Fixed | Length: 3M | Panasonic Model: MFMCA0032FCD
MFMCA0052FCD-L Cable: Fixed | Length: 5M | Panasonic Model: MFMCA0052FCD
MFMCA0102FCD-L Cable: Fixed | Length: 10M | Panasonic Model: MFMCA0102FCD
MFMCA0152FCD-L Cable: Fixed | Length: 15M
MFMCA0202FCD-L Cable: Fixed | Length: 20M | Panasonic Model: MFMCA0202FCD
MFMCA0032FCD-H Cable: Moving | Length: 3M
MFMCA0052FCD-H Cable: Moving | Length: 5M
MFMCA0102FCD-H Cable: Moving | Length: 10M
MFMCA0152FCD-H Cable: Moving | Length: 15M
MFMCA0202FCD-H Cable: Moving | Length: 20M
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFMCA-FCD Power + Brake Cable for Panasonic A6 MSMF/MDMF/MHMF/MGMF 0.85~2.0kW

Brand Samwon ACT·Servo Cables

Available part numbers (10)

MFMCA0032FCD-L, MFMCA0052FCD-L, MFMCA0102FCD-L, MFMCA0152FCD-L, MFMCA0202FCD-L, MFMCA0032FCD-H, MFMCA0052FCD-H, MFMCA0102FCD-H, MFMCA0152FCD-H, MFMCA0202FCD-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFMCA0032FCD-LCable: Fixed | Length: 3M | Panasonic Model: MFMCA0032FCD
MFMCA0052FCD-LCable: Fixed | Length: 5M | Panasonic Model: MFMCA0052FCD
MFMCA0102FCD-LCable: Fixed | Length: 10M | Panasonic Model: MFMCA0102FCD
MFMCA0152FCD-LCable: Fixed | Length: 15M
MFMCA0202FCD-LCable: Fixed | Length: 20M | Panasonic Model: MFMCA0202FCD
MFMCA0032FCD-HCable: Moving | Length: 3M
MFMCA0052FCD-HCable: Moving | Length: 5M
MFMCA0102FCD-HCable: Moving | Length: 10M
MFMCA0152FCD-HCable: Moving | Length: 15M
MFMCA0202FCD-HCable: Moving | Length: 20M

Need a different model, or a part not listed here? Send us your parts list →
