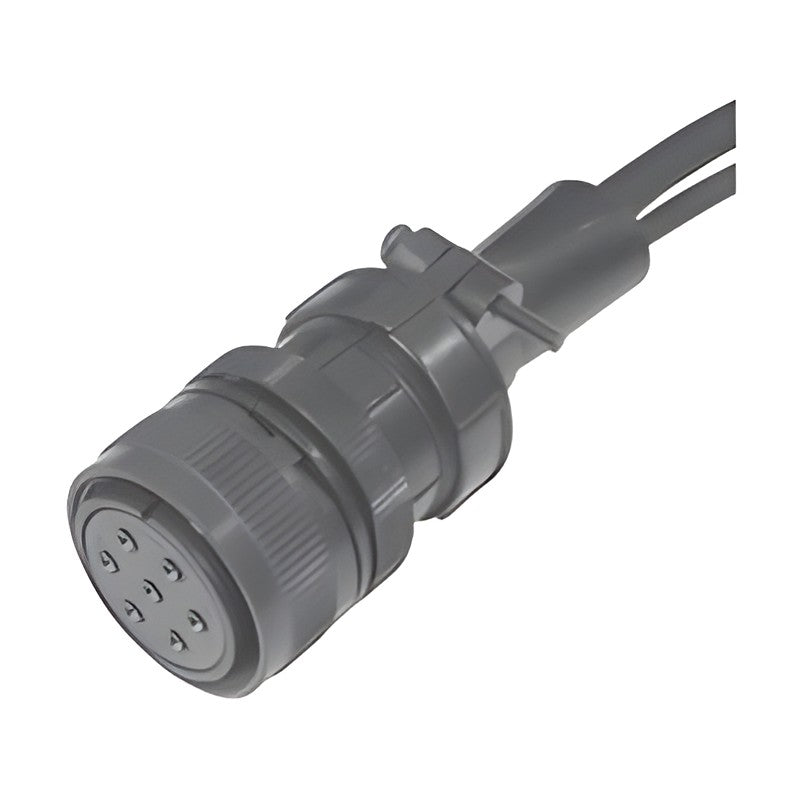

Samwon ACT MFMCA-FCT Power + Brake Cable for Panasonic A6/A5 3.0~5.0kW

Samwon ACT MFMCA-FCT Power + Brake Cable for Panasonic A6/A5 3.0~5.0kW

Power + Brake Cable for Panasonic MINAS A6 MSMF, MDMF, MHMF 3.0~5.0kW and A5 MSME, MDME, MHME 3.0~5.0kW, MGME 2.0~4.5kW, MFME 4.5kW servo motors.

Key features

  • Power + Brake Cables for Panasonic MINAS A6 MSMF, MDMF, MHMF 3.0~5.0kW and A5 MSME, MDME, MHME 3.0~5.0kW, MGME 2.0~4.5kW, MFME 4.5kW servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector MS3106B 24-11S or equivalent
Fixed Cable VCT 600V PVC insulation cable
Moving Cable TAIYO EXT-VP UL2501 cross-linked polyethylene insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
MFMCA0033FCT-L Cable: Fixed | Length: 3M | Panasonic Model: MFMCA0033FCT
MFMCA0053FCT-L Cable: Fixed | Length: 5M | Panasonic Model: MFMCA0053FCT
MFMCA0103FCT-L Cable: Fixed | Length: 10M | Panasonic Model: MFMCA0103FCT
MFMCA0153FCT-L Cable: Fixed | Length: 15M
MFMCA0203FCT-L Cable: Fixed | Length: 20M | Panasonic Model: MFMCA0203FCT
MFMCA0033FCT-H Cable: Moving | Length: 3M
MFMCA0053FCT-H Cable: Moving | Length: 5M
MFMCA0103FCT-H Cable: Moving | Length: 10M
MFMCA0153FCT-H Cable: Moving | Length: 15M
MFMCA0203FCT-H Cable: Moving | Length: 20M
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFMCA-FCT Power + Brake Cable for Panasonic A6/A5 3.0~5.0kW

Brand Samwon ACT·Servo Cables

Available part numbers (10)

MFMCA0033FCT-L, MFMCA0053FCT-L, MFMCA0103FCT-L, MFMCA0153FCT-L, MFMCA0203FCT-L, MFMCA0033FCT-H, MFMCA0053FCT-H, MFMCA0103FCT-H, MFMCA0153FCT-H, MFMCA0203FCT-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
