• Samwon ACT MFMCE-ECD Power Cable for Panasonic MINAS A6 MHMF/A5 MHME 2.0kW
1 1

Samwon ACT MFMCE-ECD Power Cable for Panasonic MINAS A6 MHMF/A5 MHME 2.0kW

Samwon ACT MFMCE-ECD Power Cable for Panasonic MINAS A6 MHMF/A5 MHME 2.0kW

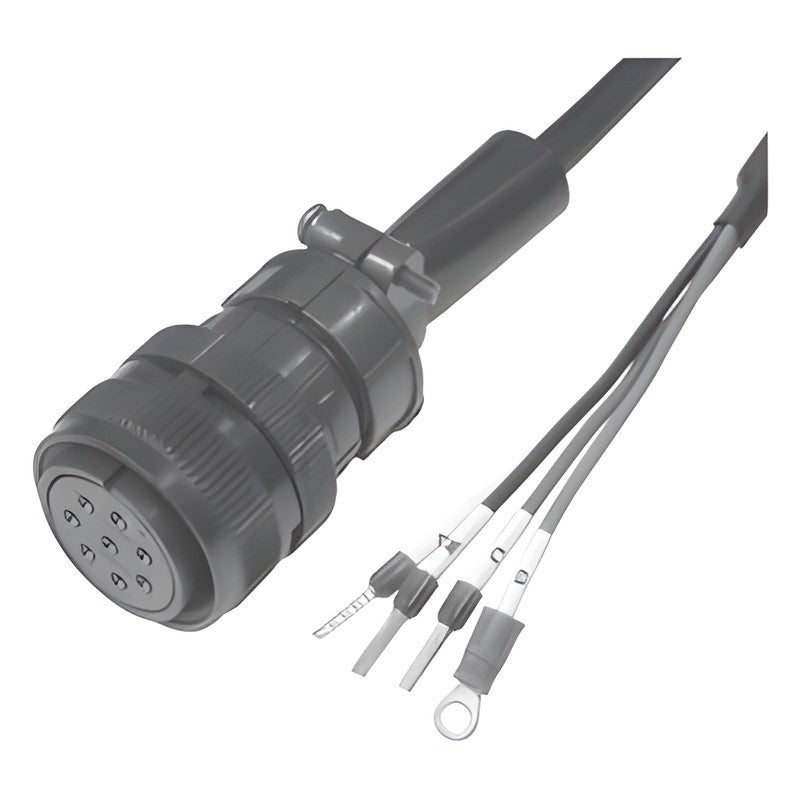

Power Cable for Panasonic MINAS A6 MHMF 2.0kW and A5 MHME 2.0kW servo motors.

Key features

  • Power Cables for Panasonic MINAS A6 MHMF 2.0kW and A5 MHME 2.0kW servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Motor Connector MS3106B 22-22S or equivalent
Fixed Cable VCT 600V PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
MFMCE0032ECD-L Cable: Fixed | Length: 3M | Panasonic Model: MFMCE0032ECD
MFMCE0052ECD-L Cable: Fixed | Length: 5M | Panasonic Model: MFMCE0052ECD
MFMCE0102ECD-L Cable: Fixed | Length: 10M | Panasonic Model: MFMCE0102ECD
MFMCE0152ECD-L Cable: Fixed | Length: 15M
MFMCE0202ECD-L Cable: Fixed | Length: 20M | Panasonic Model: MFMCE0202ECD
MFMCE0032ECD-H Cable: Moving | Length: 3M
MFMCE0052ECD-H Cable: Moving | Length: 5M
MFMCE0102ECD-H Cable: Moving | Length: 10M
MFMCE0152ECD-H Cable: Moving | Length: 15M
MFMCE0202ECD-H Cable: Moving | Length: 20M
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFMCE-ECD Power Cable for Panasonic MINAS A6 MHMF/A5 MHME 2.0kW

Brand Samwon ACT·Servo Cables

Available part numbers (10)

MFMCE0032ECD-L, MFMCE0052ECD-L, MFMCE0102ECD-L, MFMCE0152ECD-L, MFMCE0202ECD-L, MFMCE0032ECD-H, MFMCE0052ECD-H, MFMCE0102ECD-H, MFMCE0152ECD-H, MFMCE0202ECD-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
