• Samwon ACT MFMCE-FCD Power + Brake Cable for Panasonic A6 MHMF 2.0kW, A5 MFME/MHME
1 1

Samwon ACT MFMCE-FCD Power + Brake Cable for Panasonic A6 MHMF 2.0kW, A5 MFME/MHME

Samwon ACT MFMCE-FCD Power + Brake Cable for Panasonic A6 MHMF 2.0kW, A5 MFME/MHME

Power + Brake Cable for Panasonic MINAS A6 MHMF 2.0kW and A5 MFME 2.5kW, MHME 2.0kW servo motors.

Key features

  • Power + Brake Cables for Panasonic MINAS A6 MHMF 2.0kW and A5 MFME 2.5kW, MHME 2.0kW servo motors
  • Built to the recommended specifications in Panasonic user manuals and catalogs (some equivalent parts used)
  • Fixed, moving (flex-rated) and custom-specified cables can be made
  • Cable length can be specified freely; custom lengths in 100 mm steps
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

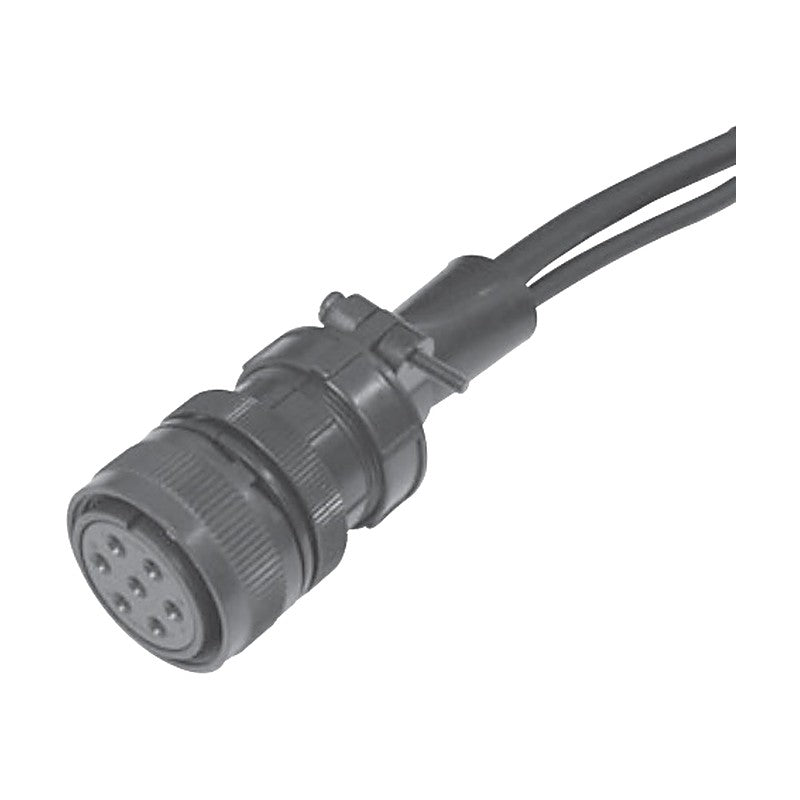

Motor Connector MS3106B 24-11S or equivalent
Fixed Cable VCT 600V PVC insulation cable
Moving Cable PROTERIAL (formerly Hitachi Metals) RT-FLEX UL2464, ETFE insulation cable
Max. Transmission Length 30M
Length Tolerance +50 to +100 mm
MFMCE0032FCD-L Cable: Fixed | Length: 3M | Panasonic Model: MFMCE0032FCD
MFMCE0052FCD-L Cable: Fixed | Length: 5M | Panasonic Model: MFMCE0052FCD
MFMCE0102FCD-L Cable: Fixed | Length: 10M | Panasonic Model: MFMCE0102FCD
MFMCE0152FCD-L Cable: Fixed | Length: 15M
MFMCE0202FCD-L Cable: Fixed | Length: 20M | Panasonic Model: MFMCE0202FCD
MFMCE0032FCD-H Cable: Moving | Length: 3M
MFMCE0052FCD-H Cable: Moving | Length: 5M
MFMCE0102FCD-H Cable: Moving | Length: 10M
MFMCE0152FCD-H Cable: Moving | Length: 15M
MFMCE0202FCD-H Cable: Moving | Length: 20M
Servo CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MFMCE-FCD Power + Brake Cable for Panasonic A6 MHMF 2.0kW, A5 MFME/MHME

Brand Samwon ACT·Servo Cables

Available part numbers (10)

MFMCE0032FCD-L, MFMCE0052FCD-L, MFMCE0102FCD-L, MFMCE0152FCD-L, MFMCE0202FCD-L, MFMCE0032FCD-H, MFMCE0052FCD-H, MFMCE0102FCD-H, MFMCE0152FCD-H, MFMCE0202FCD-H

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFMCE0032FCD-LCable: Fixed | Length: 3M | Panasonic Model: MFMCE0032FCD
MFMCE0052FCD-LCable: Fixed | Length: 5M | Panasonic Model: MFMCE0052FCD
MFMCE0102FCD-LCable: Fixed | Length: 10M | Panasonic Model: MFMCE0102FCD
MFMCE0152FCD-LCable: Fixed | Length: 15M
MFMCE0202FCD-LCable: Fixed | Length: 20M | Panasonic Model: MFMCE0202FCD
MFMCE0032FCD-HCable: Moving | Length: 3M
MFMCE0052FCD-HCable: Moving | Length: 5M
MFMCE0102FCD-HCable: Moving | Length: 10M
MFMCE0152FCD-HCable: Moving | Length: 15M
MFMCE0202FCD-HCable: Moving | Length: 20M
