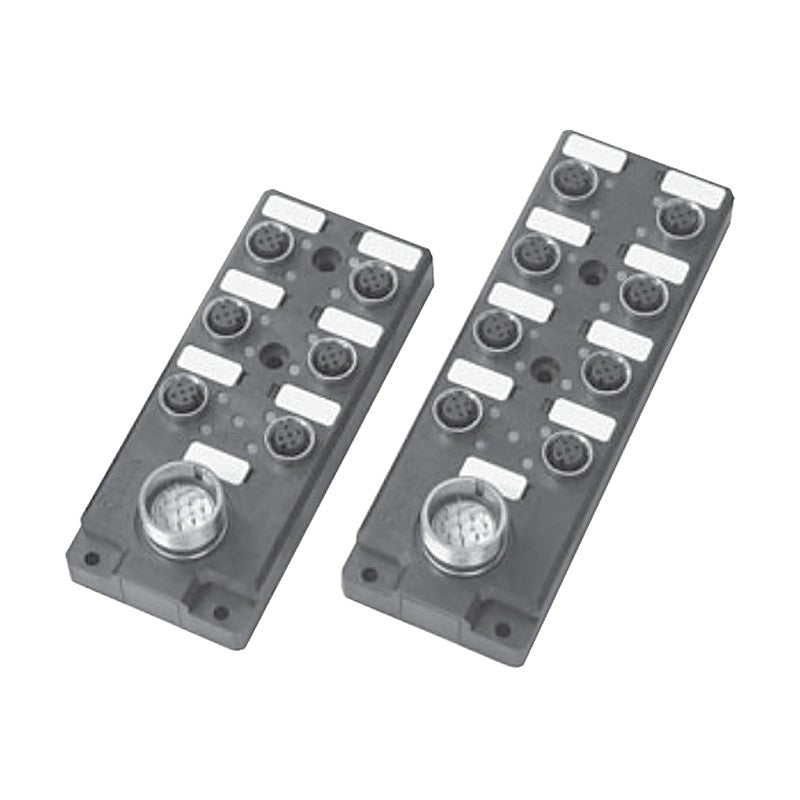

Samwon ACT MPB M12 Multi-Port Junction Boxes with M23 Main Connector

IP67 M12 sensor/actuator junction boxes (4/6/8 ports) with a separable M23 main-cable connector for easy field work and maintenance.

Key features

Collects M12 sensors, limit switches and solenoid valves for control-panel relay
Dedicated M12 connectors greatly reduce installation man-hours
Separable M23 main cable makes field work and maintenance easy
Power and signal LEDs for easy I/O check
Identical mounting dimensions regardless of port count. 1-signal and 2-signal, NPN and PNP versions; compact, rugged IP67 design

Specifications

Port connector	M12
Main connector	M23 (12-pin for J/L, 19-pin for K)
Operating voltage	DC 12-24 V
Rated current	2 A per I/O, 4 A per port
Insulation resistance	100 MOhm min. (500 V DC)
Dielectric strength	AC 500 V for 1 min
Degree of protection	IP67 (with protective cap / mated M12)
Insertion durability	200 cycles
Operating temperature	-25 to +75 C
Case	Modified PPO
Main cable	Not included (see M23 main cable)

MPB-J80N		Ports: 8 \| Signals: 1 signal per port \| Common: NPN
MPB-J60N		Ports: 6 \| Signals: 1 signal per port \| Common: NPN
MPB-J40N		Ports: 4 \| Signals: 1 signal per port \| Common: NPN
MPB-J80P		Ports: 8 \| Signals: 1 signal per port \| Common: PNP
MPB-J60P		Ports: 6 \| Signals: 1 signal per port \| Common: PNP
MPB-J40P		Ports: 4 \| Signals: 1 signal per port \| Common: PNP
MPB-K80N		Ports: 8 \| Signals: 2 signals per port \| Common: NPN
MPB-K60N		Ports: 6 \| Signals: 2 signals per port \| Common: NPN
MPB-K40N		Ports: 4 \| Signals: 2 signals per port \| Common: NPN
MPB-K80P		Ports: 8 \| Signals: 2 signals per port \| Common: PNP
MPB-K60P		Ports: 6 \| Signals: 2 signals per port \| Common: PNP
MPB-K40P		Ports: 4 \| Signals: 2 signals per port \| Common: PNP
MPB-L80N		Ports: 8 \| Signals: 1 signal per port, 2-wire sensor \| Common: NPN
MPB-L60N		Ports: 6 \| Signals: 1 signal per port, 2-wire sensor \| Common: NPN
MPB-L40N		Ports: 4 \| Signals: 1 signal per port, 2-wire sensor \| Common: NPN
MPB-L80P		Ports: 8 \| Signals: 1 signal per port, 2-wire sensor \| Common: PNP
MPB-L60P		Ports: 6 \| Signals: 1 signal per port, 2-wire sensor \| Common: PNP
MPB-L40P		Ports: 4 \| Signals: 1 signal per port, 2-wire sensor \| Common: PNP
