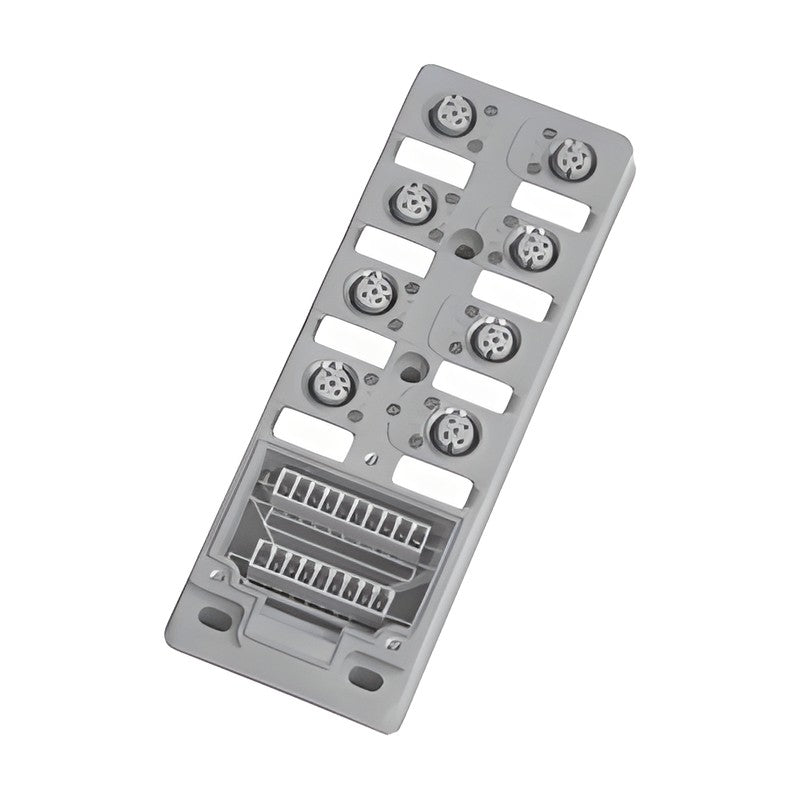

Samwon ACT MPT M12 Multi-Port Junction Boxes, Terminal-Block Type

Samwon ACT MPT M12 Multi-Port Junction Boxes, Terminal-Block Type

Economical IP67 M12 sensor/actuator junction boxes (4/6/8 ports) with built-in terminal block for connecting a user-selected main cable.

Key features

  • Built-in terminal block lets the user select and wire the main cable
  • Two types: terminal integrated (PCB-mounted terminal) and terminal separable (plug type)
  • Collects M12 sensors, limit switches and solenoid valves for control-panel relay
  • Compact, rugged IP67 design
  • Power and signal LEDs for easy I/O check
  • NPN, PNP and 2-wire sensor versions; N.O./N.C. contacts supported as standard (1-signal boards)

Specifications

Port connector M12
Operating voltage DC 12-24 V
Rated current 2 A per I/O, 4 A per port
Insulation resistance 100 MOhm min. (500 V DC)
Dielectric strength AC 500 V for 1 min
Degree of protection IP67 (with protective cap / mated M12)
Insertion durability 200 cycles
Suitable cable diameter 8.0-13.5 mm
Operating temperature -25 to +75 C
Case Modified PPO
Body color Blue (/BL) or black (/BK) suffix
MPT-P80N-B Ports: 8 | Signals: 2 per port, separate potential circuit | Common: NPN | Terminal: Separable (plug type)
MPT-P80P-B Ports: 8 | Signals: 2 per port, separate potential circuit | Common: PNP | Terminal: Separable (plug type)
Junction BoxesSamwon ACT
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT MPT M12 Multi-Port Junction Boxes, Terminal-Block Type

Brand Samwon ACT·Junction Boxes

Available part numbers (2)

MPT-P80N-B, MPT-P80P-B

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MPT-P80N-BPorts: 8 | Signals: 2 per port, separate potential circuit | Common: NPN | Terminal: Separable (plug type)
MPT-P80P-BPorts: 8 | Signals: 2 per port, separate potential circuit | Common: PNP | Terminal: Separable (plug type)
