Samwon ACT QD75D/QD75P Positioning Module to Servo Amplifier Cable (Mitsubishi QD75)

Samwon ACT QD75D/QD75P Positioning Module to Servo Amplifier Cable (Mitsubishi QD75)

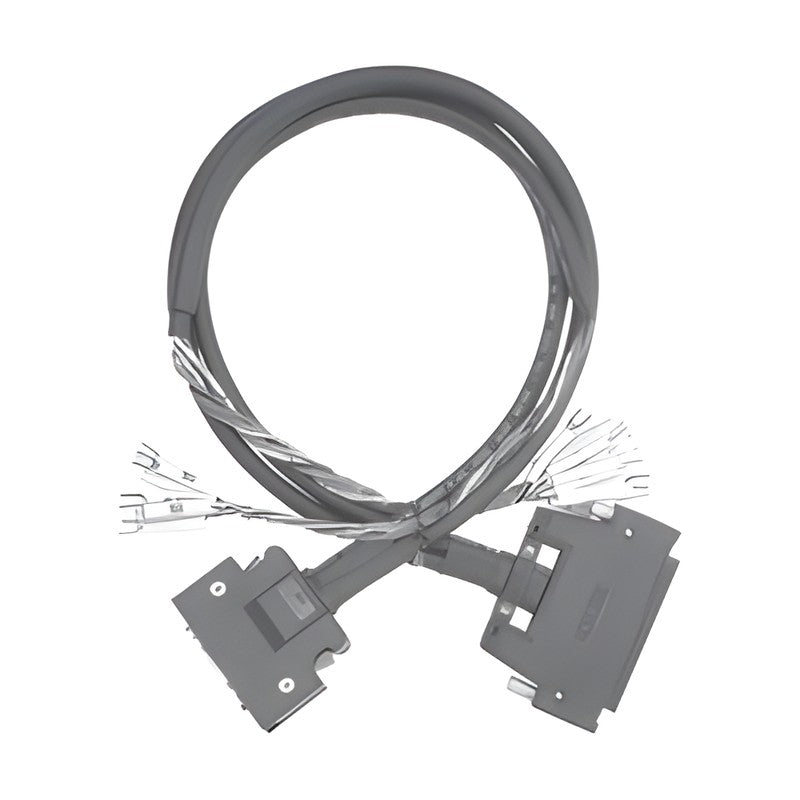

Connection cable between Mitsubishi QD75D / QD75P positioning modules and Mitsubishi J3, J2S, Yaskawa Sigma-V or Panasonic MINAS A servo amplifiers, for 1-axis or 2-axis control.

Key features

  • Cables between QD75D/QD75P positioning modules and servo amplifiers
  • QD75D: differential driver output; QD75P: open-collector output (J3, J2S only). 1-axis and 2-axis versions; for 4-axis control use two 2-axis cables
  • Standard lengths 0.5, 1 and 2 m; custom lengths in 100 mm steps
  • Contact the maker when a different servo is used on each axis

Specifications

Module Connector FUJITSU FCN361J040-AU or equivalent
Amplifier Connector (Mitsubishi J3) 3M 10150-3000PE, 10350-52F0(A0)-008 or equivalent
Amplifier Connector (Mitsubishi J2S) 3M 10120-3000PE, 10320-52F0(A0)-008 or equivalent
Amplifier Connector (Yaskawa Sigma-V) 3M 10150-3000PE, 10350-52Y0(Z0)-008 or equivalent
Amplifier Connector (Panasonic A) 3M 10150-3000PE, 10350-52F0(A0)-008 or equivalent
Cable UL2464 twist pair shielded cable
Max. Transmission Length 2M
Cable Color Black
Length Tolerance +50 to +100 mm
QD75D1-C05J3 Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J3 | Length: 0.5M
QD75P1-C05J3 Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J3 | Length: 0.5M
QD75D1-C10J3 Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J3 | Length: 1M
QD75P1-C10J3 Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J3 | Length: 1M
QD75D1-C20J3 Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J3 | Length: 2M
QD75P1-C20J3 Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J3 | Length: 2M
QD75D2-C05J3 Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J3 | Length: 0.5M
QD75P2-C05J3 Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J3 | Length: 0.5M
QD75D2-C10J3 Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J3 | Length: 1M
QD75P2-C10J3 Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J3 | Length: 1M
QD75D2-C20J3 Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J3 | Length: 2M
QD75P2-C20J3 Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J3 | Length: 2M
QD75D1-C05J2S Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J2S | Length: 0.5M
QD75P1-C05J2S Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J2S | Length: 0.5M
QD75D1-C10J2S Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J2S | Length: 1M
QD75P1-C10J2S Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J2S | Length: 1M
QD75D1-C20J2S Module: QD75D (differential driver) | Axes: 1 | Servo: Mitsubishi J2S | Length: 2M
QD75P1-C20J2S Module: QD75P (open collector) | Axes: 1 | Servo: Mitsubishi J2S | Length: 2M
QD75D2-C05J2S Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J2S | Length: 0.5M
QD75P2-C05J2S Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J2S | Length: 0.5M
QD75D2-C10J2S Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J2S | Length: 1M
QD75P2-C10J2S Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J2S | Length: 1M
QD75D2-C20J2S Module: QD75D (differential driver) | Axes: 2 | Servo: Mitsubishi J2S | Length: 2M
QD75P2-C20J2S Module: QD75P (open collector) | Axes: 2 | Servo: Mitsubishi J2S | Length: 2M
QD75D1-C05ΣV Module: QD75D (differential driver) | Axes: 1 | Servo: Yaskawa Sigma-V | Length: 0.5M
QD75D1-C10ΣV Module: QD75D (differential driver) | Axes: 1 | Servo: Yaskawa Sigma-V | Length: 1M
QD75D1-C20ΣV Module: QD75D (differential driver) | Axes: 1 | Servo: Yaskawa Sigma-V | Length: 2M
QD75D2-C05ΣV Module: QD75D (differential driver) | Axes: 2 | Servo: Yaskawa Sigma-V | Length: 0.5M
QD75D2-C10ΣV Module: QD75D (differential driver) | Axes: 2 | Servo: Yaskawa Sigma-V | Length: 1M
QD75D2-C20ΣV Module: QD75D (differential driver) | Axes: 2 | Servo: Yaskawa Sigma-V | Length: 2M
QD75D1-C05A Module: QD75D (differential driver) | Axes: 1 | Servo: Panasonic MINAS A | Length: 0.5M
QD75D1-C10A Module: QD75D (differential driver) | Axes: 1 | Servo: Panasonic MINAS A | Length: 1M
QD75D1-C20A Module: QD75D (differential driver) | Axes: 1 | Servo: Panasonic MINAS A | Length: 2M
QD75D2-C05A Module: QD75D (differential driver) | Axes: 2 | Servo: Panasonic MINAS A | Length: 0.5M
QD75D2-C10A Module: QD75D (differential driver) | Axes: 2 | Servo: Panasonic MINAS A | Length: 1M
QD75D2-C20A Module: QD75D (differential driver) | Axes: 2 | Servo: Panasonic MINAS A | Length: 2M
Servo CablesSamwon ACT
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
