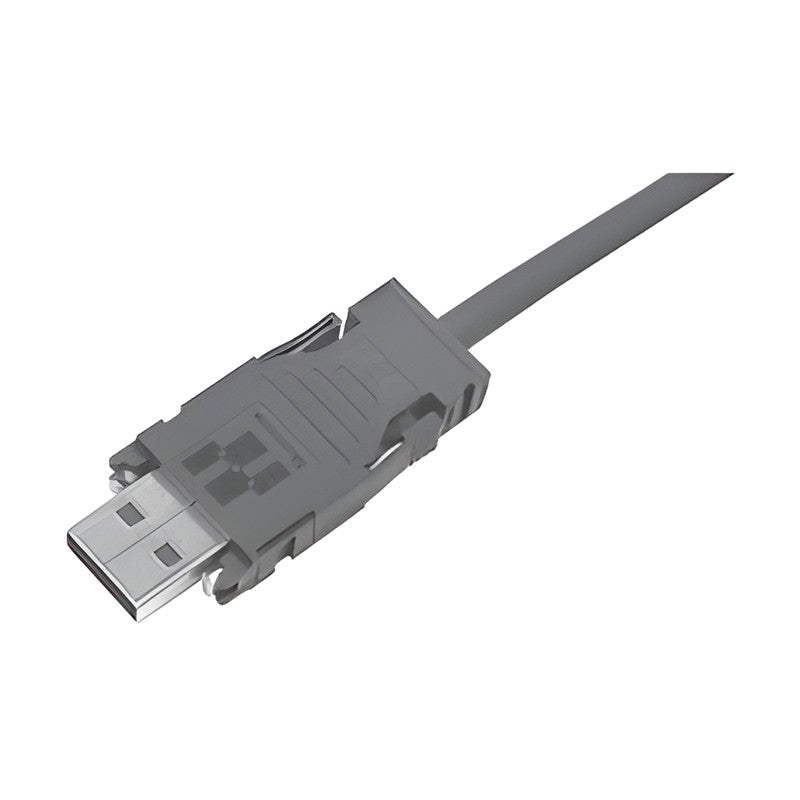

Samwon ACT SML2 MECHATROLINK-II Motion Network Cable

MECHATROLINK-II motion field network cable (with or without ferrite core) and terminator for connecting a controller to multiple servo amplifiers.

Key features

MECHATROLINK is a field network for distributed control of multiple servos, inverters and I/O modules from one controller
MECHATROLINK-II allows up to 30 stations; see the association installation manual for details
Uses products recommended by the MECHATROLINK association (some equivalents)
Small-quantity orders (from 1 piece) and short lead times

Specifications

Connector	Tyco Electronics 1827525-1 or equivalent
Cable	DYDEN HRZFV-SB AWG25/2C
Max. Transmission Distance	50M
Min. Distance Between Stations	0.5M
Terminator	130 Ω
Cable Color	Black
Length Tolerance	+50 to +100 mm

SML2-W6002-A5		Type: No core \| Cable: Fixed \| Length: 0.5M \| Yaskawa Model: JEPMC-W6002-A5-E
SML2-W6002-01		Type: No core \| Cable: Fixed \| Length: 1M \| Yaskawa Model: JEPMC-W6002-01-E
SML2-W6002-03		Type: No core \| Cable: Fixed \| Length: 3M \| Yaskawa Model: JEPMC-W6002-03-E
SML2-W6002-05		Type: No core \| Cable: Fixed \| Length: 5M \| Yaskawa Model: JEPMC-W6002-05-E
SML2-W6002-10		Type: No core \| Cable: Fixed \| Length: 10M \| Yaskawa Model: JEPMC-W6002-10-E
SML2-W6002-30		Type: No core \| Cable: Fixed \| Length: 30M \| Yaskawa Model: JEPMC-W6002-30-E
SML2-W6002-50		Type: No core \| Cable: Fixed \| Length: 50M \| Yaskawa Model: JEPMC-W6002-50-E
SML2-W6005-05		Type: No core \| Cable: Moving \| Length: 5M \| Yaskawa Model: JEPMC-W6005-05-E
SML2-W6005-10		Type: No core \| Cable: Moving \| Length: 10M \| Yaskawa Model: JEPMC-W6005-10-E
SML2-W6005-15		Type: No core \| Cable: Moving \| Length: 15M \| Yaskawa Model: JEPMC-W6005-15-E
SML2-W6003-A5		Type: With core \| Cable: Fixed \| Length: 0.5M \| Yaskawa Model: JEPMC-W6003-A5-E
SML2-W6003-01		Type: With core \| Cable: Fixed \| Length: 1M \| Yaskawa Model: JEPMC-W6003-01-E
SML2-W6003-03		Type: With core \| Cable: Fixed \| Length: 3M \| Yaskawa Model: JEPMC-W6003-03-E
SML2-W6022		Type: Terminator \| Yaskawa Model: JEPMC-W6022-E

Network CablesSamwon ACT

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SML2 MECHATROLINK-II Motion Network Cable

Brand Samwon ACT·Network Cables

Available part numbers (14)

SML2-W6002-A5, SML2-W6002-01, SML2-W6002-03, SML2-W6002-05, SML2-W6002-10, SML2-W6002-30, SML2-W6002-50, SML2-W6005-05, SML2-W6005-10, SML2-W6005-15 + 4 more — see full table ↓
