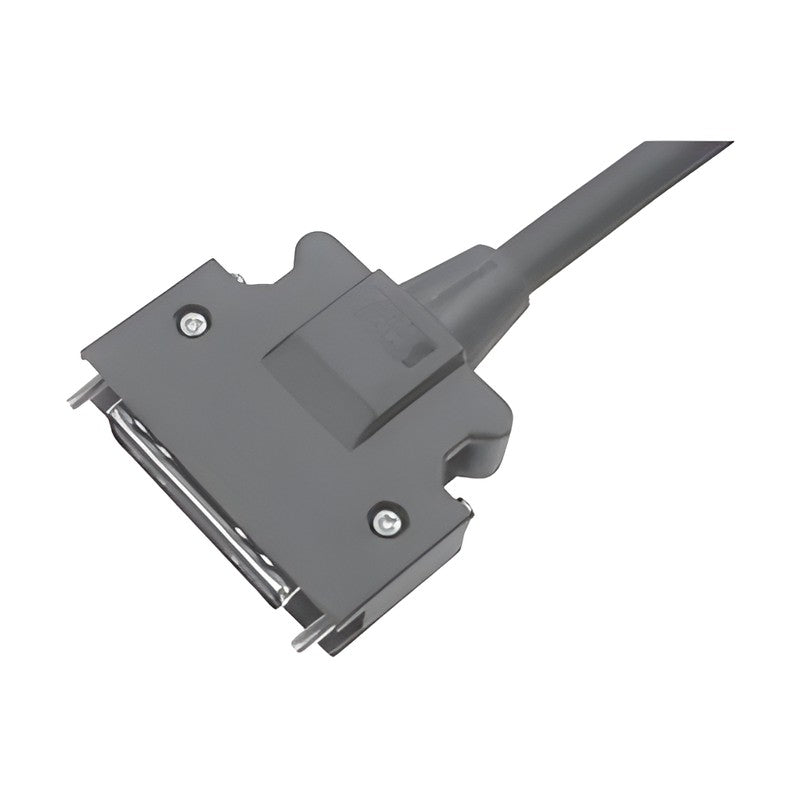

Samwon ACT SWA-CN1 / SWA-VSCN1T CN1 I/O Cable for LSIS / LS Mecapion L7S/L7P

Samwon ACT SWA-CN1 / SWA-VSCN1T CN1 I/O Cable for LSIS / LS Mecapion L7S/L7P

CN1 I/O signal cable and CN1 junction terminal block cable (with XTB-50H terminal block) for LSIS / LS Mecapion L7S and L7P servo drives.

Key features

  • CN1 I/O signal cables for L7S / L7P series servo drives. -VSCN1T models include the XTB-50H junction terminal block
  • Built to the recommended specifications in LSIS / LS Mecapion manuals and catalogs (some equivalent parts used)
  • Small-quantity orders (from 1 piece) and short lead times

Specifications

Terminal Block Side Connector HIROSE HIF3BA-50D-2.54R or equivalent
Terminal Block Rating 125V, 1A
Terminal Block Connector HIROSE HIF3BA-50D-2.54DSA or equivalent
Terminal Block Specifications 184.0 x 40.0 mm (W x D), 7.0 mm pitch screw terminals, 163.0 mm mounting hole pitch (2-Ø4.5)
SWA-CN1005A Type: CN1 I/O signal cable | Length: 0.5M | LS Mecapion Model: APC-CN1005A | LSIS Model: APC-CN1-005A
SWA-CN101A Type: CN1 I/O signal cable | Length: 1.0M | LS Mecapion Model: APC-CN101A | LSIS Model: APC-CN1-01A
SWA-CN1015A Type: CN1 I/O signal cable | Length: 1.5M | LS Mecapion Model: APC-CN1015A | LSIS Model: APC-CN1-015A
SWA-CN102A Type: CN1 I/O signal cable | Length: 2.0M | LS Mecapion Model: APC-CN102A | LSIS Model: APC-CN1-02A
SWA-CN103A Type: CN1 I/O signal cable | Length: 3.0M | LS Mecapion Model: APC-CN103A | LSIS Model: APC-CN1-03A
SWA-VSCN1T Type: CN1 junction terminal block cable with XTB-50H | Length: 0.5M | LS Mecapion Model: APC-VSCN1T | LSIS Model: APC-VSCN1T
SWA-VSCN1T-01 Type: CN1 junction terminal block cable with XTB-50H | Length: 1.0M | LS Mecapion Model: APC-VSCN1T-01 | LSIS Model: APC-VSCN1T-01
SWA-VSCN1T-015 Type: CN1 junction terminal block cable with XTB-50H | Length: 1.5M | LS Mecapion Model: APC-VSCN1T-015 | LSIS Model: APC-VSCN1T-015
SWA-VSCN1T-02 Type: CN1 junction terminal block cable with XTB-50H | Length: 2.0M | LS Mecapion Model: APC-VSCN1T-02 | LSIS Model: APC-VSCN1T-02
SWA-VSCN1T-03 Type: CN1 junction terminal block cable with XTB-50H | Length: 3.0M | LS Mecapion Model: APC-VSCN1T-03 | LSIS Model: APC-VSCN1T-03
I/O CablesSamwon ACT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWA-CN1 / SWA-VSCN1T CN1 I/O Cable for LSIS / LS Mecapion L7S/L7P

Brand Samwon ACT·I/O Cables

Available part numbers (10)

SWA-CN1005A, SWA-CN101A, SWA-CN1015A, SWA-CN102A, SWA-CN103A, SWA-VSCN1T, SWA-VSCN1T-01, SWA-VSCN1T-015, SWA-VSCN1T-02, SWA-VSCN1T-03

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
