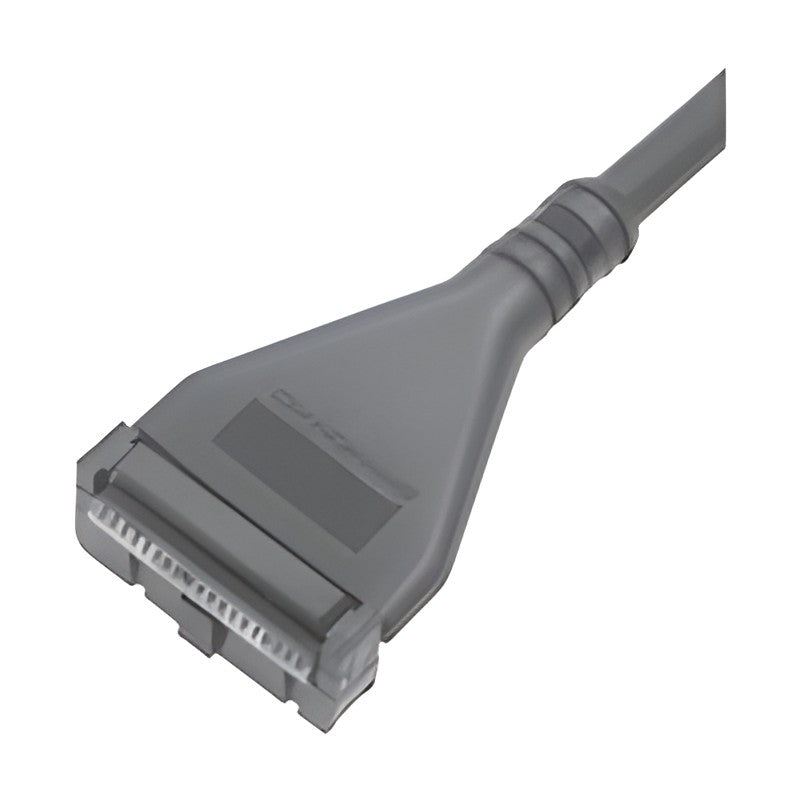

Samwon ACT SWL-CN1 / SWL-L7NCN1T CN1 I/O Cable for LSIS / LS Mecapion L7NH

CN1 I/O signal cable and CN1 junction terminal block cable (with XTB-20H terminal block) for LSIS / LS Mecapion L7NH servo drives.

Key features

CN1 I/O signal cables for L7NH series servo drives. -L7NCN1T models include the XTB-20H junction terminal block
Built to the recommended specifications in LSIS / LS Mecapion manuals and catalogs (some equivalent parts used)
Small-quantity orders (from 1 piece) and short lead times

Specifications

Terminal Block Side Connector	HIROSE HIF3BA-20D-2.54R or equivalent
Terminal Block Rating	125V, 1A
Terminal Block Connector	HIROSE HIF3BA-20D-2.54DSA or equivalent
Terminal Block Specifications	80.0 x 40.0 mm (W x D), 7.0 mm pitch screw terminals, 60.0 mm mounting hole pitch (2-Ø4.5)

SWL-CN1005A		Type: CN1 I/O signal cable \| Length: 0.5M \| LS Mecapion Model: APCS-CN1005A \| LSIS Model: APCS-CN1-005A
SWL-CN101A		Type: CN1 I/O signal cable \| Length: 1.0M \| LS Mecapion Model: APCS-CN101A \| LSIS Model: APCS-CN1-01A
SWL-CN1015A		Type: CN1 I/O signal cable \| Length: 1.5M \| LS Mecapion Model: APCS-CN1015A \| LSIS Model: APCS-CN1-015A
SWL-CN102A		Type: CN1 I/O signal cable \| Length: 2.0M \| LS Mecapion Model: APCS-CN102A \| LSIS Model: APCS-CN1-02A
SWL-CN103A		Type: CN1 I/O signal cable \| Length: 3.0M \| LS Mecapion Model: APCS-CN103A \| LSIS Model: APCS-CN1-03A
SWL-L7NCN1T		Type: CN1 junction terminal block cable with XTB-20H \| Length: 0.5M \| LS Mecapion Model: APCS-L7NCN1T \| LSIS Model: APCS-L7NCN1T
SWL-L7NCN1T-01		Type: CN1 junction terminal block cable with XTB-20H \| Length: 1.0M \| LS Mecapion Model: APCS-L7NCN1T-01 \| LSIS Model: APCS-L7NCN1T-01
SWL-L7NCN1T-015		Type: CN1 junction terminal block cable with XTB-20H \| Length: 1.5M \| LS Mecapion Model: APCS-L7NCN1T-015 \| LSIS Model: APCS-L7NCN1T-015
SWL-LN7CN1T-02		Type: CN1 junction terminal block cable with XTB-20H \| Length: 2.0M \| LS Mecapion Model: APCS-LN7CN1T-02 \| LSIS Model: APCS-LN7CN1T-02
SWL-LN7CN1T-03		Type: CN1 junction terminal block cable with XTB-20H \| Length: 3.0M \| LS Mecapion Model: APCS-LN7CN1T-03 \| LSIS Model: APCS-LN7CN1T-03

I/O CablesSamwon ACT

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWL-CN1 / SWL-L7NCN1T CN1 I/O Cable for LSIS / LS Mecapion L7NH

Brand Samwon ACT·I/O Cables

Available part numbers (10)

SWL-CN1005A, SWL-CN101A, SWL-CN1015A, SWL-CN102A, SWL-CN103A, SWL-L7NCN1T, SWL-L7NCN1T-01, SWL-L7NCN1T-015, SWL-LN7CN1T-02, SWL-LN7CN1T-03

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
