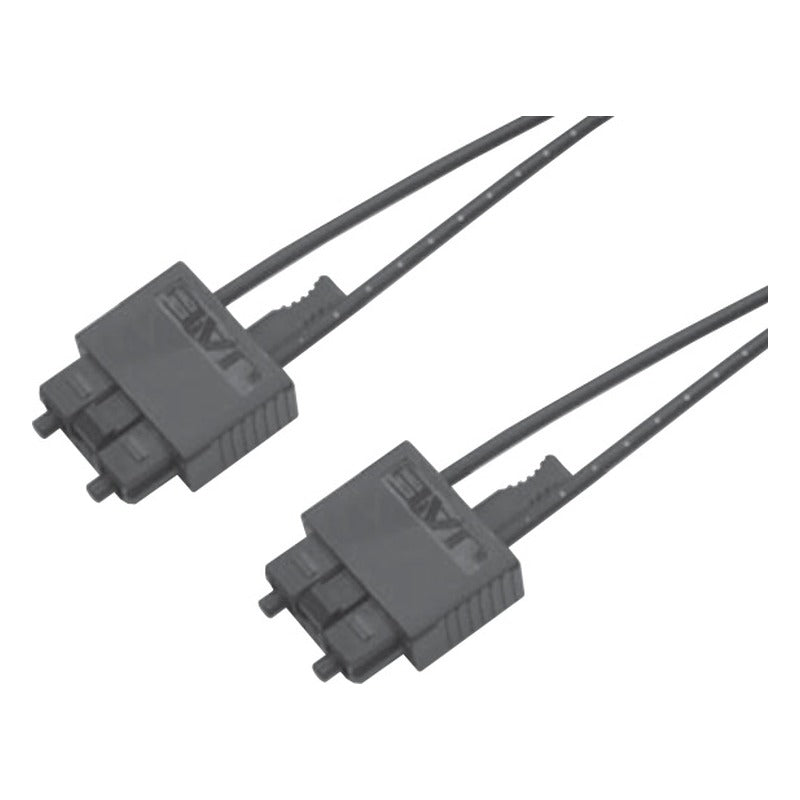

Samwon ACT SWM-J3BUS SSCNET III Optical Fiber Cables for MR-J4-B

Samwon ACT SWM-J3BUS SSCNET III Optical Fiber Cables for MR-J4-B

SSCNET III optical fiber cables for high-speed synchronous network connection between MITSUBISHI motion controllers and MR-J4-B servo amplifiers.

Key features

  • Optical communication cable for high-speed synchronous servo networks
  • Max. connection distance 50 m
  • Standard cord inside panel (up to 3 m), standard cable outside panel (5-20 m), long-distance cable (30-50 m)
  • Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)
  • Handle with care: impact, bending, pulling or twisting can damage the plastic optical fiber

Specifications

Connector JAE PF-2D103 / JAE CF-2D103-S or equivalent
Standard cord inside panel TORAY PFU-1002-22-E
Standard cable outside panel MITSUBISHI RAYON GHTT 4002
Max. transmission length 50 m
Cable color Black
Length tolerance +50 to +100 mm
SWM-J3BUS015M Type: Standard cord inside panel | Length: 0.15 m | MITSUBISHI equivalent: MR-J3BUS015M
SWM-J3BUS03M Type: Standard cord inside panel | Length: 0.3 m | MITSUBISHI equivalent: MR-J3BUS03M
SWM-J3BUS05M Type: Standard cord inside panel | Length: 0.5 m | MITSUBISHI equivalent: MR-J3BUS05M
SWM-J3BUS1M Type: Standard cord inside panel | Length: 1 m | MITSUBISHI equivalent: MR-J3BUS1M
SWM-J3BUS3M Type: Standard cord inside panel | Length: 3 m | MITSUBISHI equivalent: MR-J3BUS3M
SWM-J3BUS5M-A Type: Standard cable outside panel | Length: 5 m | MITSUBISHI equivalent: MR-J3BUS5M-A
SWM-J3BUS10M-A Type: Standard cable outside panel | Length: 10 m | MITSUBISHI equivalent: MR-J3BUS10M-A
SWM-J3BUS15M-A Type: Standard cable outside panel | Length: 15 m
SWM-J3BUS20M-A Type: Standard cable outside panel | Length: 20 m | MITSUBISHI equivalent: MR-J3BUS20M-A
SWM-J3BUS30M-B Type: Long-distance high-flex cable | Length: 30 m | MITSUBISHI equivalent: MR-J3BUS30M-B
SWM-J3BUS40M-B Type: Long-distance high-flex cable | Length: 40 m
SWM-J3BUS50M-B Type: Long-distance high-flex cable | Length: 50 m | MITSUBISHI equivalent: MR-J3BUS50M-B
Servo CablesSamwon ACT
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWM-J3BUS SSCNET III Optical Fiber Cables for MR-J4-B

Brand Samwon ACT·Servo Cables

Available part numbers (12)

SWM-J3BUS015M, SWM-J3BUS03M, SWM-J3BUS05M, SWM-J3BUS1M, SWM-J3BUS3M, SWM-J3BUS5M-A, SWM-J3BUS10M-A, SWM-J3BUS15M-A, SWM-J3BUS20M-A, SWM-J3BUS30M-B + 2 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SWM-J3BUS015MType: Standard cord inside panel | Length: 0.15 m | MITSUBISHI equivalent: MR-J3BUS015M
SWM-J3BUS03MType: Standard cord inside panel | Length: 0.3 m | MITSUBISHI equivalent: MR-J3BUS03M
SWM-J3BUS05MType: Standard cord inside panel | Length: 0.5 m | MITSUBISHI equivalent: MR-J3BUS05M
SWM-J3BUS1MType: Standard cord inside panel | Length: 1 m | MITSUBISHI equivalent: MR-J3BUS1M
SWM-J3BUS3MType: Standard cord inside panel | Length: 3 m | MITSUBISHI equivalent: MR-J3BUS3M
SWM-J3BUS5M-AType: Standard cable outside panel | Length: 5 m | MITSUBISHI equivalent: MR-J3BUS5M-A
SWM-J3BUS10M-AType: Standard cable outside panel | Length: 10 m | MITSUBISHI equivalent: MR-J3BUS10M-A
SWM-J3BUS15M-AType: Standard cable outside panel | Length: 15 m
SWM-J3BUS20M-AType: Standard cable outside panel | Length: 20 m | MITSUBISHI equivalent: MR-J3BUS20M-A
SWM-J3BUS30M-BType: Long-distance high-flex cable | Length: 30 m | MITSUBISHI equivalent: MR-J3BUS30M-B
SWM-J3BUS40M-BType: Long-distance high-flex cable | Length: 40 m
SWM-J3BUS50M-BType: Long-distance high-flex cable | Length: 50 m | MITSUBISHI equivalent: MR-J3BUS50M-B
