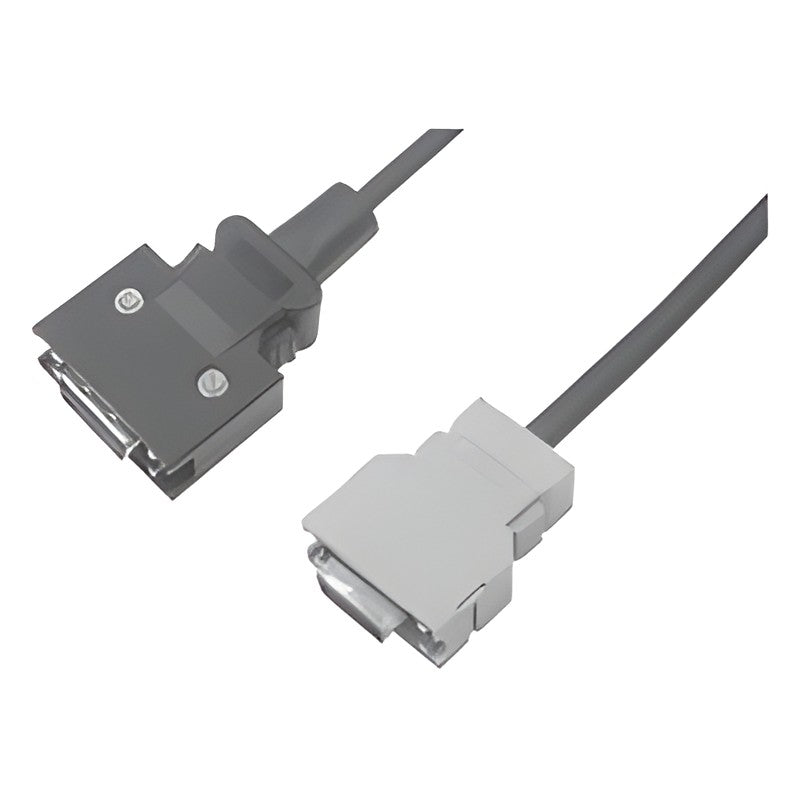

Samwon ACT SWM-J3CDL05M Converter-Drive Unit Protection Coordination Cable

0.5 m protection coordination cable between the converter unit (CN40) and drive unit (CN40A) of MITSUBISHI J3 HA-LP 30 kW and larger servo systems.

Key features

Connects converter unit CN40 and drive unit CN40A of MITSUBISHI J3 HA-LP 30 kW+ systems
Sold as 0.5 m fixed type only
Recommended specification from the MITSUBISHI servo technical documents (some equivalent parts used)

Specifications

Converter unit connector	3M 10120-3000PE, 10320-52F0-008 or equivalent
Drive unit connector	HONDA PCR-S20FS+, PCR-LS20LA1 or equivalent
Fixed cable	UL20276 twisted pair shielded
Length	0.5 m
Cable color	Black
Length tolerance	+50 to +100 mm

SWM-J3CDL05M

Length: 0.5 m | MITSUBISHI equivalent: MR-J3CDL05M

Servo CablesSamwon ACT

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT SWM-J3CDL05M Converter-Drive Unit Protection Coordination Cable

Brand Samwon ACT·Servo Cables

Available part numbers (1)

SWM-J3CDL05M

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
